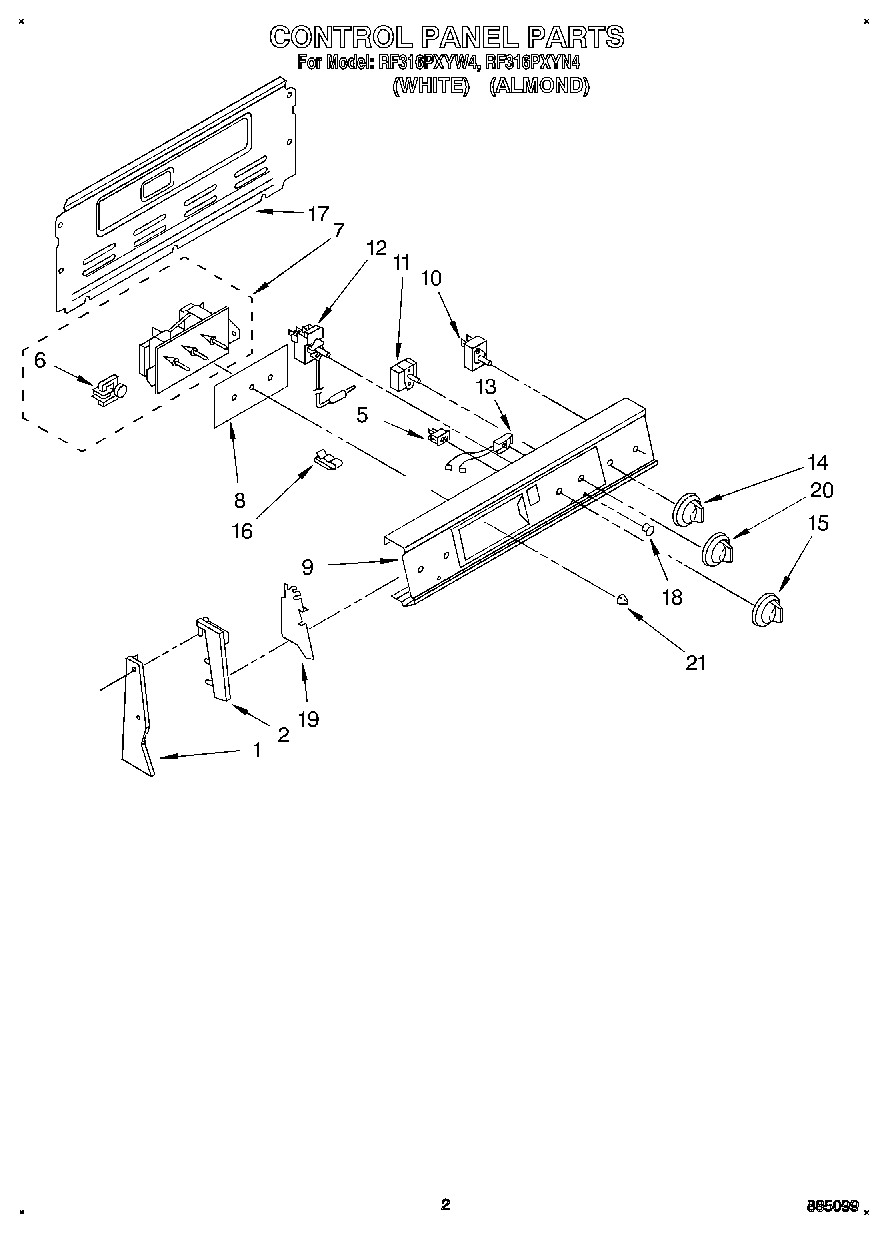

RF316PXYW4 02 – CONTROL PANEL

RF316PXYW4 02 – CONTROL PANEL

Written by

in

RF316PXYW4 02 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2Screw,
2End Cap, R.H. (White/Almond/Gold)
5WP4314961 Whirlpool Lite Switch
6Motor, Timer
7Timer, Control
8Glass, Timer
9Washer
9Panel, Control
10Screw, 8-32 x 3/16 (2)
10WP3148952 Whirlpool Oven Infinite Switch
10WP3148955 Whirlpool Infinite Switch
11Switch, Selector (4 Position)
12WP313808 Whirlpool Screw
12Thermostat, 0ven
13Light, Indicator (250V)
13Light, Indicator (Includes No. 12) (Surface Unit On)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob, Thermostat
16Clip, Tube
17SCREW
17Rear Cover Contr
18Lens, Amber
19Shield (2)
19WP965173 Whirlpool Dishwasher Screw
20Knob, Selector
21WP3169181 Whirlpool Knob
