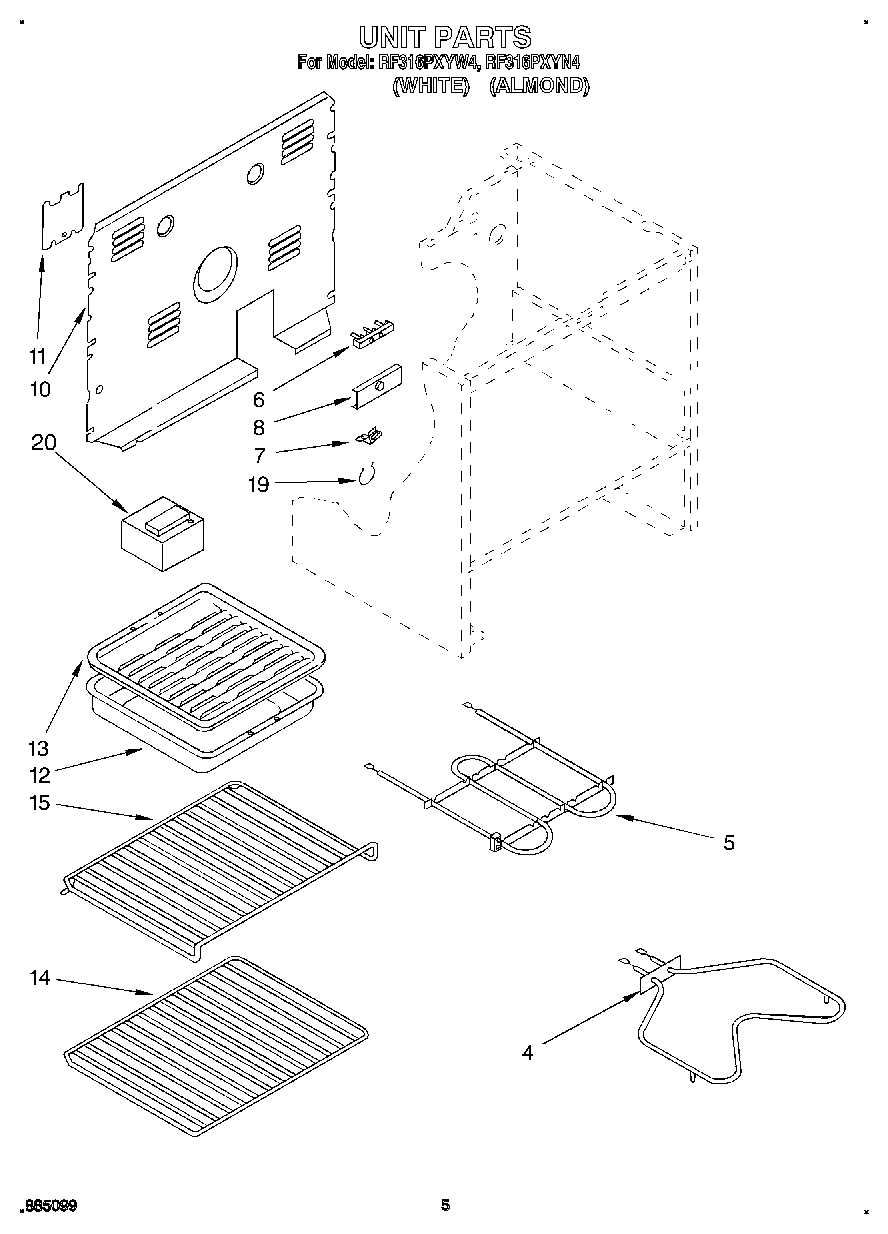

RF316PXYW4 04 – UNIT

Products

Position	Product
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
19	16515 Whirlpool Clip
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	340184 Whirlpool Screw
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	WA906B Whirlpool Cooktop Glass Scraper
20	Block, Balance
