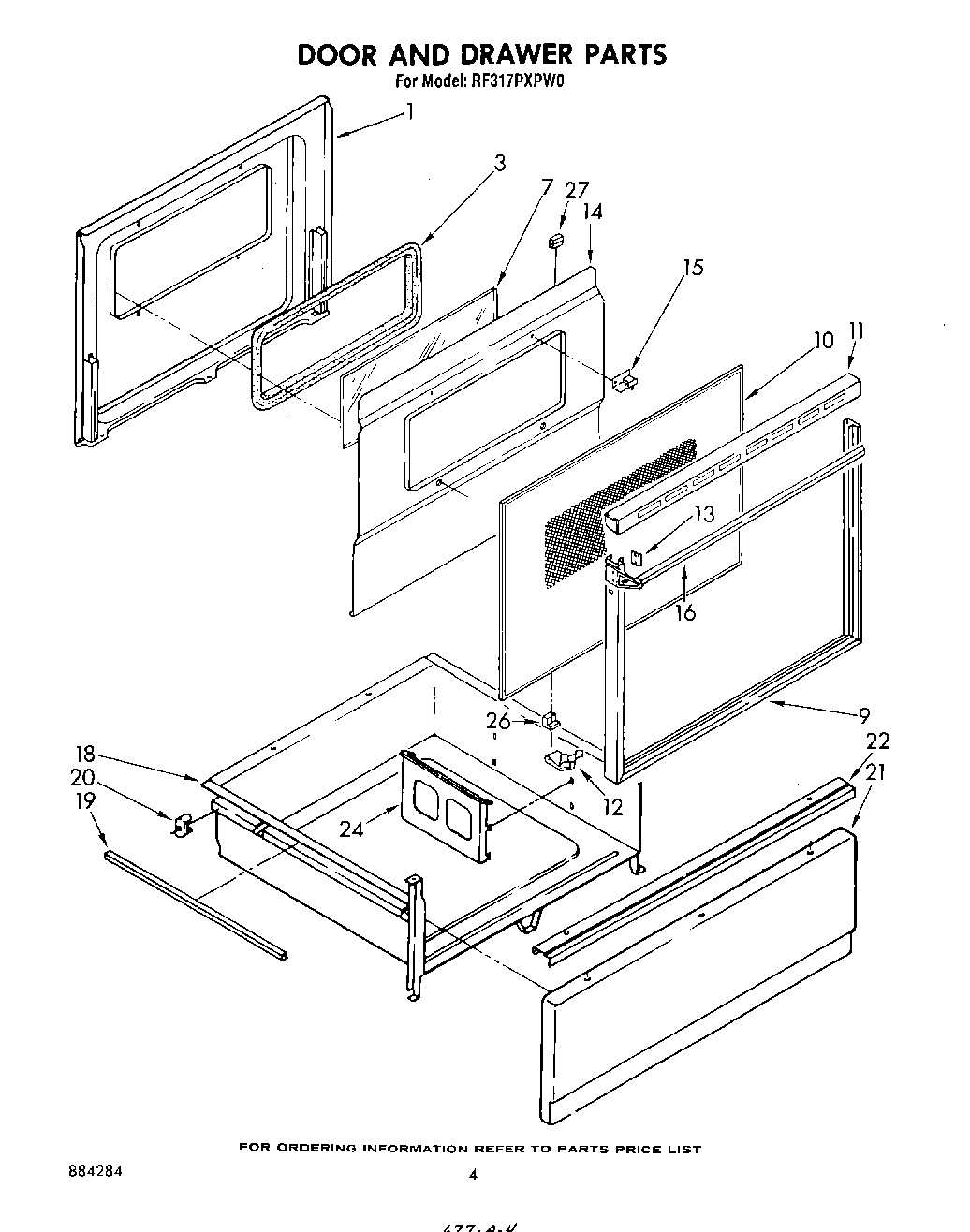

RF317PXPW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
3	seal, pano glass
7	glass, inner 30“
9	frame, door 30“
10	Glass, Outer
11	Top, Door Frame
12	clip, glass (10)
13	Clip (2)
14	baffle, insulation
14	WP90296 Whirlpool Clip
15	Spacer (4)
16	Handle, Oven Door
16	WP355515 Whirlpool Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Platinum)
21	Panel, Drawer (Toast)
21	Panel Drawer (Harvest Gold)
22	WP488627 Whirlpool Refrigerator Screw
22	Handle, Drawer
24	Rack, Literature
26	Channel, Rubber (4)
27	hold down, glass (2)
