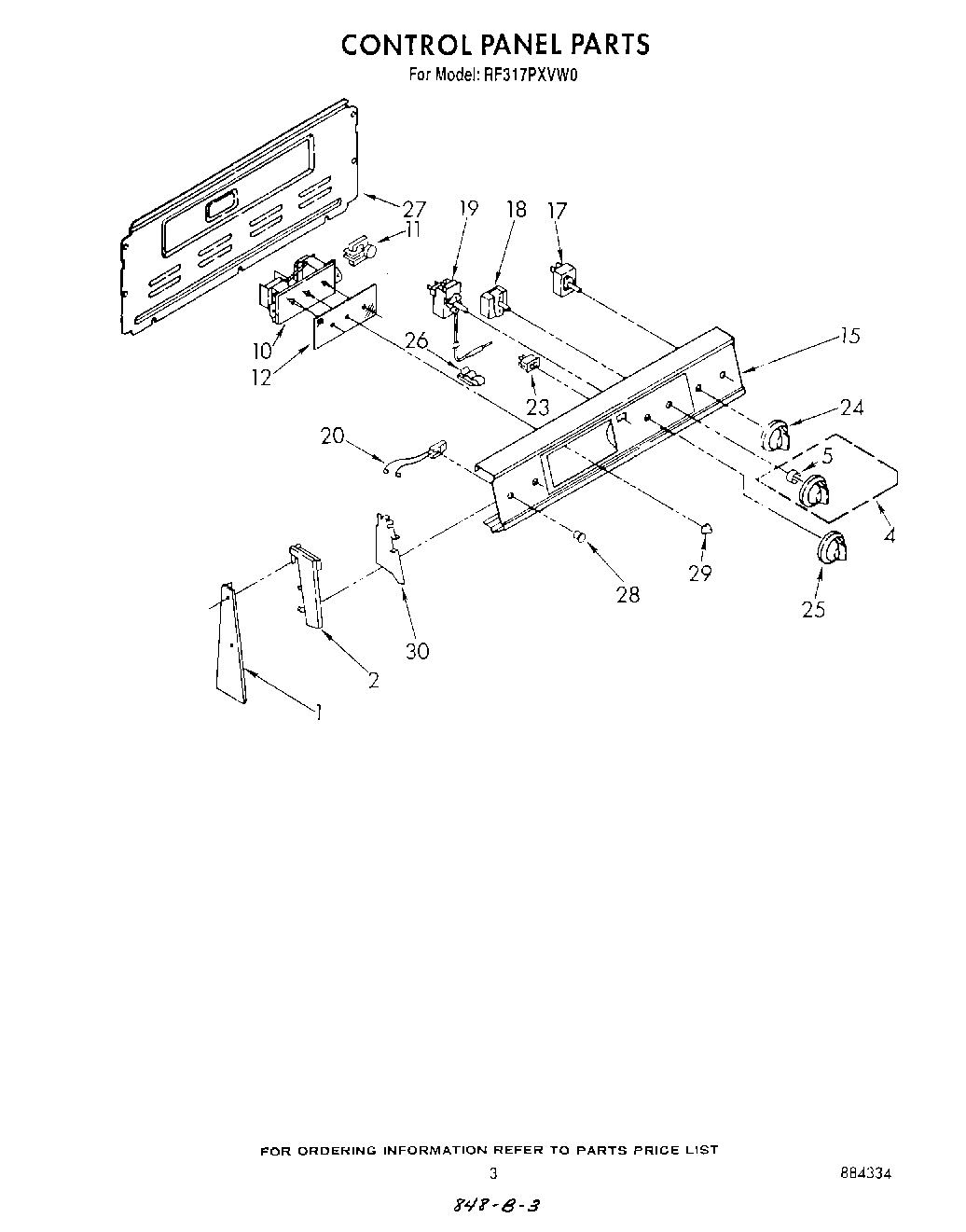

RF317PXVG0 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	End Trim L.H.
1	Washer
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
4	Knob, Control
5	WP688805 Whirlpool Spring Clip
10	Timer, Clock (Includes No.6)
11	Motor, Timer
12	Glass, Timer
15	Washer
15	Panel, Control
17	WP3148952 Whirlpool Oven Infinite Switch
17	SWITCH-INF
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (4 Position)
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
20	Light, Indicator (250V)
20	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
24	Knob, Control (4)
25	Knob, Control (4)
25	Screw
26	Clip, Tube
27	Harness-Conduit Asm.
27	SCREW
28	Lens, Amber
29	WP3169181 Whirlpool Knob
29	Spring (3)
30	WP965173 Whirlpool Dishwasher Screw
30	Shield (2)
