RF317PXWN1 02 – COOK TOP

Products

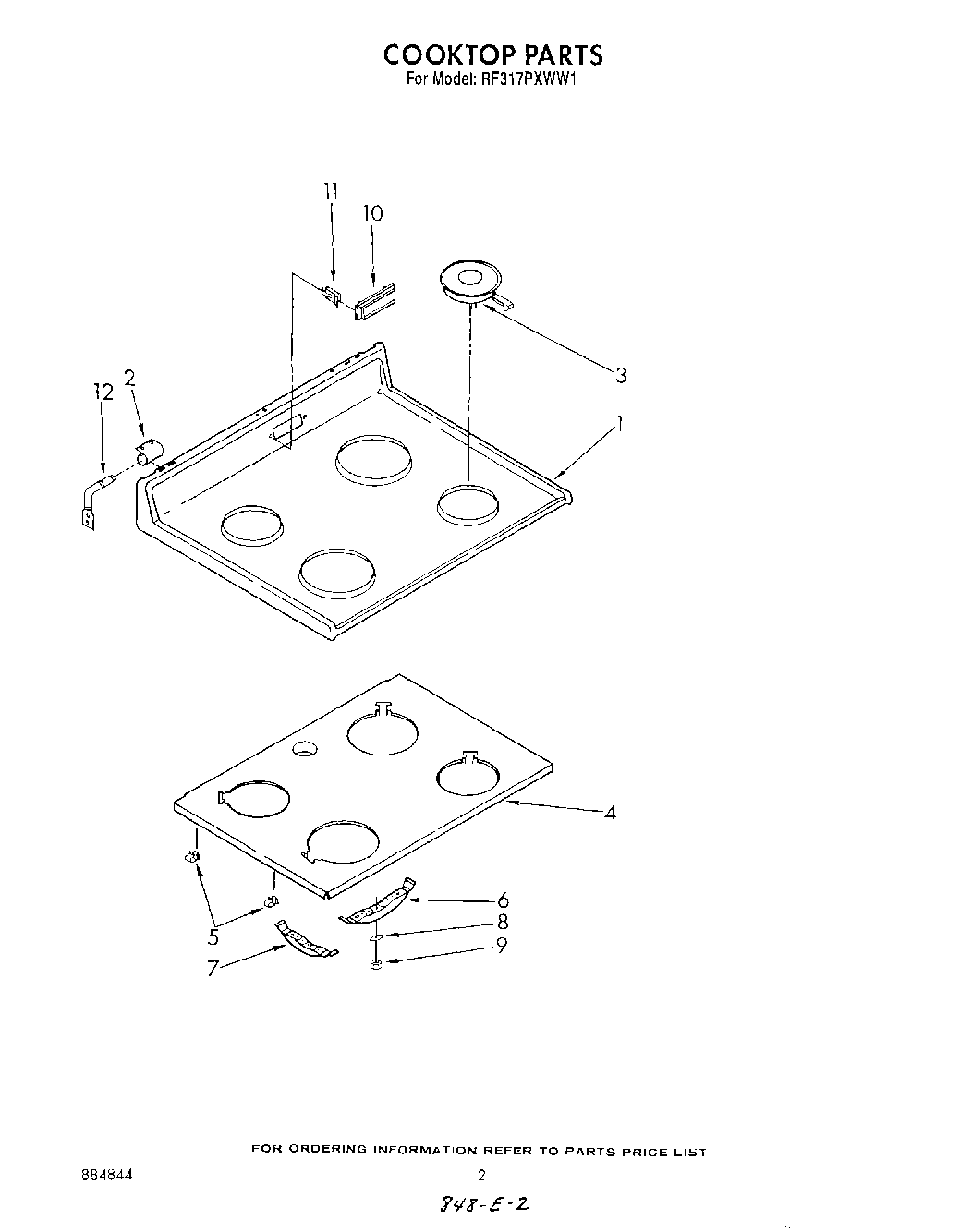

PositionProduct
1Cooktop (Almond)
1Cooktop (White)
2SCREW
2Bracket, Cooktop (2)
3WP3147132 Whirlpool Surface Element
3WP3147131 Whirlpool Surface Element
4Cooktop Support
5Clip
6bracket, element (1.5 KW)
7bracket, element (2.0 KW)
8Spring, Leaf
9hex nut (8)
10Cover, Vent (White)
10cover, vent (almond)
11Clip, Vent Cover
12Pin, Cooktop (2)
