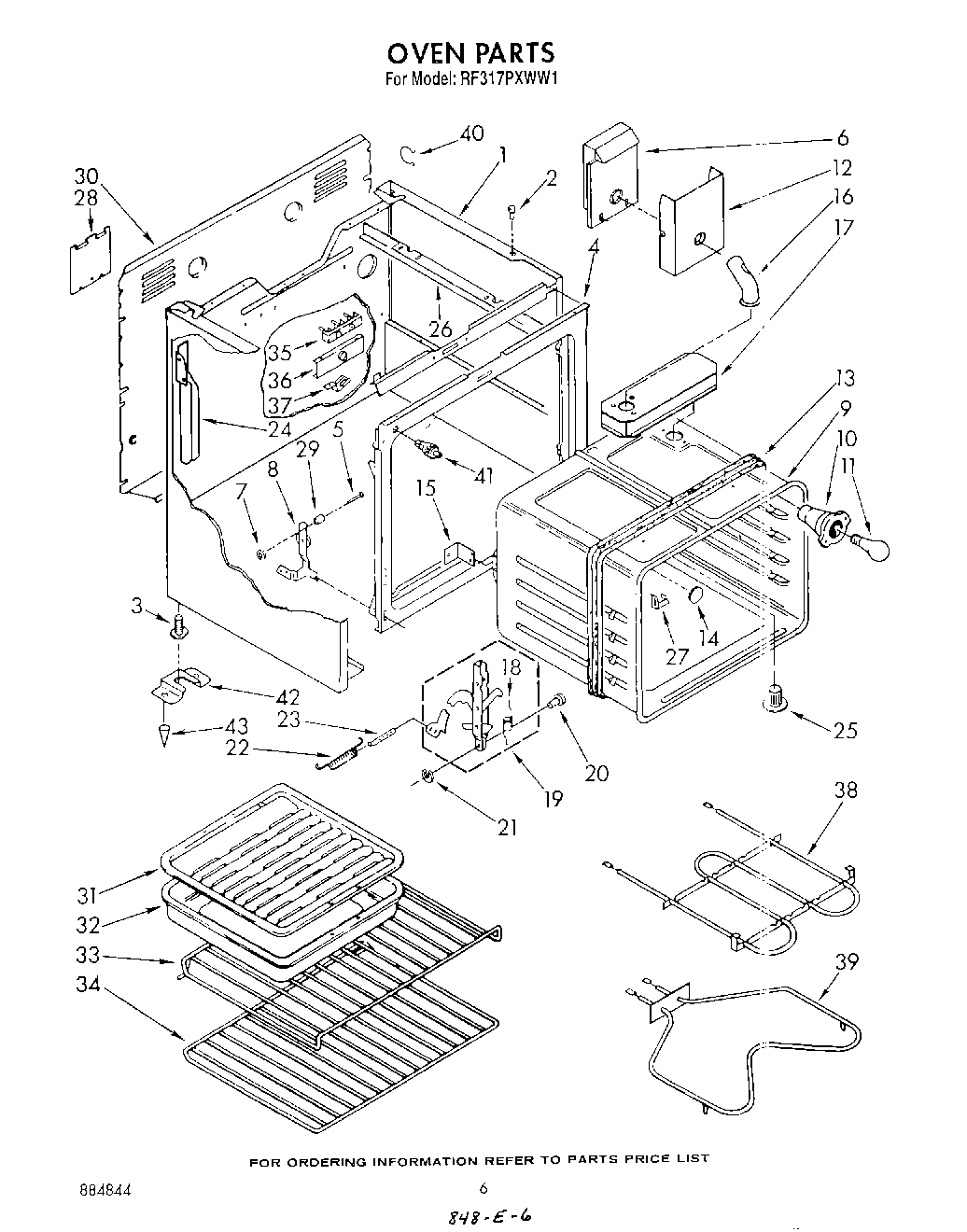

RF317PXWW1 05 – OVEN

Products

Position	Product
	Screw (10-12 x .875)
	WPL 312318
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	WP488627 Whirlpool Refrigerator Screw
6	Vent, Box
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Shield, Vent
12	Screw (2)
13	Heat Seal
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	WP308685 Whirlpool Microwave Screw
17	Box, Vent
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Eliminator, Smoke
26	Support, Chassis
26	panel, top (screw, 10a x 3/8 (3))
27	98005642 Whirlpool Clip
28	Cover, Service
29	Snubber, Door (2)
30	Cover, Rear
31	4396923 Whirlpool Broil Pan Set Gray Porcelain
33	WPL 308172
34	WPL 308173
35	WP8203546 Whirlpool Terminal Block
35	WP112432 Whirlpool Nut Assembly
35	Screw, (2) 10-16 x 1
36	SCREW
36	Bracket, Service
37	WPL 308498
37	Clip, Ground Wire
38	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
39	ELMNT-BAKE
40	16515 Whirlpool Clip
41	Switch, Door
42	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
42	Screw
43	Anchor, Plastic
