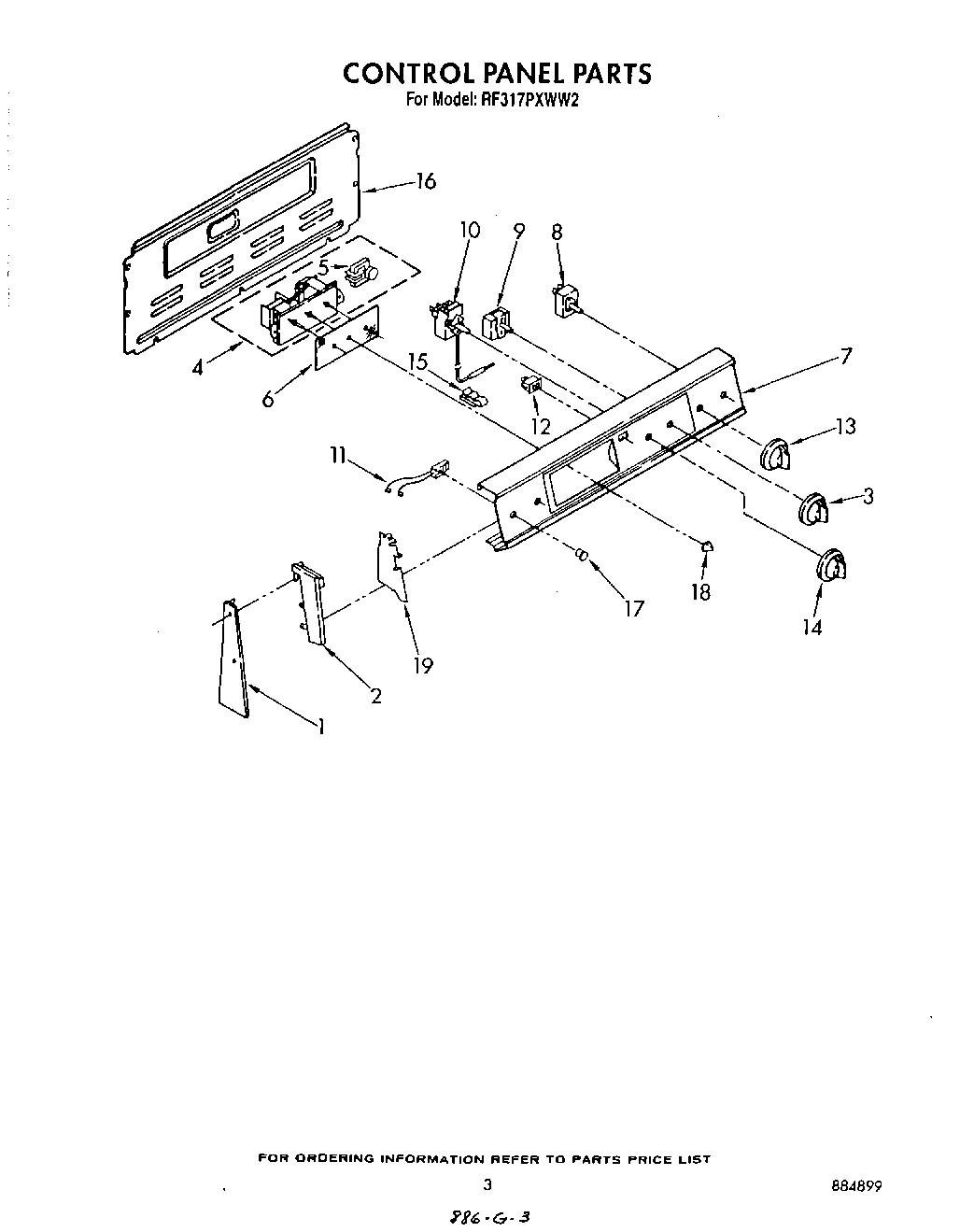

RF317PXWW2 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	End Trim L.H.
1	Washer
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Knob, Control (Selector)
4	Timer, Clock (Includes No.6)
5	Motor, Timer
6	Glass, Timer
7	Panel, Control
7	Washer
8	WP486579 Whirlpool Air Conditioner Screw
8	SWITCH-INF
8	WP3148952 Whirlpool Oven Infinite Switch
9	Switch, Selector (4 Position)
10	Thermostat, Oven
10	Thermostat, Oven (Alt.)
10	Thermostat, Oven (Alt.)
11	Light, Indicator (250V)
11	Light, Indicator (Surface Unit (2))
12	WP4314961 Whirlpool Lite Switch
13	WP3149983 Whirlpool Knob
14	Knob, Temperature
15	Clip, Tube
16	SCREW
16	Harness-Conduit Asm.
17	Lens, Amber
18	Spring (3)
18	WP3169181 Whirlpool Knob
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
