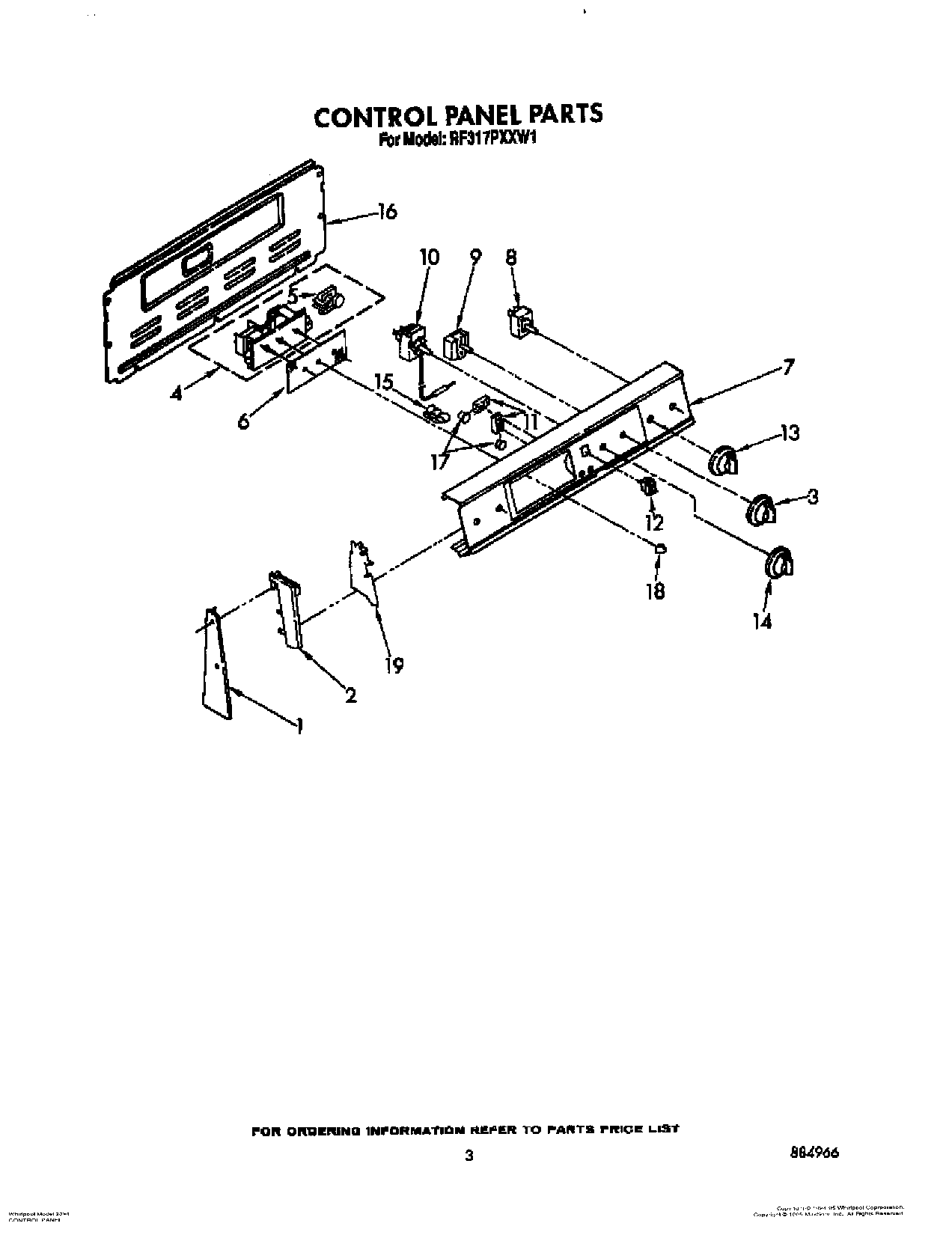

RF317PXXN1 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32×1“
1	Screw 10-32×7/16“
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
3	Knob, Control (Selector)
4	Timer, Clock (Includes No.6)
5	Motor, Timer
6	Glass, Timer
7	Panel, Control
7	Washer
8	WP3148952 Whirlpool Oven Infinite Switch
8	WP486579 Whirlpool Air Conditioner Screw
8	SWITCH-INF
9	Switch, Selector (4 Position)
10	Thermostat, Oven
10	Thermostat, Oven (Alt.)
10	Thermostat, Oven (Alt.)
11	Light, Indicator (250V)
11	Light, Indicator (Surface Unit On)
12	WP4314961 Whirlpool Lite Switch
13	WP3149983 Whirlpool Knob
14	Knob, Temperature
15	Clip, Tube
16	SCREW
16	Harness-Conduit Asm.
17	Lens, Amber
18	WP3169181 Whirlpool Knob
18	Spring (3)
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
