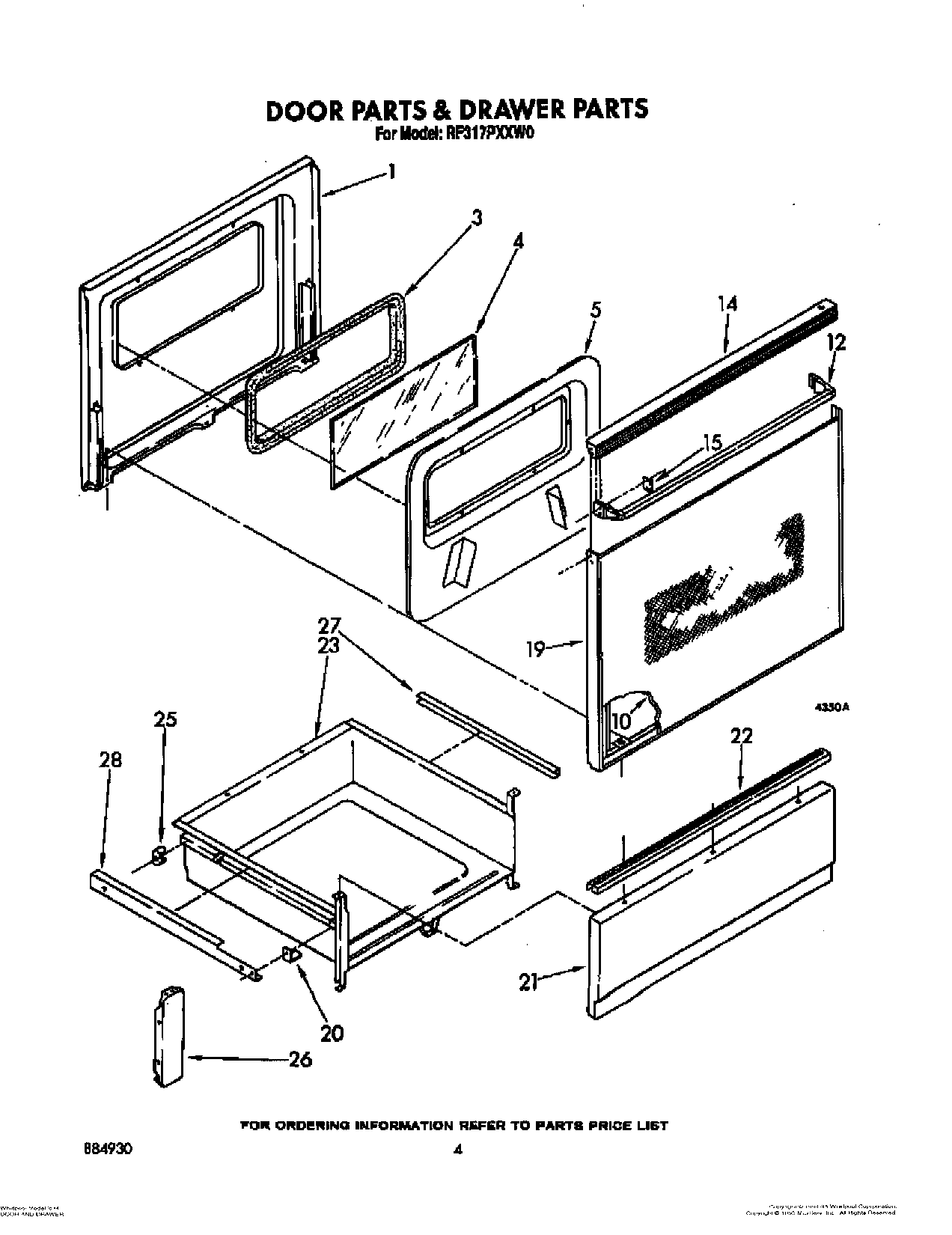

RF317PXXW0 04 – DOOR AND DRAWER, LIT/OPTIONAL

RF317PXXW0 04 – DOOR AND DRAWER, LIT/OPTIONAL

Written by

in

RF317PXXW0 04 – DOOR AND DRAWER, LIT/OPTIONAL

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
WPL LIT3149507
WPL LIT3150400
WPL LIT884930
Instructions, Installation
WPL LIT3150266
WPL LIT3181472
1Liner, Door
1Screw (3)
3Seal, Door
4Glass, Inner
5Screw
5Retainer, Insulation
10Glass, Panel (Black Model)
12Handle, Oven Door
12WP355515 Whirlpool Screw
14Top, Door (Black Model)
15Clip, Mtg (2)
19Frame, Door
20Glide, Front (2)
21Panel Drawer (White)
21Panel, Drawer (Almond)
22Handle, Drawer
22WP488627 Whirlpool Refrigerator Screw
23Drawer, Utility
25Screw, 10A x 1/2 (2) (Black)
25Glide, Rear (2)
26Bracket, Mounting (2)
27Protector, Drawer (2)
28Rail L.H. (Includes Illus. 3)
28paint, spray 13 oz. (coffee)
281
28Wire (14 Ga. 200 c Brown)
28Touch-Up C
28Enamel, Coffee (1 Qt. Uncut)
28dressing, element
28Golden Harvest
28Rail R.H. (Includes Illus. 3)
28Leveler (Thinner) (2oz.)
28Grease
2818 Ga. 80~c Rating (Red)
28Wire (12 Ga. 150 c Black)
28Wire (14 Ga. 150 c Yellow)
28350942 Whirlpool Spray Paint
28WPL 72112
28Platinum (Uncut)
28Enamal, Toast (1 Qt. Uncut)
28Paint, Spray (13 Oz.) (Platinum)
28Toast
28Golden Harvest (Uncut)
28SCREW
2872113 Whirlpool Touch-Up Paint
2872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
28Almond (Uncut)
28WP72107 Whirlpool Touchup
28799344 Whirlpool Refrigerator Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350930 Whirlpool White Spray Paint
28WPL 799832
28Wire (14 Ga. 150 c Orange)
28Wire (14 Ga. 150 c Green)
28Wire (14 Ga. 150 c Brown)
28Wire (14 Ga. 150 c Blue)
28242831 Whirlpool Oven Wire
28Paint, Spray 13 Oz. (Avocado)
28Paint, Touch-Up 1/2 Oz. (Coffee)
2872109 Whirlpool Dacor Avocado Touch-Up Paint
28285006 Whirlpool Spray
28Wire, 25“ Roll (White 14 GA.)
28Wire, 25` Roll (Red 14 Ga.)
28Wire, 25` Roll (Black 14 Ga.)
28FOIL, ALUMINUM OVEN (18“ X 25 )
28WPW10208653 Whirlpool Insulation
28350956 Whirlpool Spray Assembly
