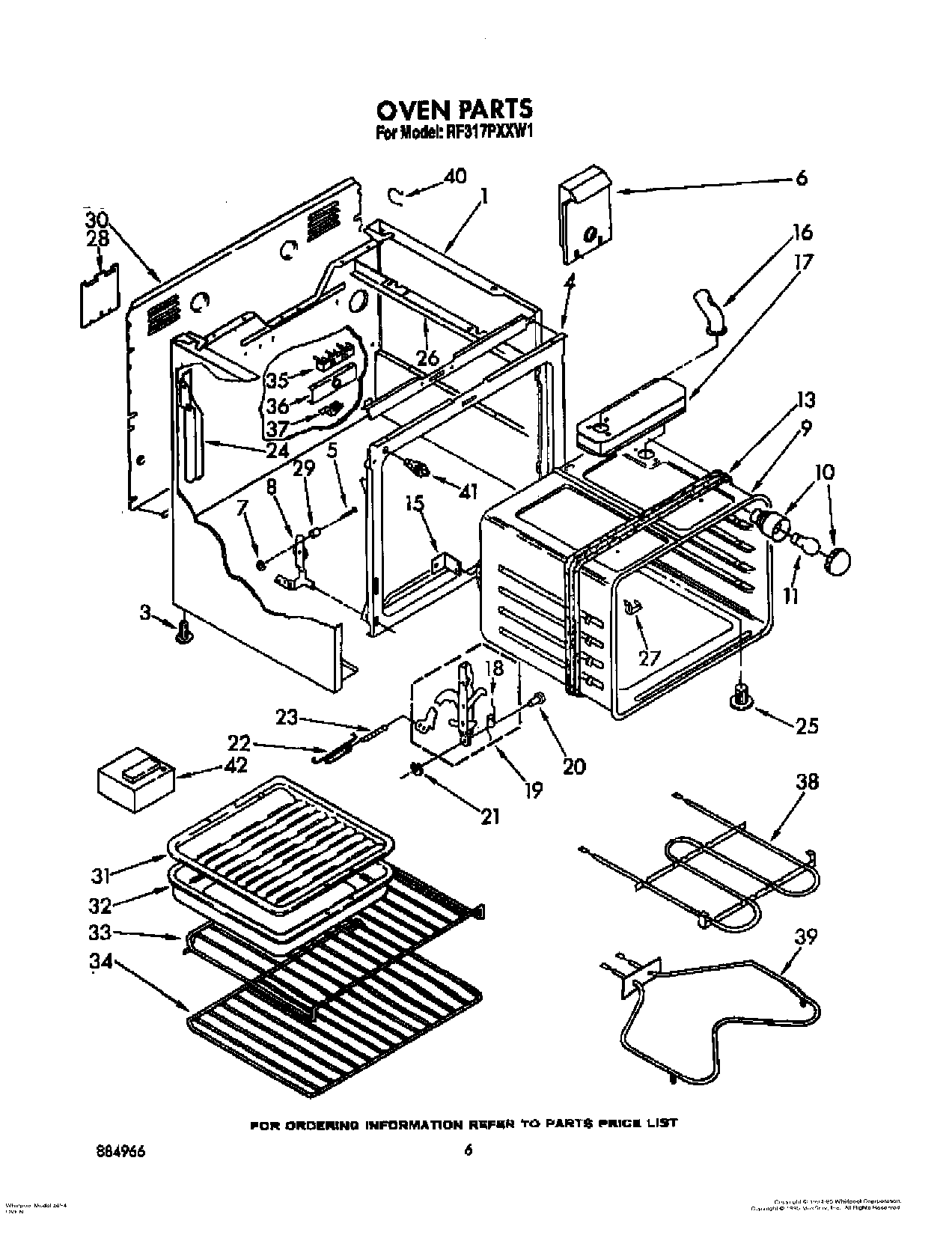

RF317PXXW1 05 – OVEN

Products

Position	Product
	Screw (2)
1	Main Chassis (White)
1	Main Chassis (Almond)
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Screw (Top)
4	Screw (3)
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Vent, Box
6	WP488627 Whirlpool Refrigerator Screw
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Conv)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
13	Heat Seal
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
17	Box, Vent
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
25	Eliminator, Smoke
26	WP488729 Whirlpool Refrigerator Door Screw
26	Support, Chassis
27	98005642 Whirlpool Clip
28	Cover, Service
29	Snubber, Door (2)
30	Cover, Rear
31	4396923 Whirlpool Broil Pan Set Gray Porcelain
33	WPL 308172
34	WPL 308173
35	WP8203546 Whirlpool Terminal Block
35	Screw, (2) 10-16 x 1
35	WP112432 Whirlpool Nut Assembly
36	Bracket, Service
36	SCREW
37	WPL 308498
37	Clip, Ground Wire
38	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
39	ELMNT-BAKE
40	16515 Whirlpool Clip
41	Switch, Door
42	Block, Balance
42	Insulation, Wrap
42	340184 Whirlpool Screw
42	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
