RF317PXXW2 04 – DOOR AND DRAWER, LIT/OPTIONAL

RF317PXXW2 04 – DOOR AND DRAWER, LIT/OPTIONAL

Written by

in

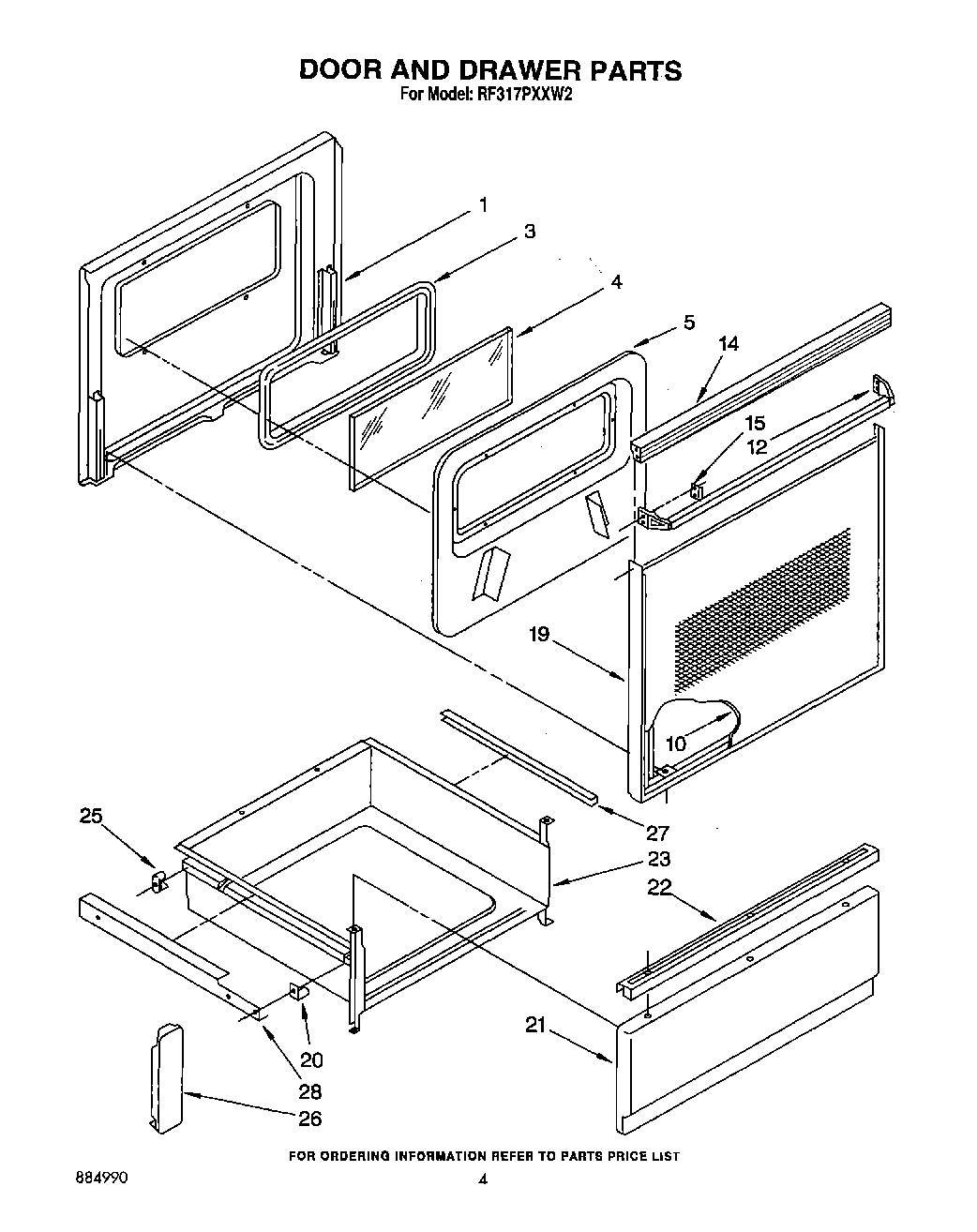

RF317PXXW2 04 – DOOR AND DRAWER, LIT/OPTIONAL

Products

PositionProduct
WPL LIT884990
WPL LIT3150297
WPL LIT3181472
WPL LIT3147395
WPL LIT3149507
1Liner, Door
1Screw (3)
3Seal, Door
4Glass, Inner
5Screw
5Retainer, Insulation
10Glass, Panel (Black Model)
12Handle, Oven Door
12WP355515 Whirlpool Screw
14Top, Door (Black Model)
15Clip, Mtg (2)
19Frame, Door
20Glide, Front (2)
21Panel Drawer (White)
21Panel, Drawer (Almond)
22WP488627 Whirlpool Refrigerator Screw
22Handle, Drawer
23Drawer, Utility
25Screw, 10A x 1/2 (2) (Black)
25Glide, Rear (2)
26Bracket, Mounting (2)
27Protector, Drawer (2)
28Wire (12 Ga. 150 c Black)
281
28Wire (14 Ga. 200 c Brown)
2818 Ga. 80~c Rating (Red)
28Paint, Touch-Up 1/2 Oz. (Coffee)
28Leveler (Thinner) (2oz.)
28Grease
28Rail L.H. (Includes Illus. 3)
28Rail R.H. (Includes Illus. 3)
28Golden Harvest
28Touch-Up C
28dressing, element
28Wire (14 Ga. 150 c Yellow)
28Wire (14 Ga. 150 c Orange)
28WPL 72112
28Platinum (Uncut)
28Enamal, Toast (1 Qt. Uncut)
28Paint, Spray (13 Oz.) (Platinum)
28Toast
28Golden Harvest (Uncut)
28SCREW
2872113 Whirlpool Touch-Up Paint
2872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
28Almond (Uncut)
28WP72107 Whirlpool Touchup
28799344 Whirlpool Refrigerator Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350956 Whirlpool Spray Assembly
28350942 Whirlpool Spray Paint
28511873 Whirlpool Refrigerator Paint
28Wire (14 Ga. 150 c Green)
28Wire (14 Ga. 150 c Brown)
28Wire (14 Ga. 150 c Blue)
28242831 Whirlpool Oven Wire
28Paint, Spray 13 Oz. (Avocado)
28paint, spray 13 oz. (coffee)
2872109 Whirlpool Dacor Avocado Touch-Up Paint
28285006 Whirlpool Spray
28Wire, 25“ Roll (White 14 GA.)
28Wire, 25` Roll (Red 14 Ga.)
28Wire, 25` Roll (Black 14 Ga.)
28FOIL, ALUMINUM OVEN (18“ X 25 )
28WPW10208653 Whirlpool Insulation
28WPL 799832
28350930 Whirlpool White Spray Paint
