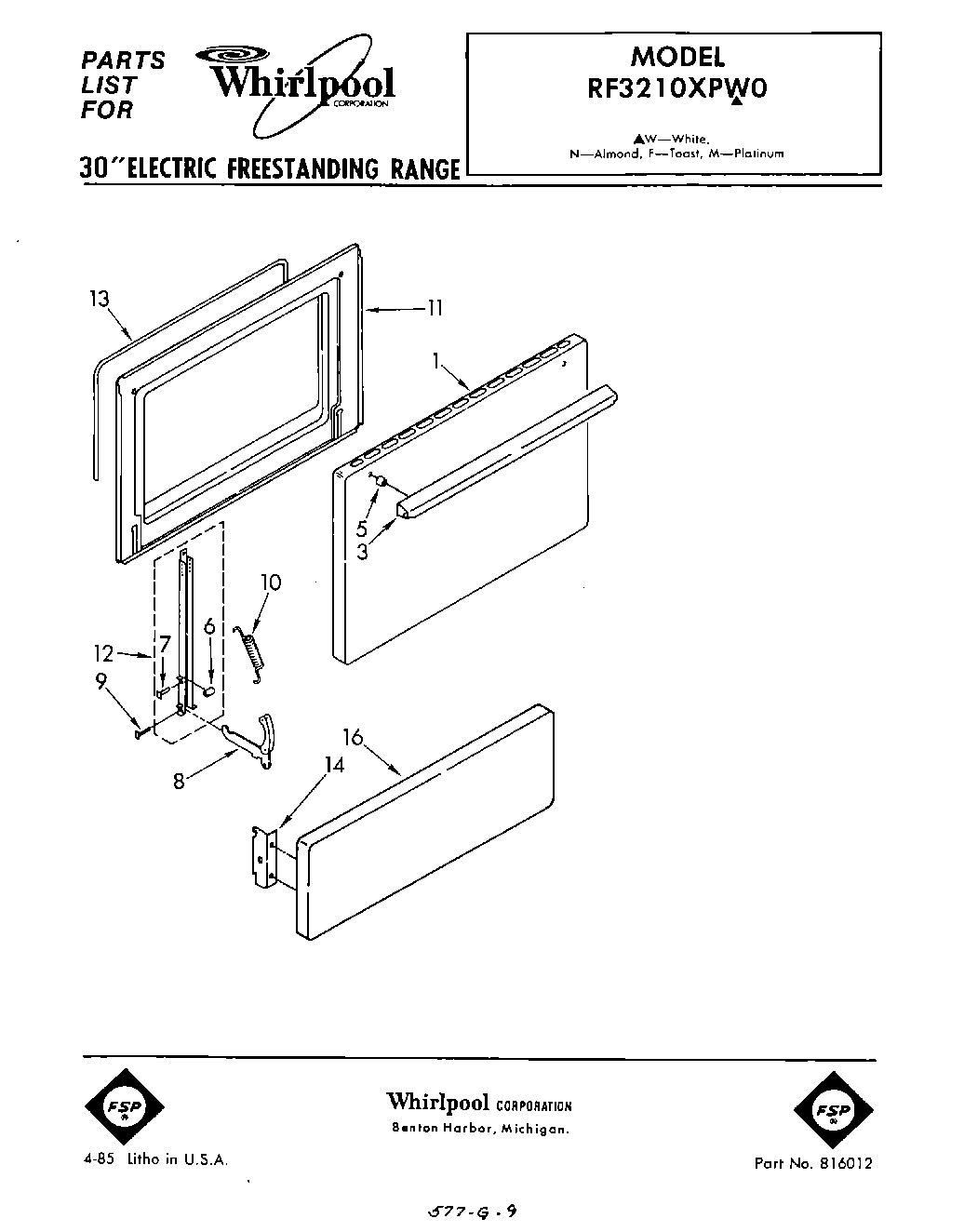

RF3210XPW0 01 – SECTION

Products

PositionProduct
1Panel, Oven Door (White)
1Panel, Oven Door (Almond)
1Panel, Oven Door (Platinum)
1Panel, Oven Door (Screw 10-24 x 1-1/4 (2))
1Panel, Oven Door (Toast)
3Door Handle Assembly
5Spacer, Handle (2)
6Roller, Stop (2)
7Rivet (2)
8Arm Assembly (2)
9Pin, Hinge (2)
10Spring, Door (2)
11Liner, Door
12Washer (2)
12Screw 10-24 x 1/2
12Channel Assembly
13Gasket, Door (Alternate)
13Gasket, Door (Alternate)
14Bracket, Panel ((R.H.))
14Screw, 10-24 x 1/2 (3)
14Bracket, Panel ((L.H.))
16Panel, Lower (White)
16Panel, Lower (Almond)
16Panel, Lower (Platinum)
16Panel, Lower (Toast)
