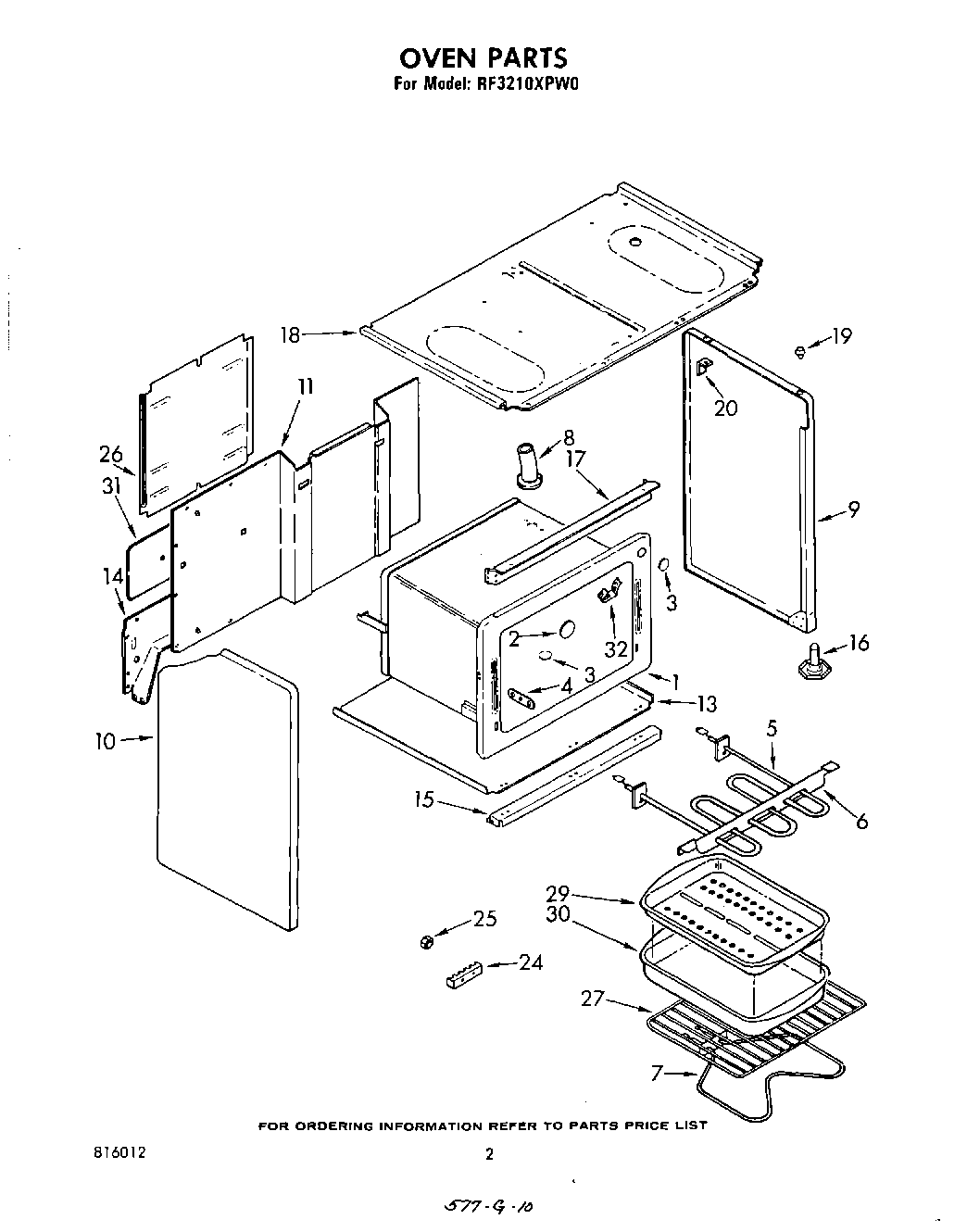

| 1 | Oven (Continous Clean) |
| 2 | Cover, Light Hole |
| 3 | Button, Plug |
| 4 | Bracket Thermo Bulb |
| 5 | Unit, Broil |
| 6 | Hanger, Broil Unit |
| 7 | WP865940 Whirlpool Bake Element |
| 7 | Unit Bake (Screw, 10-24 x 1/2 (2)) |
| 8 | Screw, 10-24 x 3/8 (2) |
| 8 | Tube, Oven Vent |
| 9 | End Panel, R.H. (Platinum) |
| 9 | End Panel, R.H. (Almond) |
| 9 | End Panel, R.H. (White) |
| 9 | End Panel, R.H. (Toast) |
| 10 | End Panel, L.H. (Platinum) |
| 10 | End Panel, L.H. (Almond) |
| 10 | End Panel, L.H. (White) |
| 10 | End Panel, L.H. (Screw (2)) |
| 10 | End Panel, L.H. (Toast) |
| 11 | Back, Range |
| 13 | Panel, Weldment (Bottom) |
| 14 | Gusset, Rear (L.H.) |
| 14 | Gusset, Rear (R.H.) |
| 15 | Channel, Oven Support |
| 16 | Leg Leveler (4) |
| 17 | Bracket, Cooktop |
| 18 | Burner Box |
| 19 | Bumper, Cooktop (4) |
| 20 | Gusset, Backguard (2) |
| 24 | WP8203546 Whirlpool Terminal Block |
| 25 | Hex Nut, 10-32 (6) |
| 26 | Cover Wiring, Low |
| 26 | Washer (3) |
| 26 | Screw, 10-24 x 1/2 (3) |
| 27 | WPL 865983 |
| 30 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 31 | WPL 834649 |
| 31 | WPL 877969 |
| 32 | 98005642 Whirlpool Clip |
