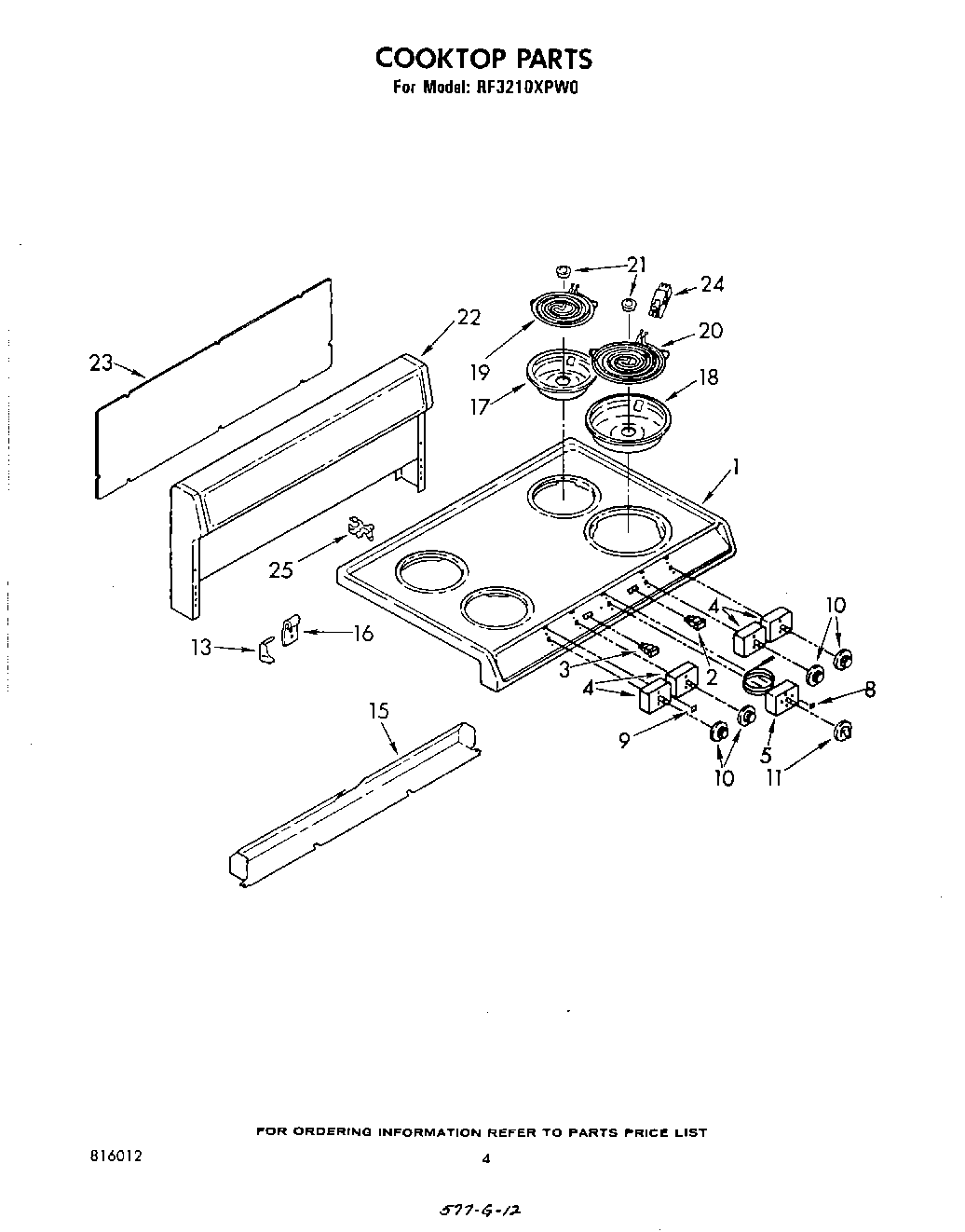

RF3210XPW0 03 – SECTION

Products

PositionProduct
WPL LIT877952
WPL LIT816009
WPL LIT865621
WPL LIT816012
WPL LIT877987
1Cooktop (Platinum)
1Cooktop (Toast)
1Cooktop (White)
1Cooktop (Almond)
2Light, Signal (250V) (Surface Unit)
3Light, Signal (Oven) (250V)
4W10900107 Whirlpool Oven Surface Element Switch
4WP486579 Whirlpool Air Conditioner Screw
5Screw, 8-32 x 3/16 (2)
5Thermostat, Oven
8Indicator, Oven Selector (1)
9Indicator, Surface Unit (4)
10Knob & Skirt Assembly (Surface Unit) (4)
11Knob & Skirt Assembly (Thermostat) (1)
13Hinge Pin, Cooktop (R.H.)
13Hinge Pin, Cooktop (L.H.)
15Shield, Control
16Retainer, Hinge Pin (2)
16Screw 10-24 x 1/2
17WPW10196406 Whirlpool 6" Chrome Drip Bowl
18DRIP BOWL 8" W/HOLE CHROME
19WP660532 Whirlpool Oven Surface Element
20WP660533 Whirlpool Oven 8" Surface Element
21WPL 868522
22WPL 868387
22WPL 816003
22WPL 816004
22WPL 868384
23WPL 868396
23Screw, 10-24 x 1/2 (3)
24BURNER RECEPTACLE KIT
24WPL 877978
25WPL 868136
25WPL 877979
25350930 Whirlpool White Spray Paint
25242831 Whirlpool Oven Wire
25Grease
25Enamel, New Avocado (1 Qt. Uncut)
25Wire, 25` Roll (Red 14 Ga.)
25Wire, 25` Roll (Black 14 Ga.)
25FOIL, ALUMINUM OVEN (18“ X 25 )
25WPW10208653 Whirlpool Insulation
25WPL 799832
25511873 Whirlpool Refrigerator Paint
25350942 Whirlpool Spray Paint
25Golden Harvest (Uncut)
25Golden Harvest
2572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
25Almond (Uncut)
25Leveler (Thinner)
25WP72107 Whirlpool Touchup
25799344 Whirlpool Refrigerator Paint
2572017 Whirlpool Appliance Touch-Up Paint White
25Wire, 25“ Roll (White 14 GA.)
25285006 Whirlpool Spray
25Enamel, Coffee (1 Qt. Uncut)
251
25Wire (14 Ga. 200 c Brown)
2518 Ga. 80~c Rating (Red)
25Wire (12 Ga. 150 c Black)
25Wire (14 Ga. 150 c Yellow)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Green)
25Wire (14 Ga. 150 c Brown)
25Wire (14 Ga. 150 c Blue)
25Touch-Up Oven (1 Oz.)
25Paint, Spray 13 Oz. (Avocado)
25paint, spray 13 oz. (coffee)
25Paint, Touch-Up 1/2 Oz. (Coffee)
2572109 Whirlpool Dacor Avocado Touch-Up Paint
25350956 Whirlpool Spray Assembly
