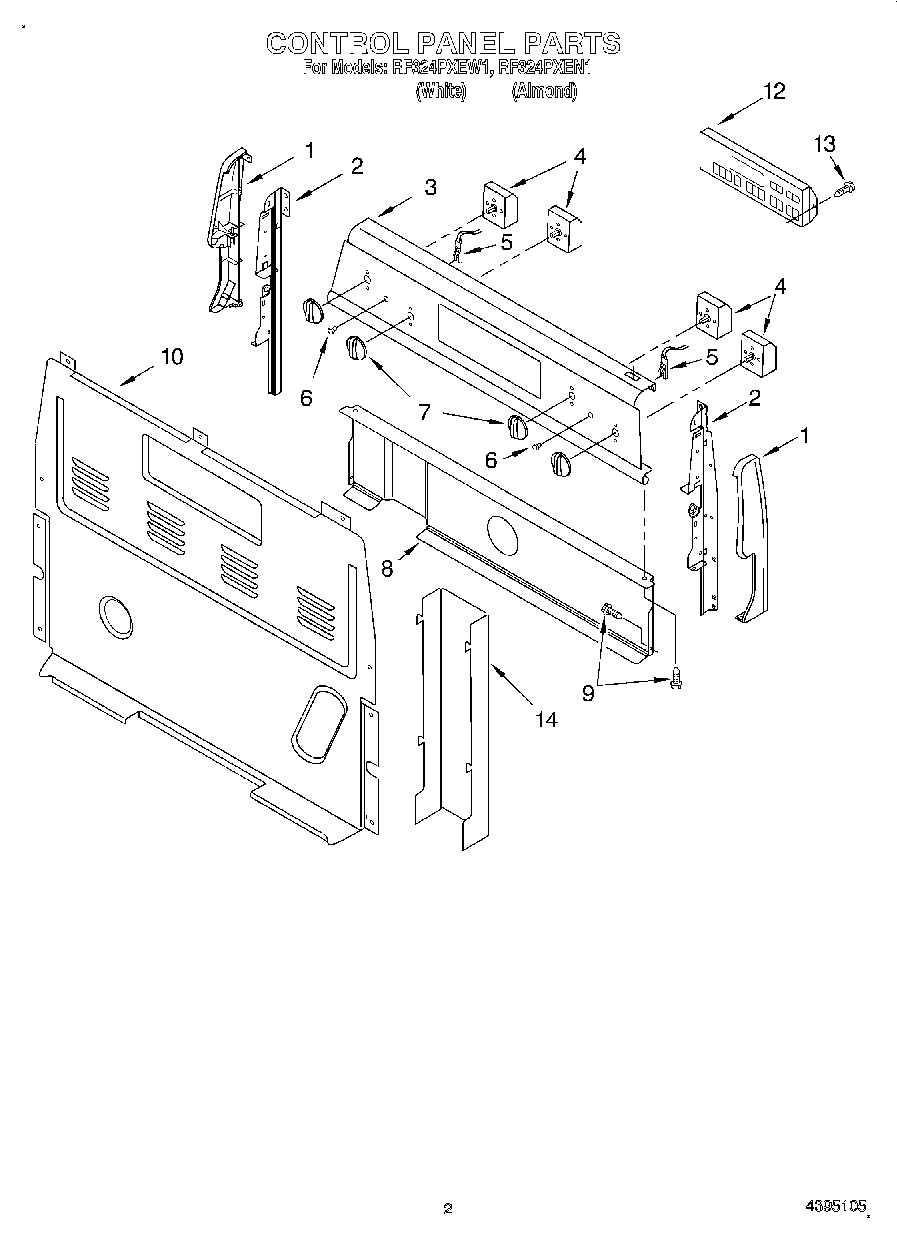

RF324PXEN1 02 – CONTROL PANEL

RF324PXEN1 02 – CONTROL PANEL

Written by

in

RF324PXEN1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4Switch, Infinite (Screw (8))
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range
14WPW10326122 Whirlpool Black Cover
14SCREW
