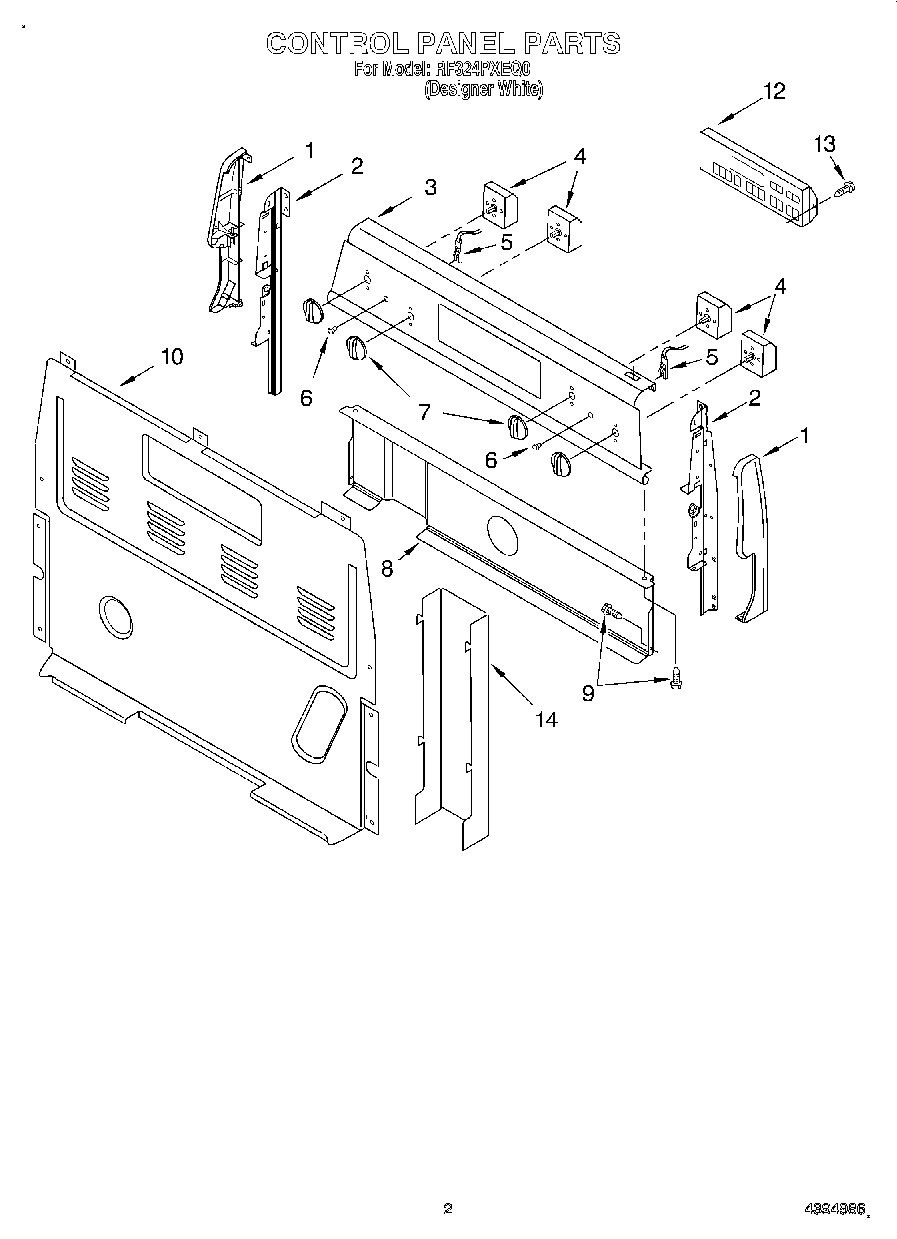

RF324PXEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
4Switch, Infinite (Screw (8))
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range
14WPW10326122 Whirlpool Black Cover
14SCREW
