RF324PXEW1 05 – DOOR, LIT/OPTIONAL

RF324PXEW1 05 – DOOR, LIT/OPTIONAL

Written by

in

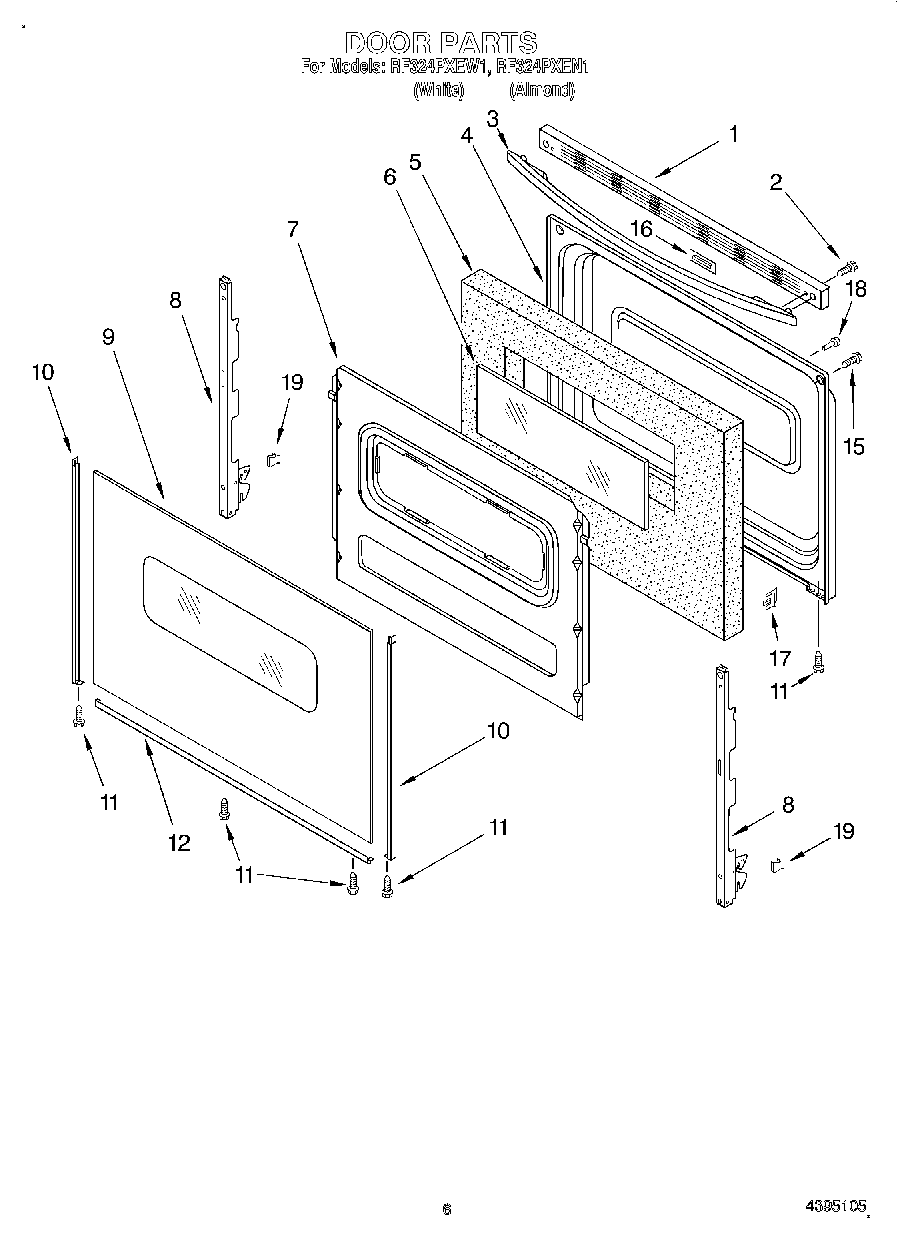

RF324PXEW1 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	3184020 Whirlpool Oven Wire
	3400964 Whirlpool Oven Clip
	WPL 8053721
	Literature (Installation, Instructions (Template))
	Harness, Wire (Door Switch)
	WPL LIT3196274
	WP3196154 Whirlpool Screw Assembly
	814381 Whirlpool Pin
	WPL 3195194
	WPL LIT3195944
	WPL LIT3196100
	Safer Cooking Tips
1	Trim, Top (Black)
2	WP179051 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	WP9758164 Whirlpool Door Glass
7	9761500 Whirlpool Oven Retainer
8	Hinge, Door (2)
8	WP3196175 Whirlpool Screw
9	WP9762477 Whirlpool Glass Door
11	W10491985 Whirlpool Screw
12	8184858 Whirlpool Door Trim
15	WP3196164 Whirlpool Screw
16	Plug, Door
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
19	Grease
19	Wire (14 Ga. 150 c Green)
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Yellow)
19	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
19	Wire (12 Ga. 150 c Black)
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	1
19	8212471 Whirlpool Oven Paint
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	Golden Harvest
19	72113 Whirlpool Touch-Up Paint
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	350942 Whirlpool Spray Paint
19	511873 Whirlpool Refrigerator Paint
19	WPL 799832
19	242831 Whirlpool Oven Wire
19	WP3196925 Whirlpool Clip Assembly
19	285006 Whirlpool Spray
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPW10208653 Whirlpool Insulation
19	350930 Whirlpool White Spray Paint
