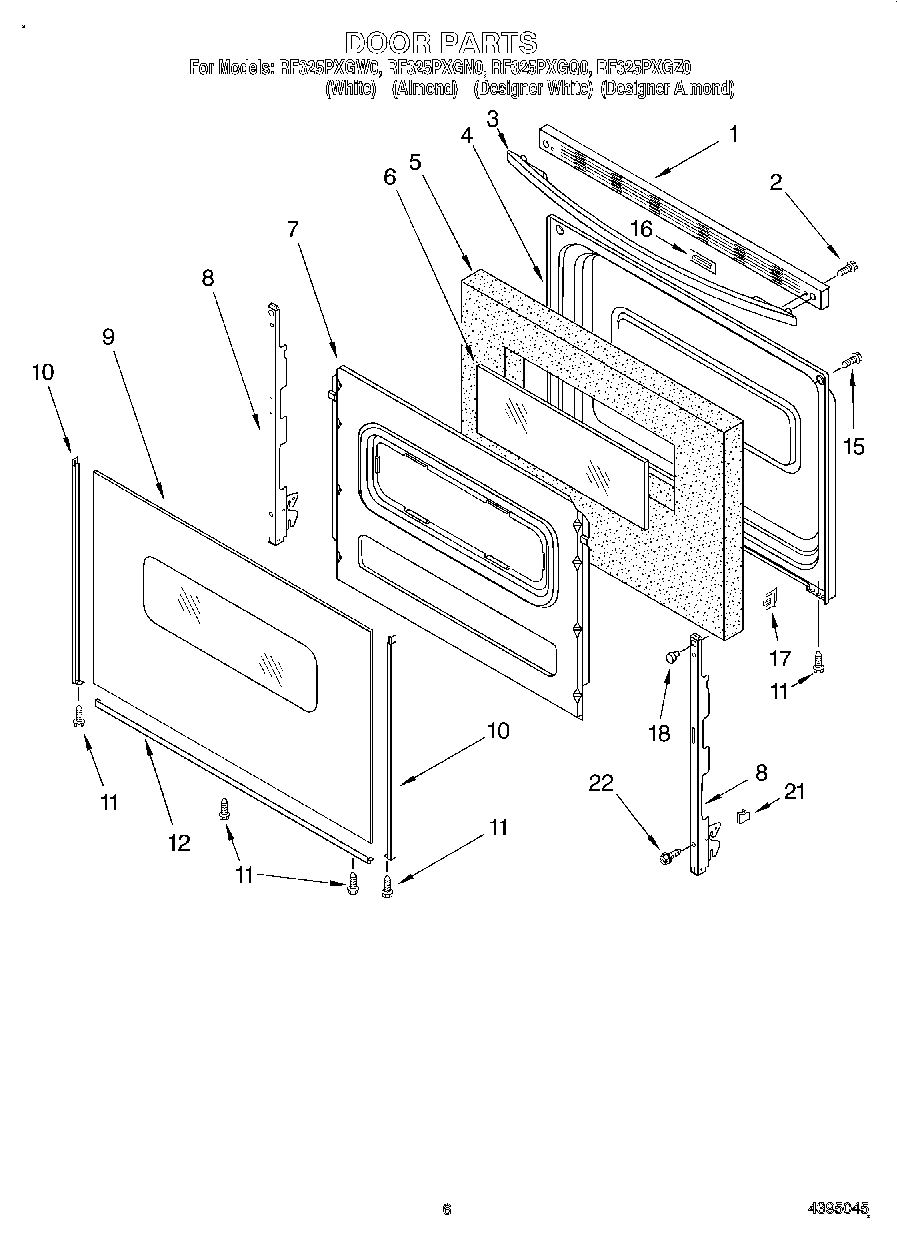

RF325PXGQ0 05 – DOOR, LIT/OPTIONAL

RF325PXGQ0 05 – DOOR, LIT/OPTIONAL

Written by

in

RF325PXGQ0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WP3196154 Whirlpool Screw Assembly
	3184020 Whirlpool Oven Wire
	WPL LIT8053395
	Harness, Wire (Door Switch)
	Literature (Installation, Instructions (Template))
	Literature (Instruction, Installation)
	3400964 Whirlpool Oven Clip
	Clip, Ground Wire
	814381 Whirlpool Pin
	Safer Cooking Tips
	WPL LIT8053301
	WPL 8053512
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
4	Liner, Door
5	Insulation, Door
6	WP9758164 Whirlpool Door Glass
7	9761500 Whirlpool Oven Retainer
8	Hinge, Door (2)
9	WP9762476 Whirlpool Door Glass
9	Glass, Outer Door (Almond)
9	WP9762477 Whirlpool Glass Door
11	W10491985 Whirlpool Screw
12	8184860 Whirlpool Oven Door Trim
12	8184858 Whirlpool Door Trim
12	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15	WP179051 Whirlpool Screw
16	Plug, Door
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
21	WP3196925 Whirlpool Clip Assembly
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	Wire (14 Ga. 200 c Brown)
22	1
22	8212471 Whirlpool Oven Paint
22	paint, spray 13 oz. (coffee)
22	Grease
22	Golden Harvest
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	WPL 72112
22	Platinum (Uncut)
22	Enamal, Toast (1 Qt. Uncut)
22	Paint, Spray (13 Oz.) (Platinum)
22	Toast
22	Golden Harvest (Uncut)
22	72113 Whirlpool Touch-Up Paint
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350930 Whirlpool White Spray Paint
22	WPW10208653 Whirlpool Insulation
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
22	Paint, Spray 13 Oz. (Avocado)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	285006 Whirlpool Spray
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	WP3196175 Whirlpool Screw
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	350956 Whirlpool Spray Assembly
