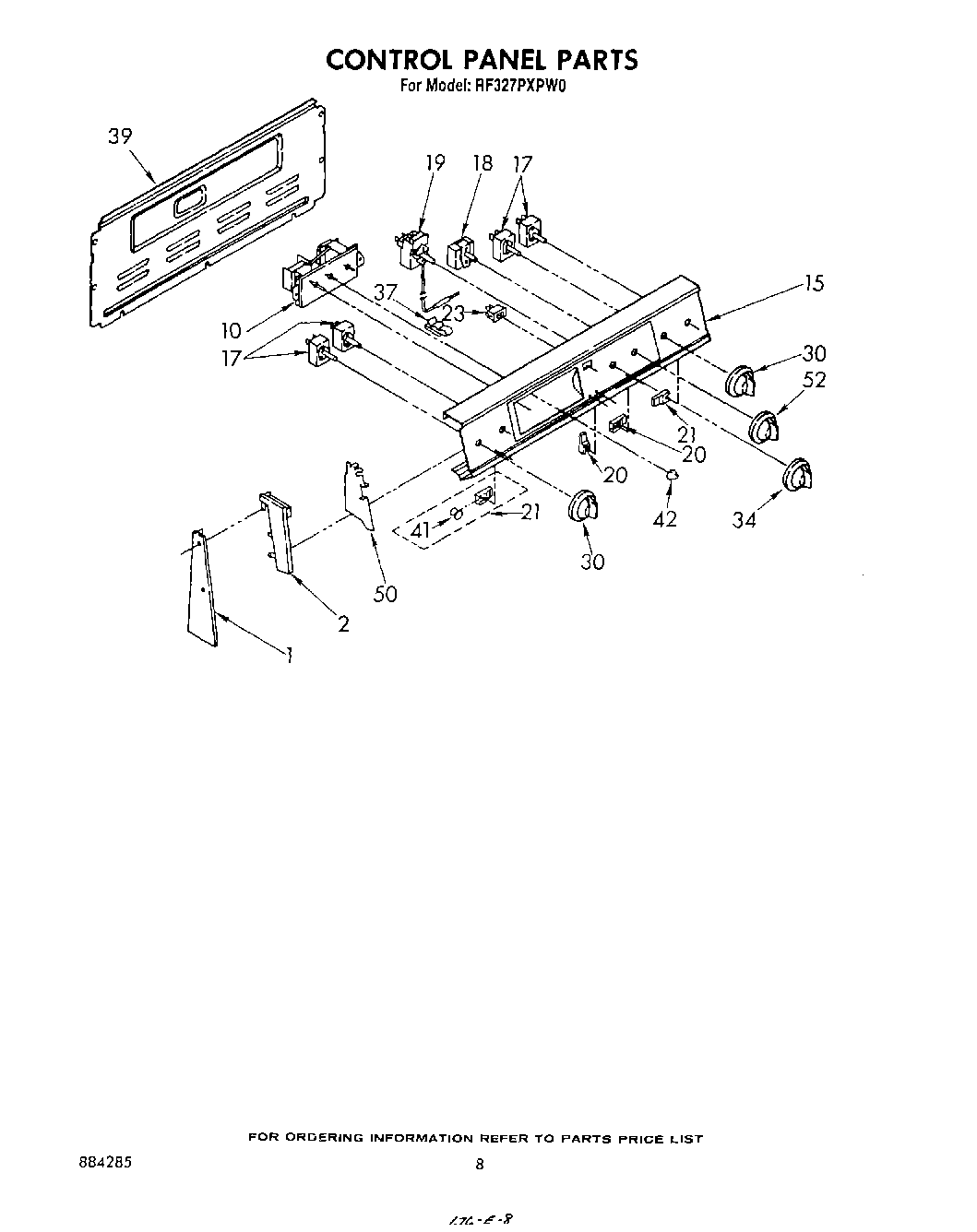

RF327PXPW0 06 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32x1``
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
10	Timer, Clock
15	Washer
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	WP3149400 Whirlpool Oven Infinite Switch
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
30	Knob, Switch (4)
34	Screw
34	Knob, Switch
37	Clip, Tube
39	SCREW
39	Harness-Conduit Asm.
41	Lens, Amber
42	WP3169181 Whirlpool Knob
42	Spring (3)
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	Knob, Selector
52	WP688805 Whirlpool Spring Clip
