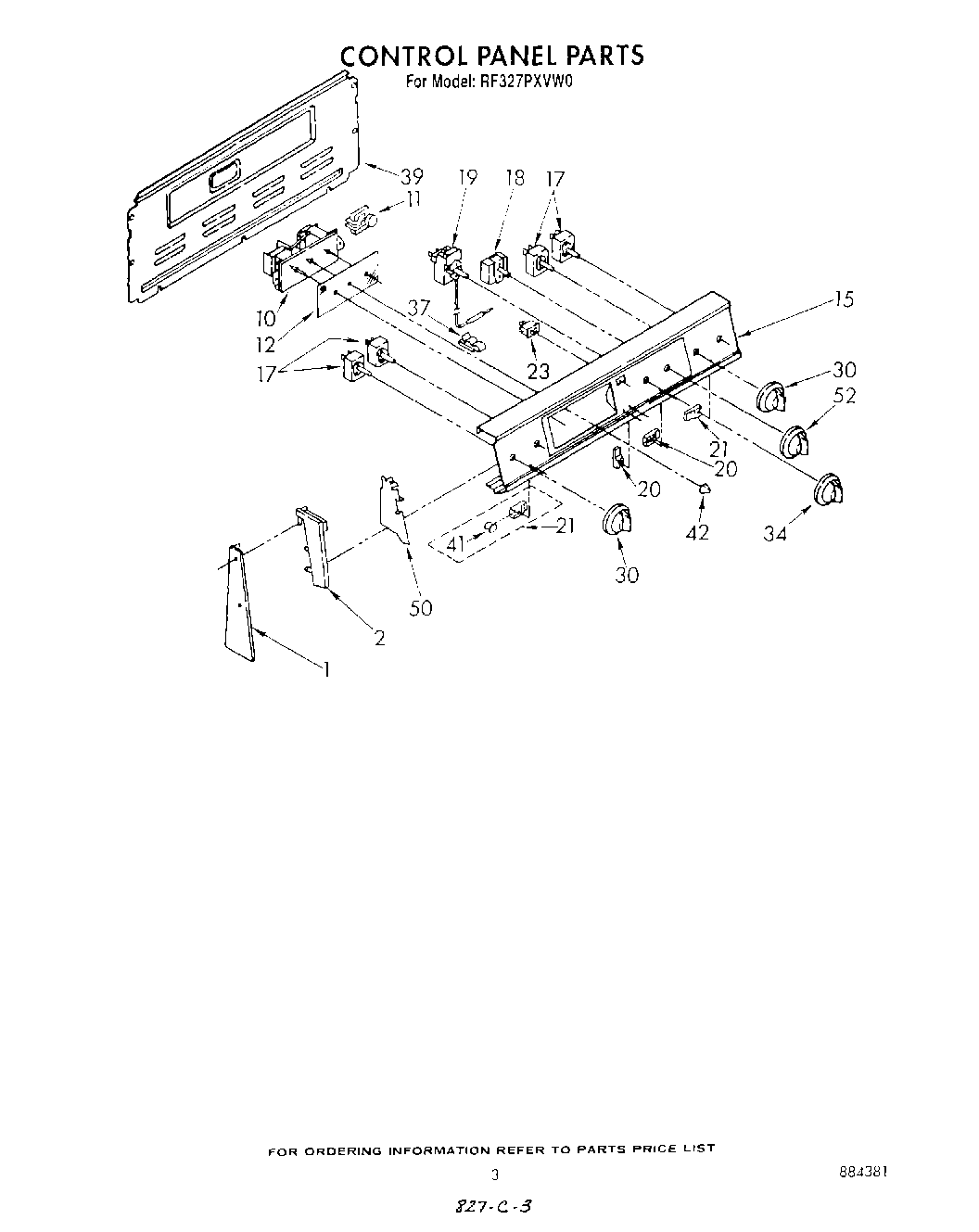

RF327PXVN0 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
15	Panel, Control
15	Washer
17	WP3148952 Whirlpool Oven Infinite Switch
17	SWITCH-INF
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
30	Knob, Switch (4)
34	Knob, Switch
34	Screw
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	Spring (3)
42	WP3169181 Whirlpool Knob
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	Knob, Selector
52	WP688805 Whirlpool Spring Clip
