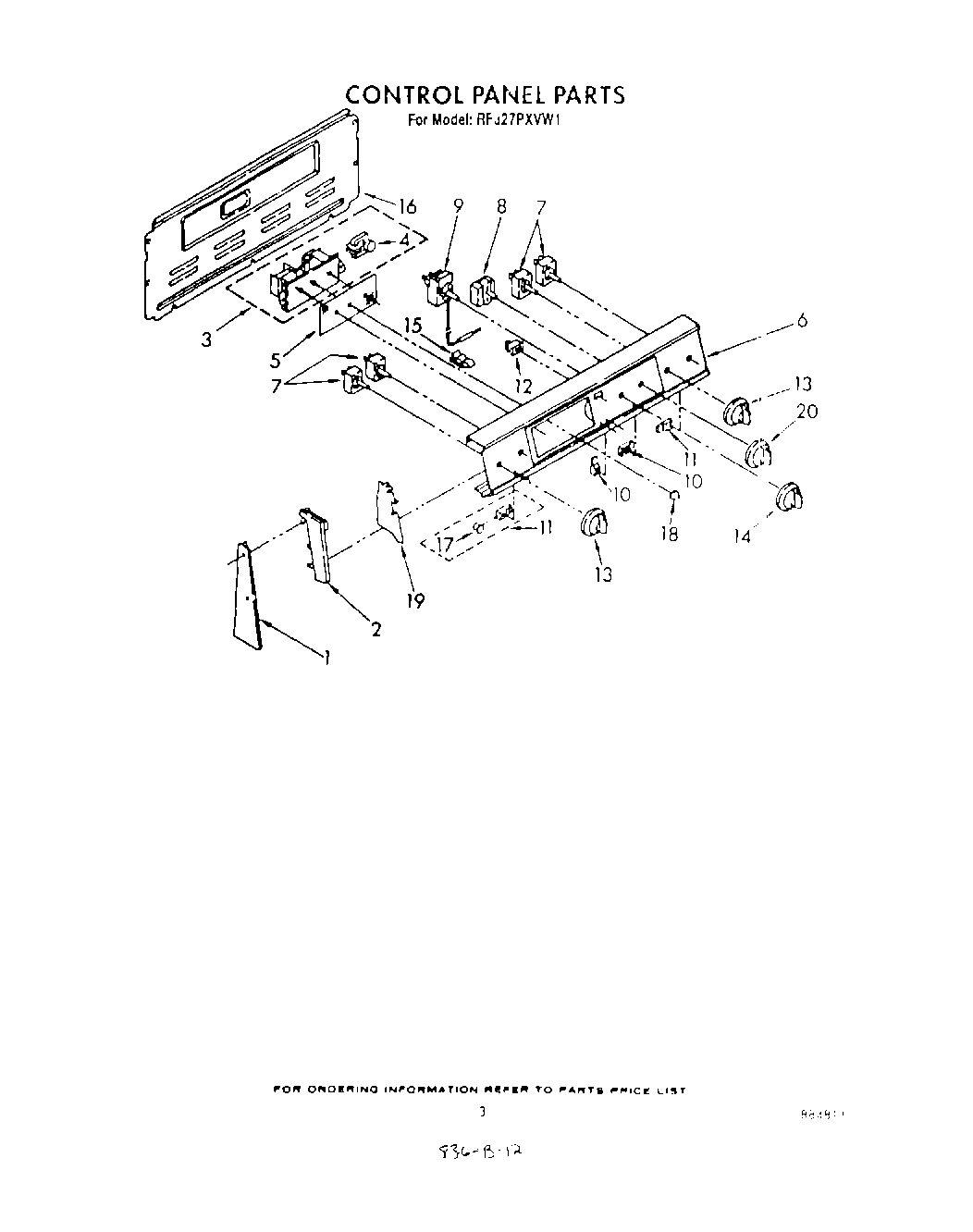

RF327PXVN1 03 – SECTION

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
3	Timer, Clock
4	Motor, Timer
5	Glass, Timer
6	Washer
6	Panel, Control
7	SWITCH-INF
7	WP3148952 Whirlpool Oven Infinite Switch
8	WP486579 Whirlpool Air Conditioner Screw
8	Switch, Selector
9	Thermostat, Oven (Alt.)
9	Thermostat, Oven (Alt.)
9	Thermostat, Oven
10	Light, Indicator (250V)
11	Light, Indicator (Surface Unit (2))
12	WP4314961 Whirlpool Lite Switch
13	WP3149983 Whirlpool Knob
14	Screw
14	Knob, Temperature
15	Clip, Tube
16	Harness-Conduit Asm.
16	SCREW
17	Lens, Amber
18	Spring (3)
18	WP3169181 Whirlpool Knob
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Selector
20	WP688805 Whirlpool Spring Clip
