RF327PXVW1 02 – SECTION

Products

PositionProduct
List, Parts
Guide, Use & Care
WPL LIT313358
WPL LIT3148614

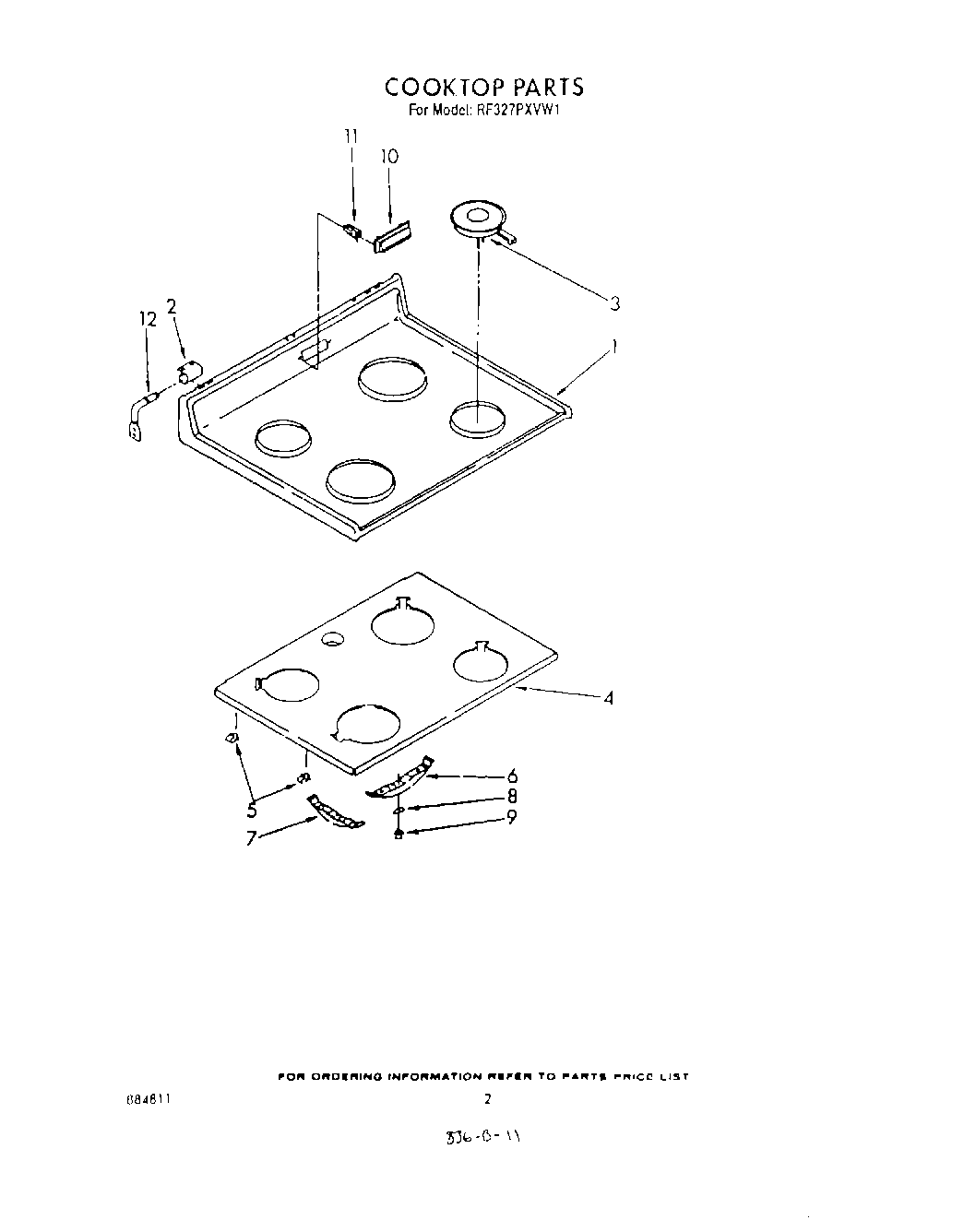

1Cooktop (Almond)
1Cooktop (White)
2SCREW
2Bracket, Cooktop (2)
3WP3147131 Whirlpool Surface Element
3WP3147132 Whirlpool Surface Element
4Cooktop Support
5Clip
6bracket, element (1.5 KW)
7bracket, element (2.0 KW)
8Spring, Leaf
9hex nut (8)
10cover, vent (almond)
10Cover, Vent (White)
11Clip, Vent Cover
12Pin, Cooktop (2)
