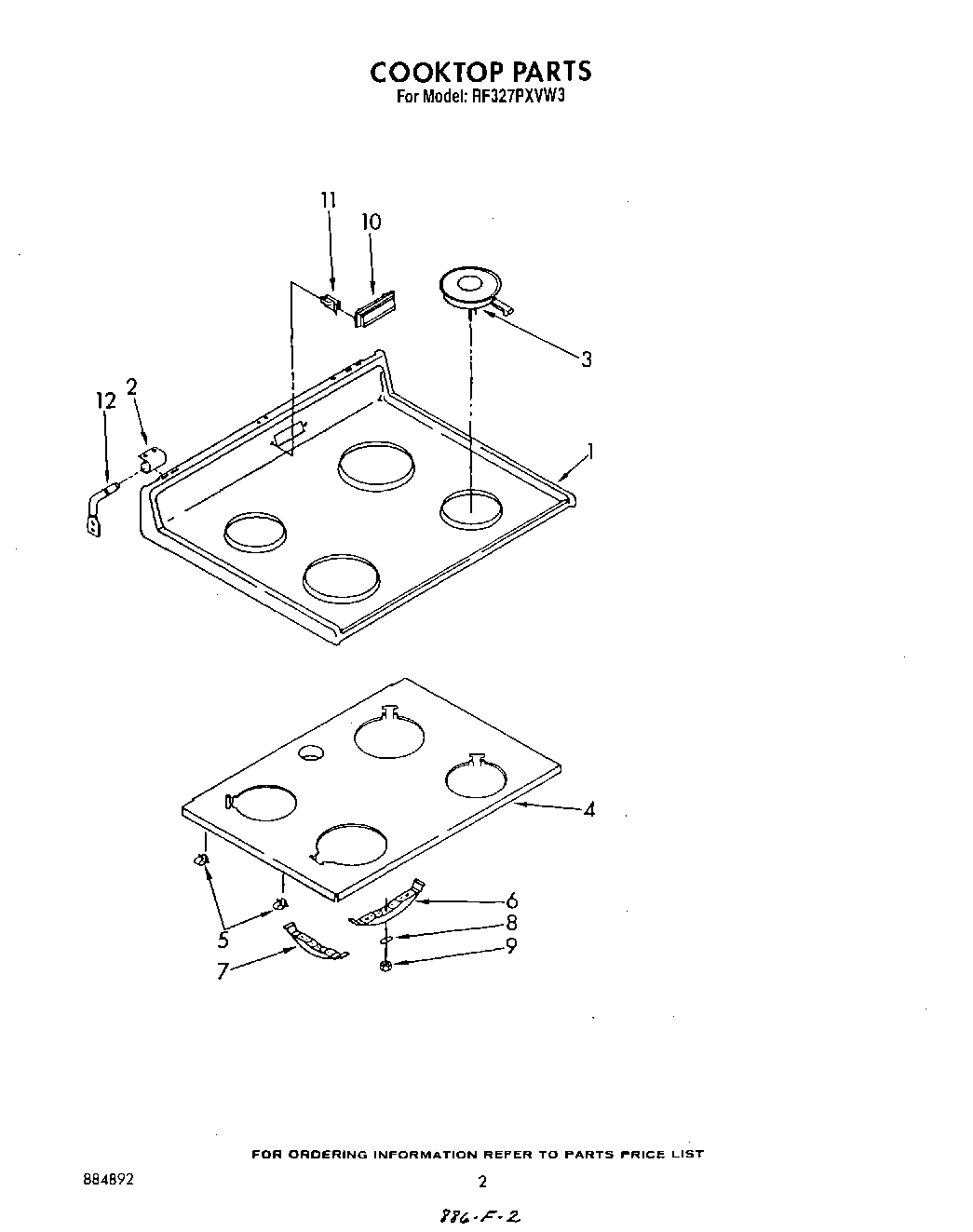

RF327PXVW3 02 – COOKTOP

Products

Position	Product
	Repair Parts LIst
	Guide, Use & Care
	Wiring Diagram
	Instructions, Installation
1	Cooktop (Almond)
1	Cooktop (White)
2	SCREW
2	Bracket, Cooktop (2)
3	WP3147131 Whirlpool Surface Element
3	WP3147132 Whirlpool Surface Element
4	Cooktop Support
5	Clip
6	bracket, element (1.5 KW)
7	bracket, element (2.0 KW)
8	Spring, Leaf
9	hex nut (8)
10	Cover, Vent (White)
10	cover, vent (almond)
11	Clip, Vent Cover
12	Pin, Cooktop (2)
