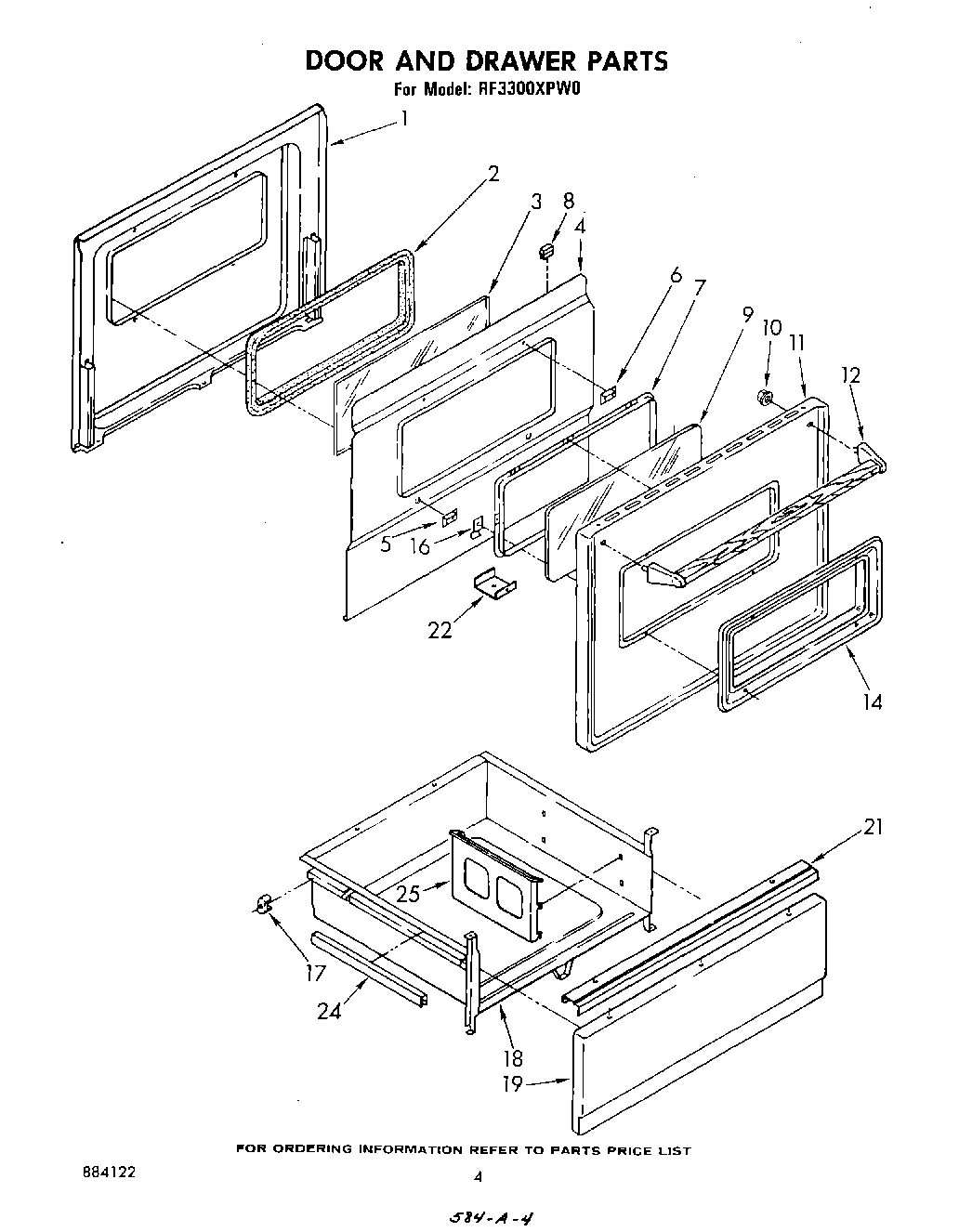

RF3300XPW0 04 – DOOR AND DRAWER

Products

Position	Product
1	liner, door
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
6	spacer, insulation baffle (4)
7	Retainer, Glass
8	Channel, Rubber (4)
9	Screw
9	Hinge-Lt. or Rt.
9	Glass, Outer
10	WP308499 Whirlpool Nut
11	Panel, Door (White)
11	Panel, Door (Harvest Gold)
11	Panel, Door (Platinum)
11	Palnut (2) Panel, Door (Almond)
11	Panel, Door (Toast)
12	Handle, Door
14	Frame, Window
16	Clip, Frame
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (Platinum)
19	Panel, Drawer (Toast)
19	Panel Drawer (White)
19	WP488787 Whirlpool Refrigerator Screw
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Almond)
21	WP488627 Whirlpool Refrigerator Screw
21	Handle, Drawer
22	Spacer, Baffle (2)
22	Screw, 10A x 1/2 (2) (Black)
24	Protector, Drawer (2)
25	Rack, Literature
