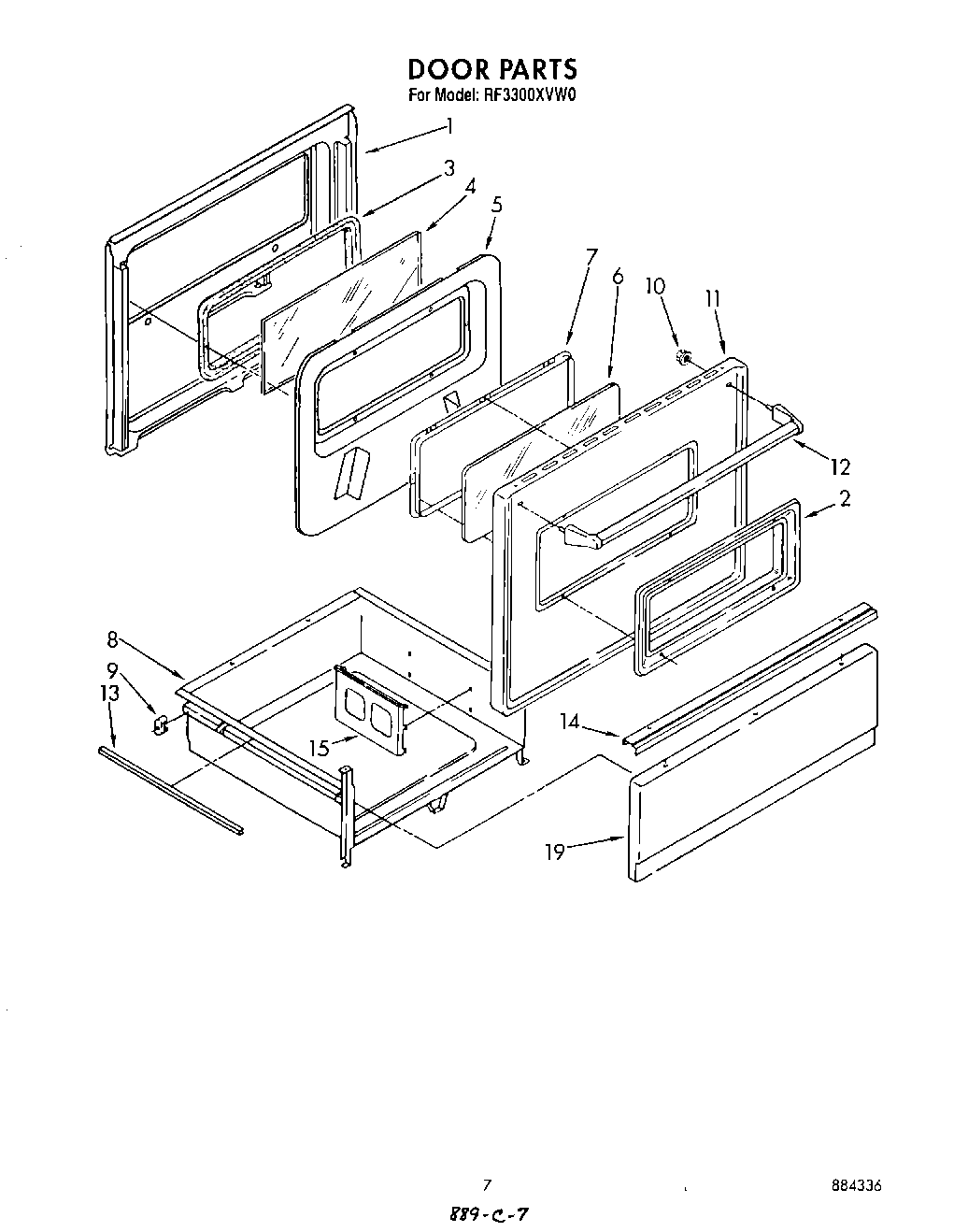

RF3300XVN0 06 – DOOR

Products

Position	Product
1	Liner, Door
2	Window, Frame
3	Seal, Door
4	Glass, Inner
5	Retainer, Insulation
5	Screw
5	Clip, Frame
6	Glass, Outer
7	Retainer, Glass
8	Drawer, Utility
9	Glide, Rear (2)
10	WP308499 Whirlpool Nut
11	Panel, Door (White)
11	Screw, 10A x 1/2 (2) (Black)
11	Panel, Door (Almond)
12	Handle, Door
13	Protector, Drawer (2)
14	Handle, Drawer
14	WP488627 Whirlpool Refrigerator Screw
15	Rack, Literature
19	Panel, Drawer (Almond)
19	Panel Drawer (White)
