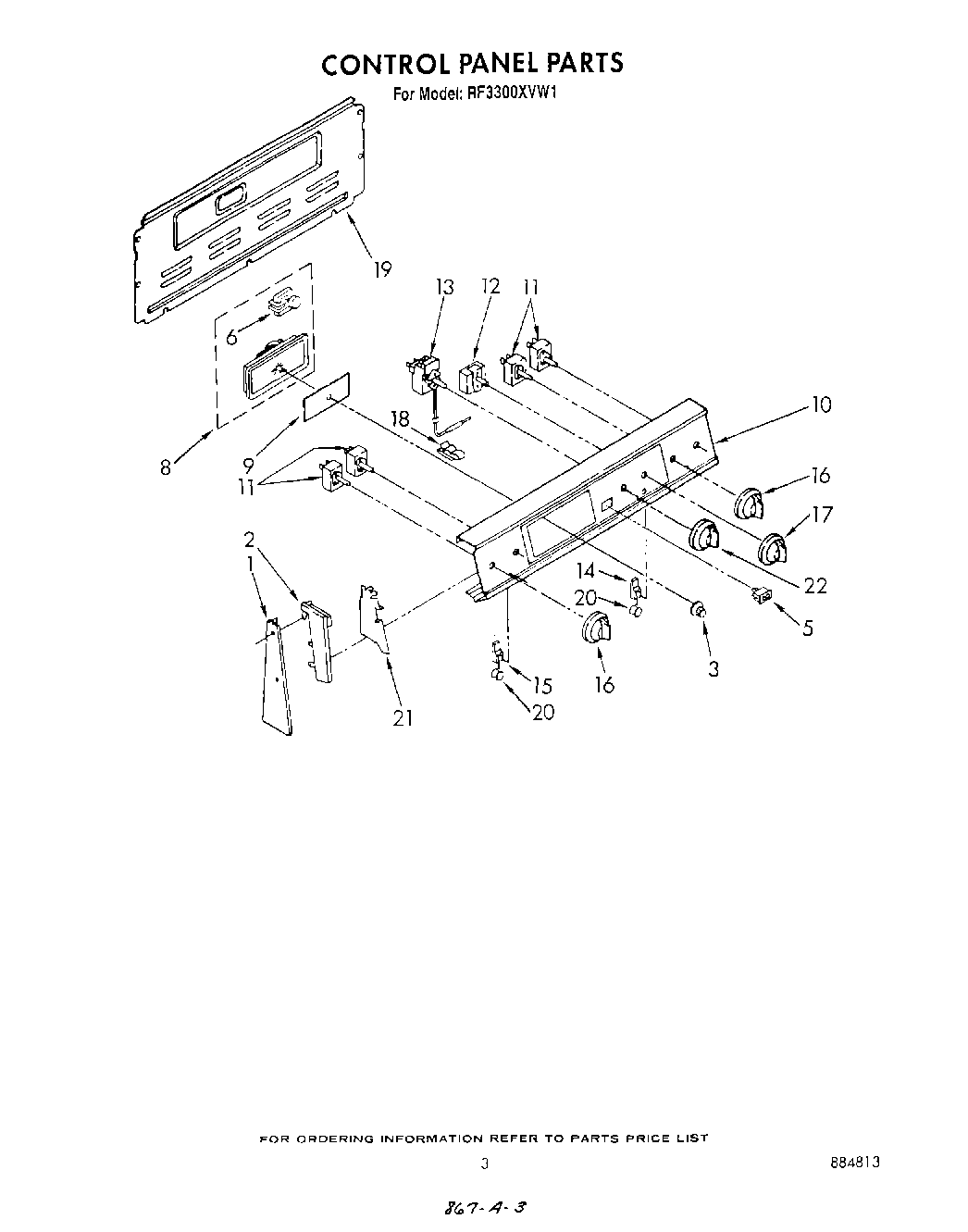

RF3300XVN1 03 – CONTROL PANEL

RF3300XVN1 03 – CONTROL PANEL

Written by

in

RF3300XVN1 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1WP3390631 Whirlpool Screw
1Screw 10-32×1“
1Screw 10-32×7/16“
2End Cap L.H.
2End Cap R.H.
2Screw,
3Spring (3)
3WP3169181 Whirlpool Knob
5WP4314961 Whirlpool Lite Switch
6Motor, Timer
8Timer, Clock
9Glass, Timer
10Panel, Control
10Washer
11WP3149404 Whirlpool Oven Surface Element Switch
11SWITCH-INF
12Switch, Selector
12WP486579 Whirlpool Air Conditioner Screw
13Thermostat, Oven (Alt.)
13Thermostat, Oven (Alt.)
13Thermostat, Oven
14Light, Indicator (250V)
15Light, Indicator (Surface Unit (2))
16WP3149983 Whirlpool Knob
17Knob, Selector
18Clip, Tube
19SCREW
19Harness-Conduit Asm.
20Lens, Amber
21Shield (2)
21WP965173 Whirlpool Dishwasher Screw
22Knob, Temperature
