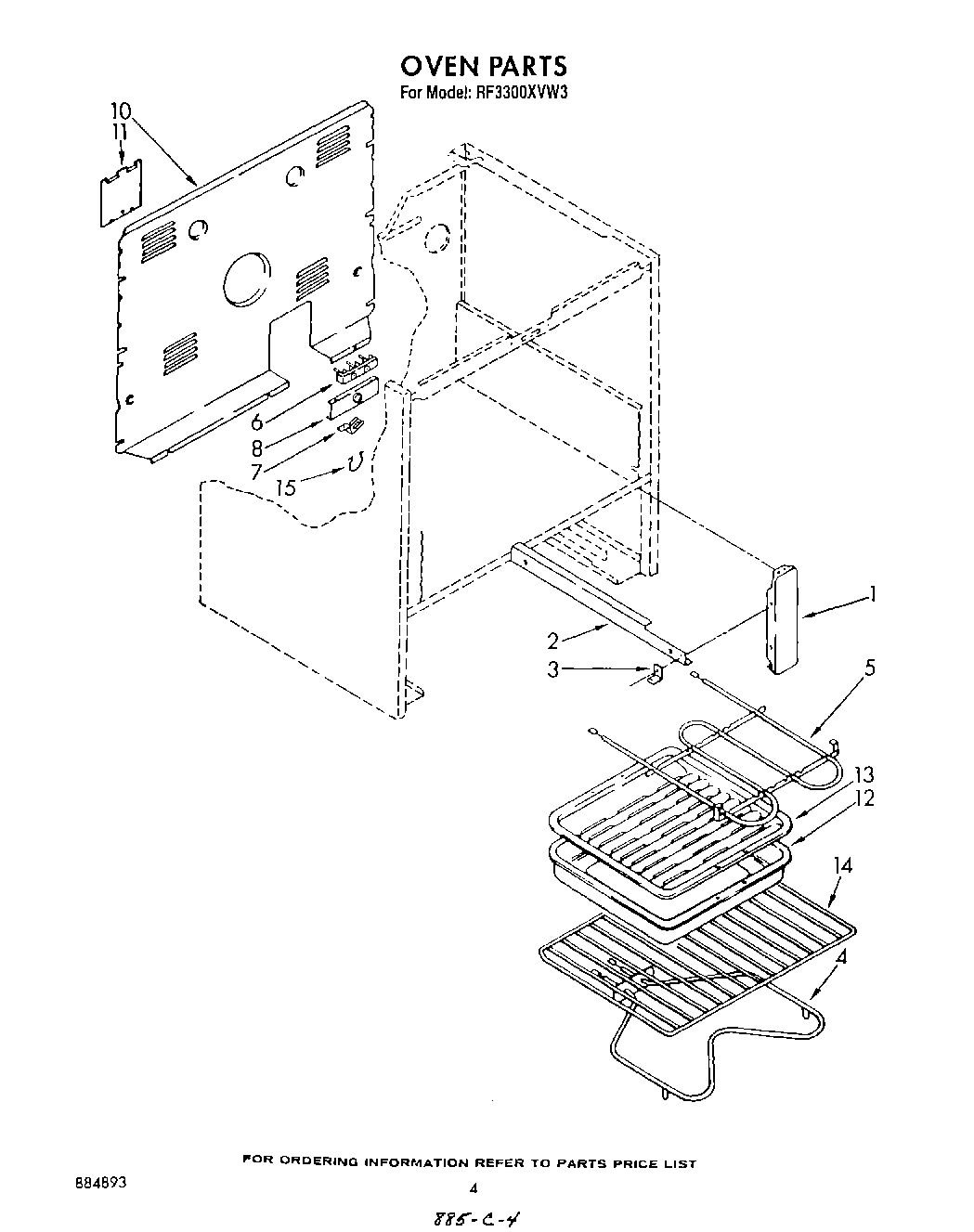

RF3300XVN3 04 – OVEN , LIT/OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	Wire (14 Ga. 150 c Orange)
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Blue)
15	Wire (14 Ga. 150 c Brown)
15	242831 Whirlpool Oven Wire
15	Wire (14 Ga. 150 c Yellow)
15	Wire (12 Ga. 150 c Black)
15	72113 Whirlpool Touch-Up Paint
15	Grease
15	8212471 Whirlpool Oven Paint
15	Leveler (Thinner) (2oz.)
15	Enamel, Coffee (1 Qt. Uncut)
15	1
15	Wire (14 Ga. 200 c Brown)
15	18 Ga. 80~c Rating (Red)
15	Enamel, New Avocado (1 Qt. Uncut)
15	16515 Whirlpool Clip
15	Enamal, Toast (1 Qt. Uncut)
15	Paint, Spray (13 Oz.) (Platinum)
15	Toast
15	Golden Harvest (Uncut)
15	Golden Harvest
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	Almond (Uncut)
15	WP72107 Whirlpool Touchup
15	799344 Whirlpool Refrigerator Paint
15	72017 Whirlpool Appliance Touch-Up Paint White
15	350956 Whirlpool Spray Assembly
15	Platinum (Uncut)
15	WPL 72112
15	350942 Whirlpool Spray Paint
15	Wire, 25` Roll (Red 14 Ga.)
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	285006 Whirlpool Spray
15	Wire, 25“ Roll (White 14 GA.)
15	Wire, 25` Roll (Black 14 Ga.)
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	WPW10208653 Whirlpool Insulation
15	WPL 799832
15	350930 Whirlpool White Spray Paint
