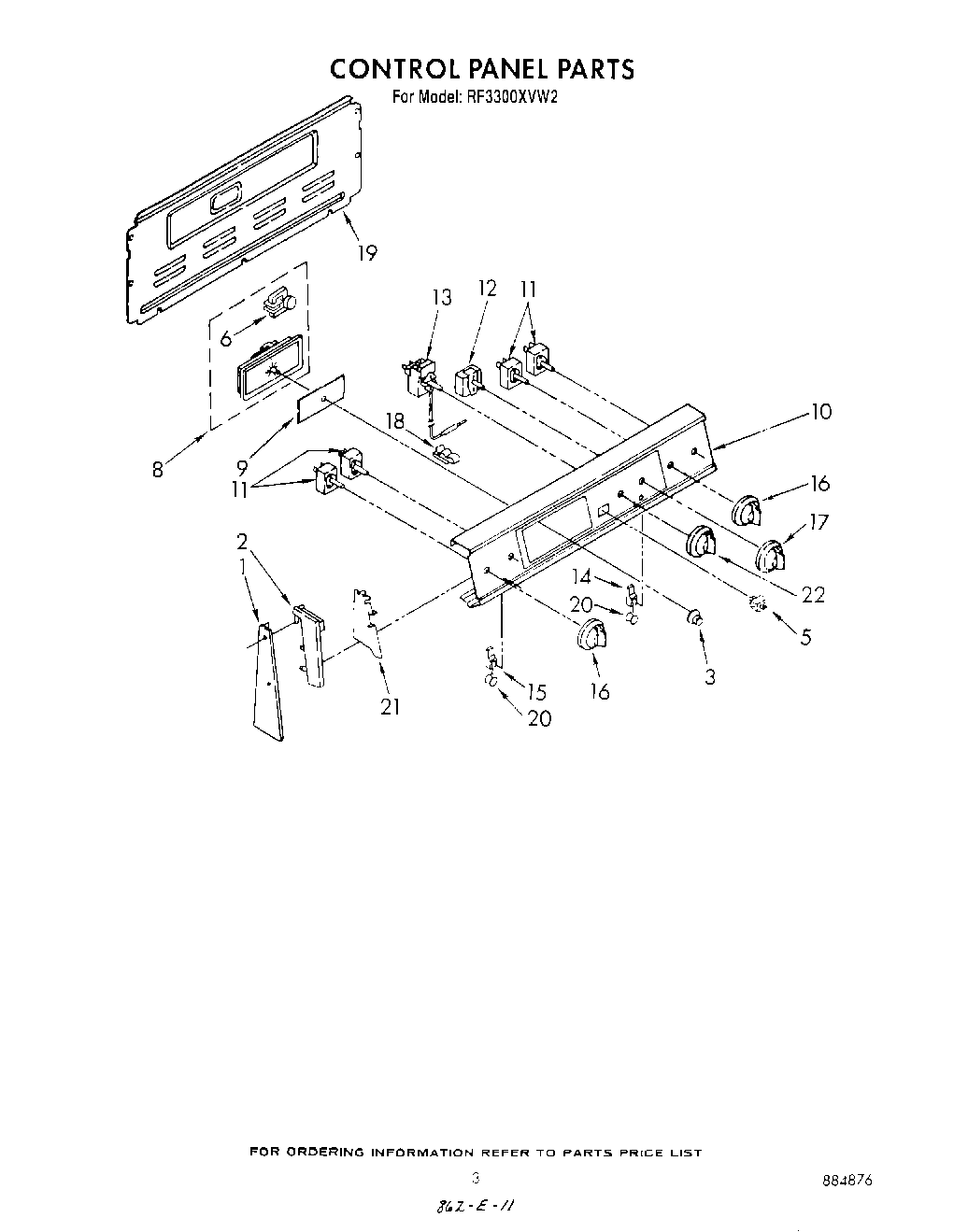

RF3300XVW2 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	WP3390631 Whirlpool Screw
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Spring (3)
3	WP3169181 Whirlpool Knob
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
8	Timer, Clock
9	Glass, Timer
10	Panel, Control
10	Washer
11	WP3149404 Whirlpool Oven Surface Element Switch
11	SWITCH-INF
12	Switch, Selector
12	WP486579 Whirlpool Air Conditioner Screw
13	Thermostat, Oven (Alt.)
13	Thermostat, Oven (Alt.)
13	Thermostat, Oven
14	Light, Indicator (250V)
15	Light, Indicator (Surface Unit (2))
16	WP3149983 Whirlpool Knob
17	Knob, Selector
18	Clip, Tube
19	SCREW
19	Harness-Conduit Asm.
20	Lens, Amber
21	Shield (2)
21	WP965173 Whirlpool Dishwasher Screw
22	Knob, Temperature
