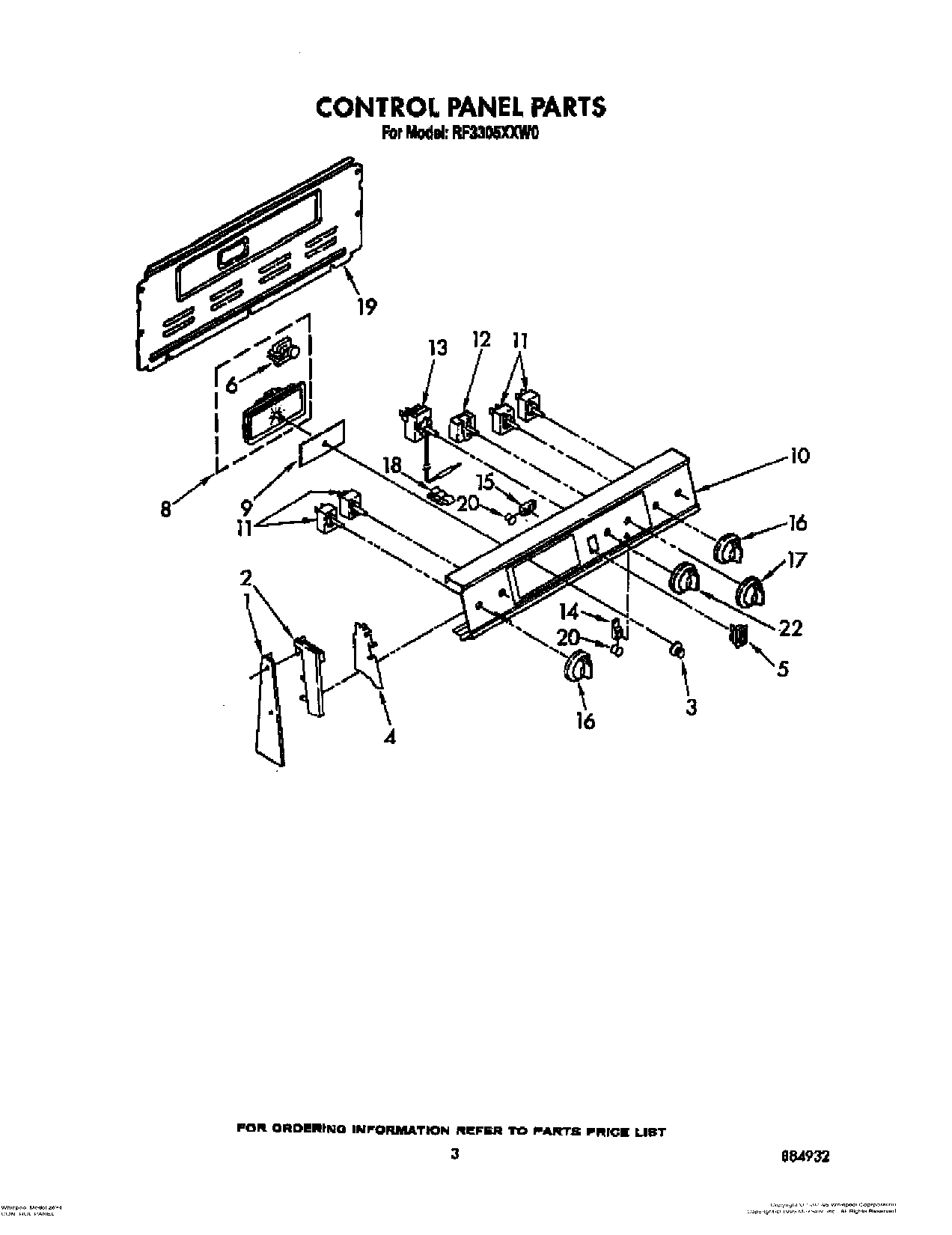

RF3305XXW0 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1WP3390631 Whirlpool Screw
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2(End Cap, L.H.) (White/Almond/Gold)
2Screw,
3WP3169181 Whirlpool Knob
3Spring (3)
4Shield (2)
5WP4314961 Whirlpool Lite Switch
6Motor, Timer
8Timer, Clock
8WP965173 Whirlpool Dishwasher Screw
9Glass, Timer
10Panel, Control (White)
10Panel, Control (Almond)
11SWITCH-INF
11WP3149404 Whirlpool Oven Surface Element Switch
12WP486579 Whirlpool Air Conditioner Screw
12Switch, Selector
13Thermostat, Oven (Alt.)
13Thermostat, Oven (Alt.)
13Thermostat, Oven
14Light, Indicator (250V)
15Light, Indicator (Includes No. 12) (Surface Unit On)
16WP3149983 Whirlpool Knob
17Knob, Selector
18Clip, Tube
19SCREW
19Harness-Conduit Asm.
20Lens, Amber
22Knob, Temperature
