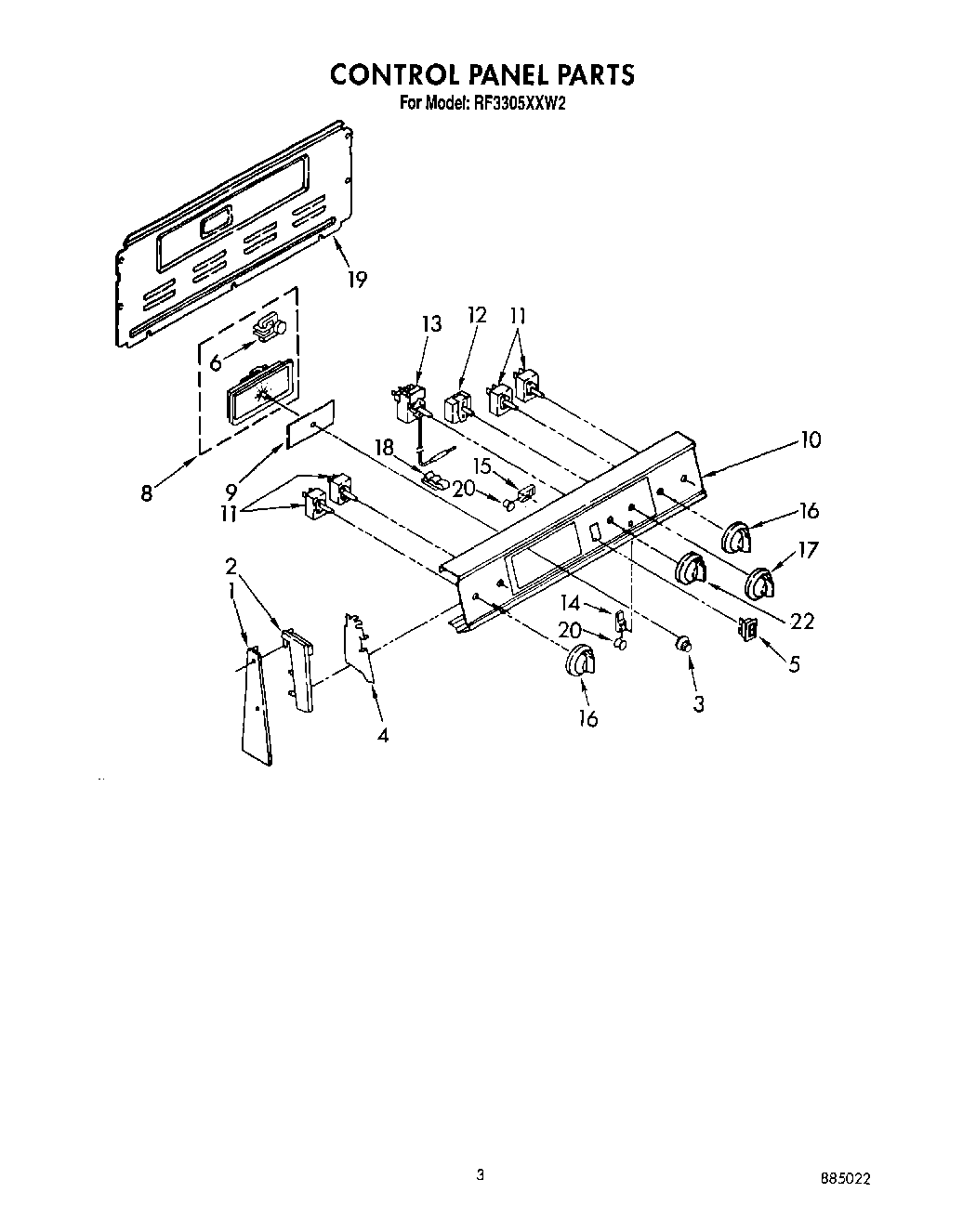

RF3305XXW2 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	(End Cap, L.H.) (White/Almond/Gold)
3	WP3169181 Whirlpool Knob
4	Shield (2)
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
8	Timer, Clock
8	WP965173 Whirlpool Dishwasher Screw
9	Glass, Timer
10	Panel, Control (White)
10	Panel, Control (Almond)
11	SWITCH-INF
11	WP3149404 Whirlpool Oven Surface Element Switch
12	Switch, Selector
12	WP486579 Whirlpool Air Conditioner Screw
13	WP313808 Whirlpool Screw
13	Thermostat, Oven (Alt.)
13	Thermostat, Oven (Alt.)
13	Thermostat, Oven
14	Light, Indicator (250V)
15	Light, Indicator (Includes No. 12) (Surface Unit On)
16	WP3149983 Whirlpool Knob
17	Knob, Selector
18	Clip, Tube
19	Harness-Conduit Asm.
19	SCREW
20	Lens, Amber
22	Knob, Temperature
