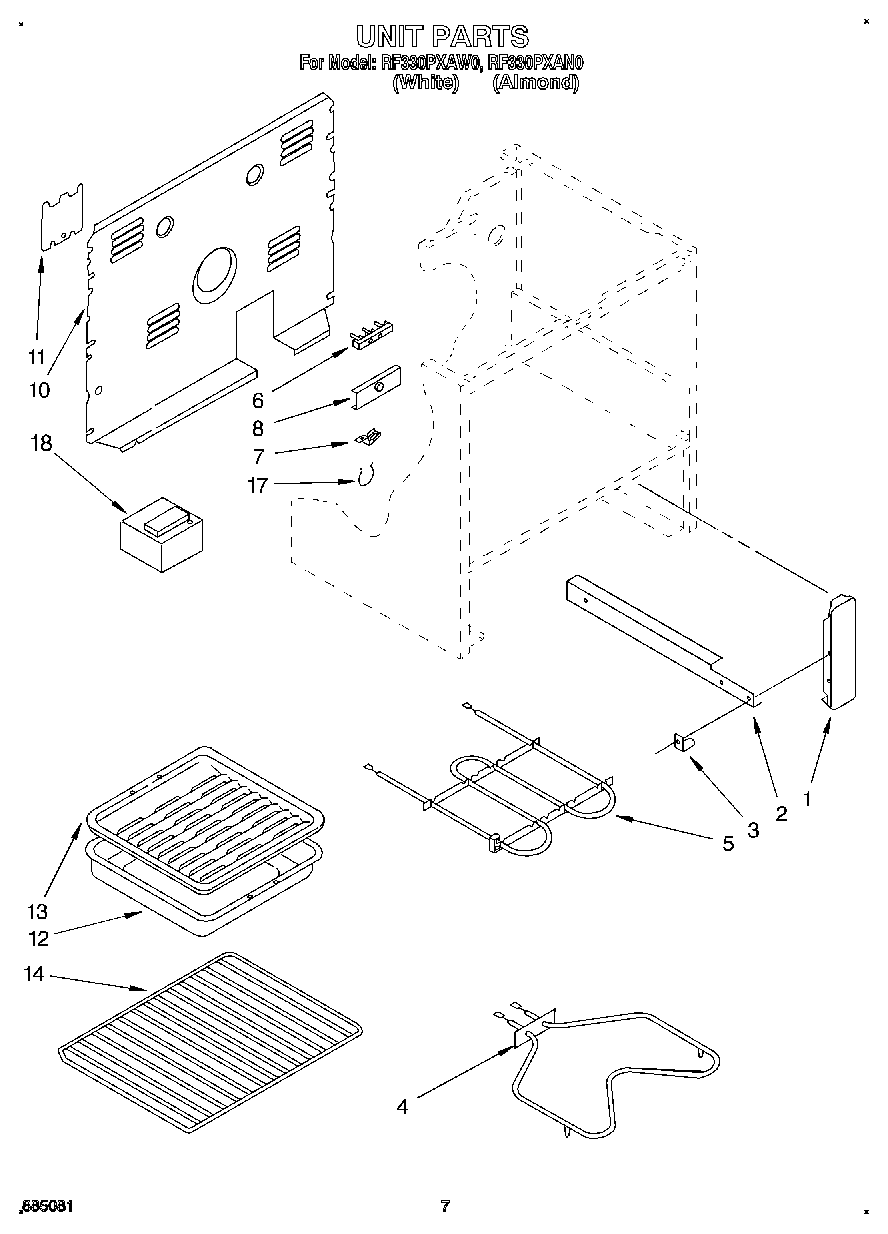

RF330PXAN0 06 – UNIT, OPTIONAL

RF330PXAN0 06 – UNIT, OPTIONAL

Written by

in

RF330PXAN0 06 – UNIT, OPTIONAL

Products

PositionProduct
WPL LIT677973
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Screw, 10A x 1/2 (2) (Black)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5Screw (2)
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
6Screw, (2) 10-16 x 1
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
1716515 Whirlpool Clip
18Golden Harvest
18Grease
188212471 Whirlpool Oven Paint
18Leveler (Thinner) (2oz.)
18Golden Harvest (Uncut)
18Toast
18Paint, Spray (13 Oz.) (Platinum)
181
18Wire (14 Ga. 200 c Brown)
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18Block, Balance
18340184 Whirlpool Screw
18350956 Whirlpool Spray Assembly
18Insulation, Wrap
1872017 Whirlpool Appliance Touch-Up Paint White
18799344 Whirlpool Refrigerator Paint
18WP72107 Whirlpool Touchup
18Almond (Uncut)
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18350930 Whirlpool White Spray Paint
1872113 Whirlpool Touch-Up Paint
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18511873 Whirlpool Refrigerator Paint
18Wire, 25` Roll (Red 14 Ga.)
18WPL 799832
18FOIL, ALUMINUM OVEN (18“ X 25 )
18350942 Whirlpool Spray Paint
18WPL 72112
18Wire (14 Ga. 150 c Yellow)
18Wire, 25“ Roll (White 14 GA.)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Enamal, Toast (1 Qt. Uncut)
18Platinum (Uncut)
18WPW10208653 Whirlpool Insulation
