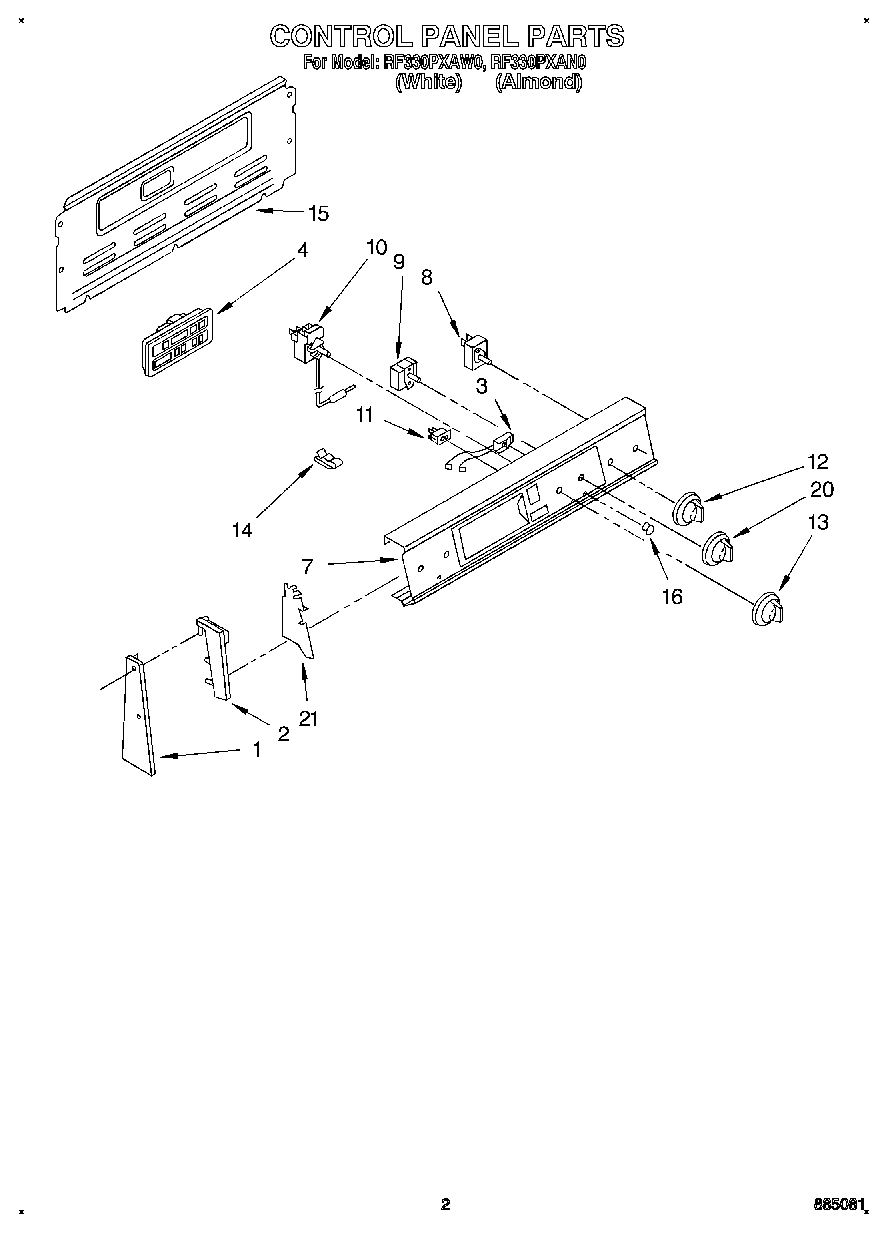

RF330PXAW0 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
3	Light, Indicator (Includes No. 12) (Surface Unit On)
3	Light, Indicator (250V)
4	Timer, Clock
7	Panel, Control (Almond Mdl.)
8	SWITCH-INF
8	WP3149404 Whirlpool Oven Surface Element Switch
9	Screw, 8-32 x 3/16 (2)
9	Switch, Selector
10	WP313808 Whirlpool Screw
10	Thermostat, Oven (Alt.)
10	Thermostat, Oven (Alt.)
10	Thermostat, Oven
11	WP4314961 Whirlpool Lite Switch
12	Knob, (4) Infinite Switch (White/Almond/Gold)
13	Knob, Thermostat
14	Clip, Tube
15	Rear Cover Contr
15	SCREW
16	Lens, Amber
20	Knob, Selector (White/Almond/Gold)
21	WP965173 Whirlpool Dishwasher Screw
21	Shield (2)
