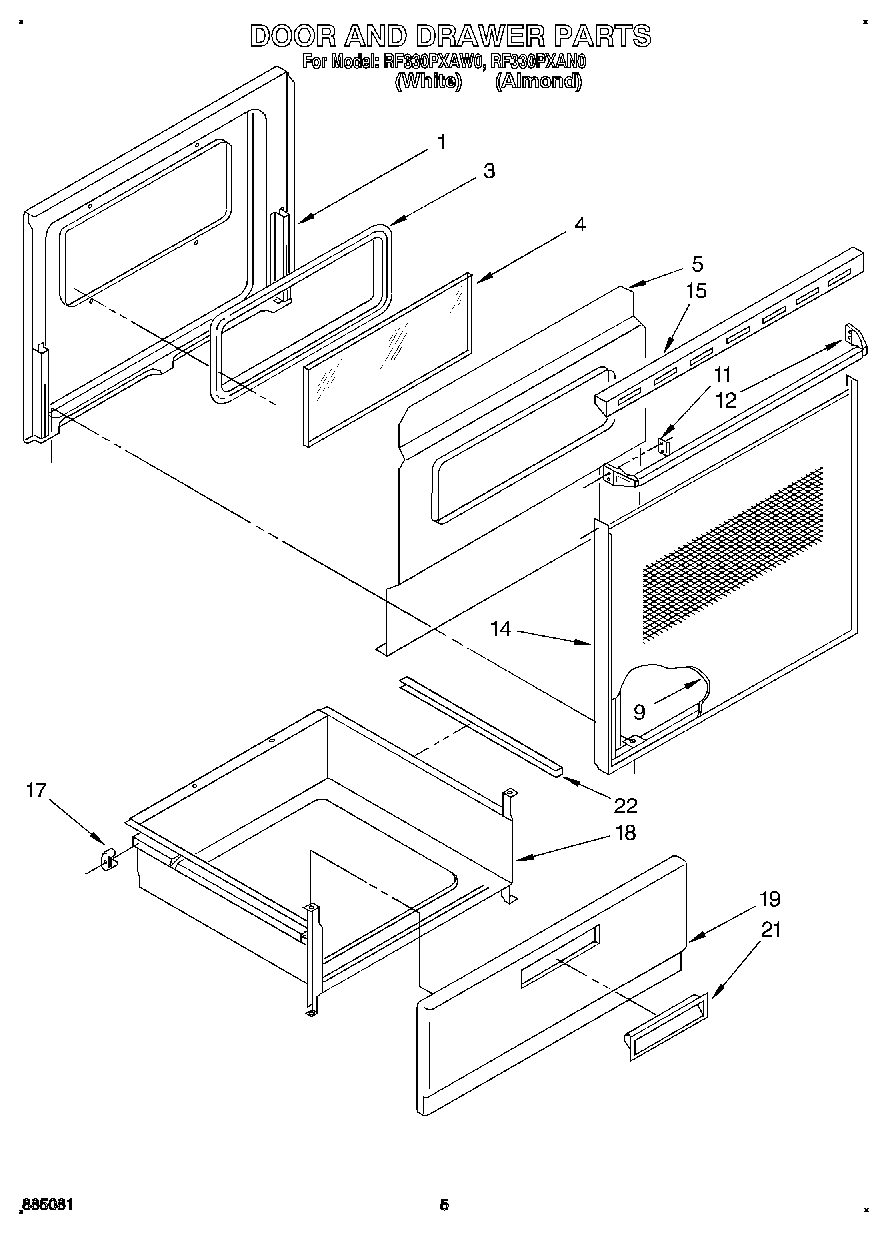

RF330PXAW0 05 – DOOR AND DRAWER, LITERATURE

Products

Position	Product
	Guide, Use & Care
	WPL LIT3150400
	Instructions, Installation
	Wiring Diagram
1	Screw (3)
1	Liner, Door
3	Seal, Door
4	Glass, Clear
5	Screw
5	Retainer, Insulation
5	Screw, 10A x 1/2 (2) (Black)
9	Glass, Panel (Black Model)
11	Clip, Mtg (2)
12	Handle, Oven Door
14	Frame, Door
14	WP355515 Whirlpool Screw
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Top, Door (Black Model)
17	WP308685 Whirlpool Microwave Screw
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (Almond)
19	Panel, Drawer (White)
19	WP488627 Whirlpool Refrigerator Screw
21	Handle, Snap-In (White)
21	Handle, Snap-In (Almond)
22	Protector, Drawer (2)
