RF330PXDN0 02 – CONTROL PANEL
Written by
in

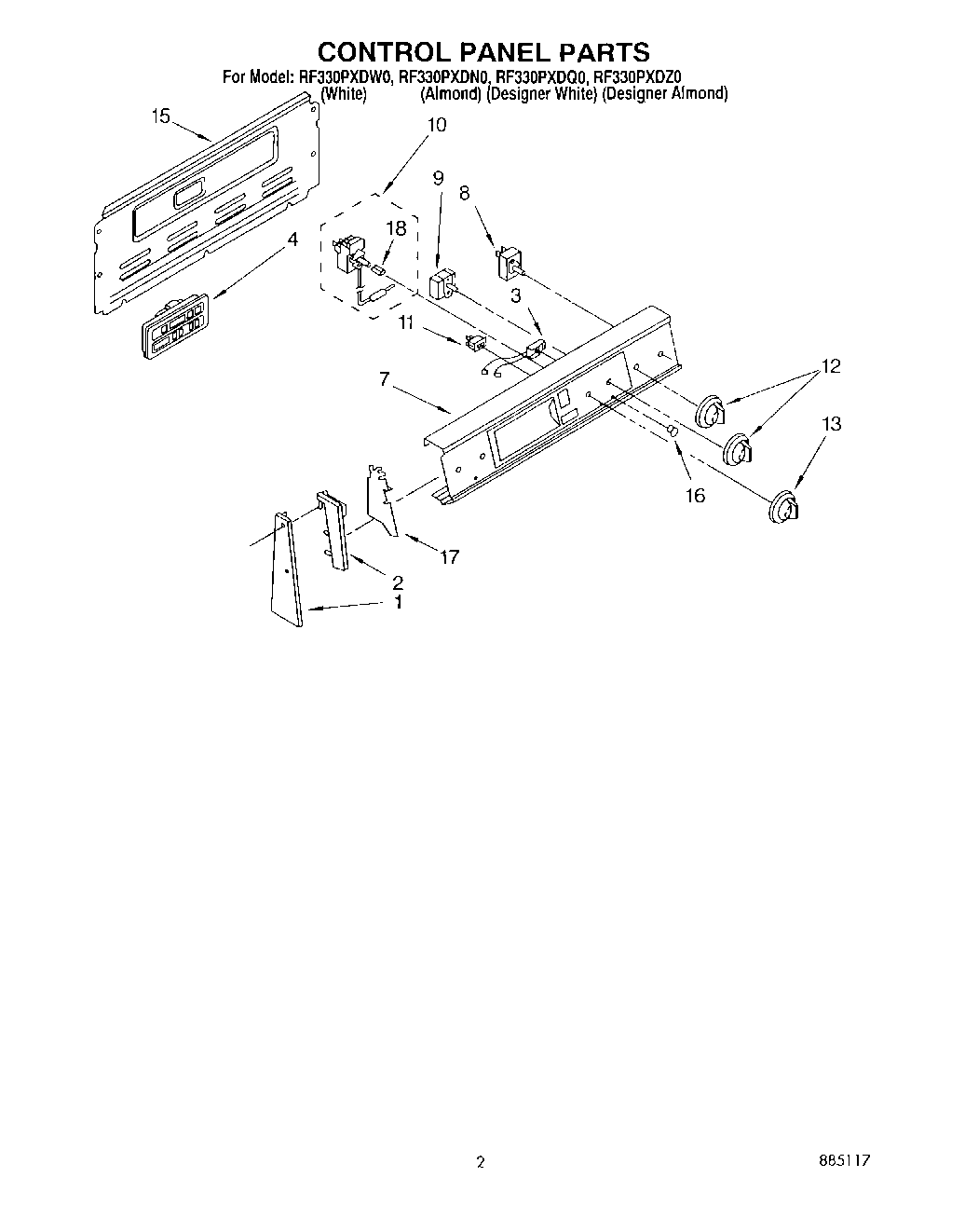

RF330PXDN0 02 – CONTROL PANEL
Products
Position
Product
1
End Trim R.H. (Designer White)
1
End Trim R.H. (Designer Almond)
1
End Trim (LH, Designer White)
1
End Trim (LH, Designer Almond)
1
End Trim
1
End Trim R.H. (Black)
1
End Trim (LH, Black)
2
End Cap, R.H. (Black)
2
End Cap L.H. (Black)
2
End Cap R.H. (Designer White)
2
End Caps
2
End Cap R.H. (Designer Almond)
2
End Cap L.H. (Designer White)
2
End Cap L.H. (Designer Almond)
3
Light, Indicator (250V)
3
Indicator Light (Surface Unit On)
4
Timer, Clock (Designer White)
4
Timer, Clock (Designer Almond)
4
Timer, Clock (Black)
7
Panel, Control (Screw, 8-18 x 5/8 (4))
7
Panel, Control (Almond)
7
Control Panel (Designer White)
7
Panel, Control (White)
7
Control Panel (Designer Almond)
7
Control Panel (Black)
8
SWITCH-INF
8
WP3149404 Whirlpool Oven Surface Element Switch
9
Screw, 8-32 x 3/16 (2)
9
WP3188987 Whirlpool Oven Switch
10
Thermostat, 0ven
10
WP313808 Whirlpool Screw
11
Switch, Rocker (Designer Almond)
11
Switch, Rocker (White)
11
Switch, Rocker
12
WP3196232 Whirlpool Knob
12
WPL 3188723
12
WP3196231 Whirlpool Knob
13
Knob, Thermostat (Designer Almond)
13
Knob, Thermostat (Designer White)
13
Knob, Thermostat (Black)
15
Rear Cover Contr
15
SCREW
16
Lens, Amber
17
WP965173 Whirlpool Dishwasher Screw
17
Shield (2)
18
WPL 3169525
←
