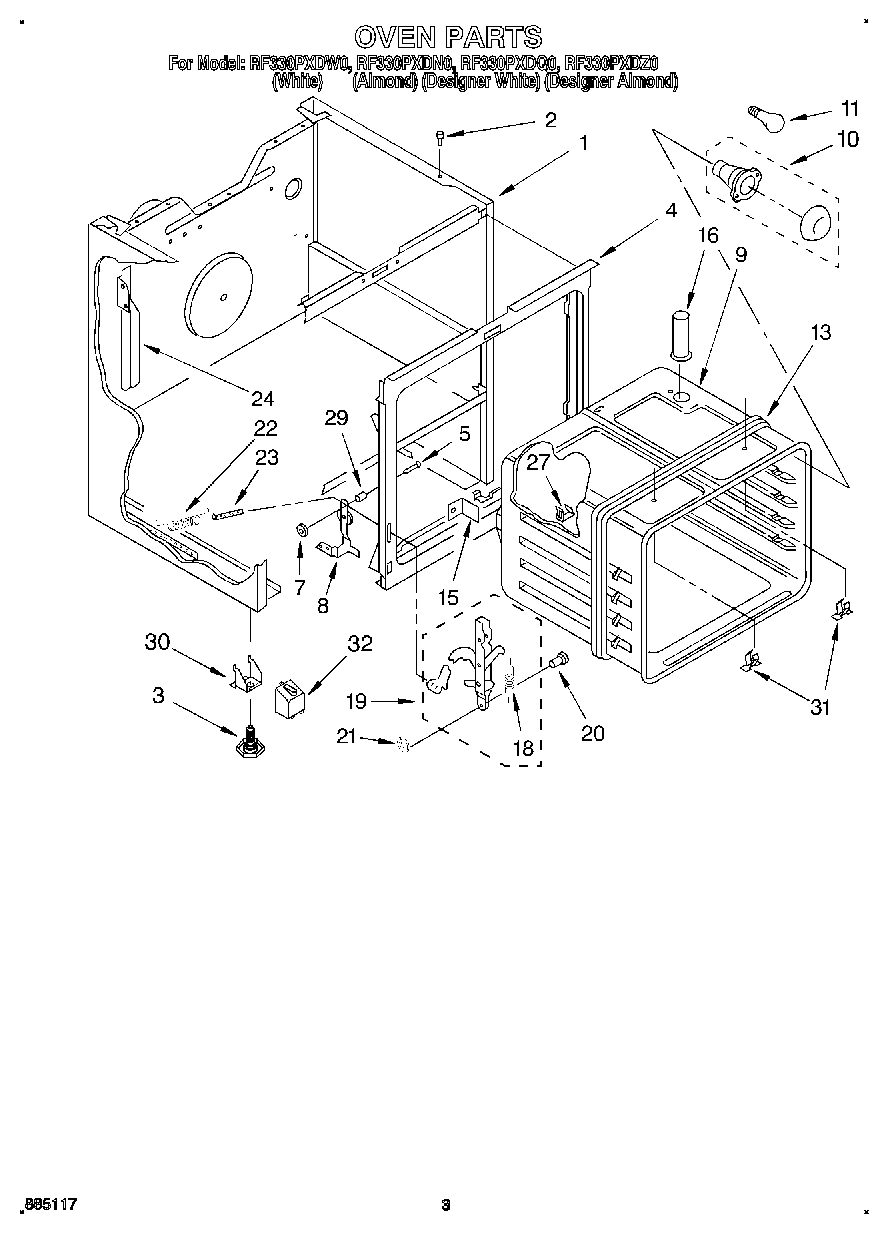

RF330PXDN0 03 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	Leg Leveling (4)
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge, L.H.
8	Hinge, R.H.
9	Oven 30“ (Continuous Clean)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
13	Heat Seal
15	Bracket, Oven (Mounting)
16	9755804 Whirlpool Oven Vent Tube
16	Screw, 10A x 1/2 (2) (Black)
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
27	98005642 Whirlpool Clip
29	Snubber, Door (2)
30	Support, Foot (2)
30	SCREW
31	WPL 3169107
32	Cover, Foot (2)
