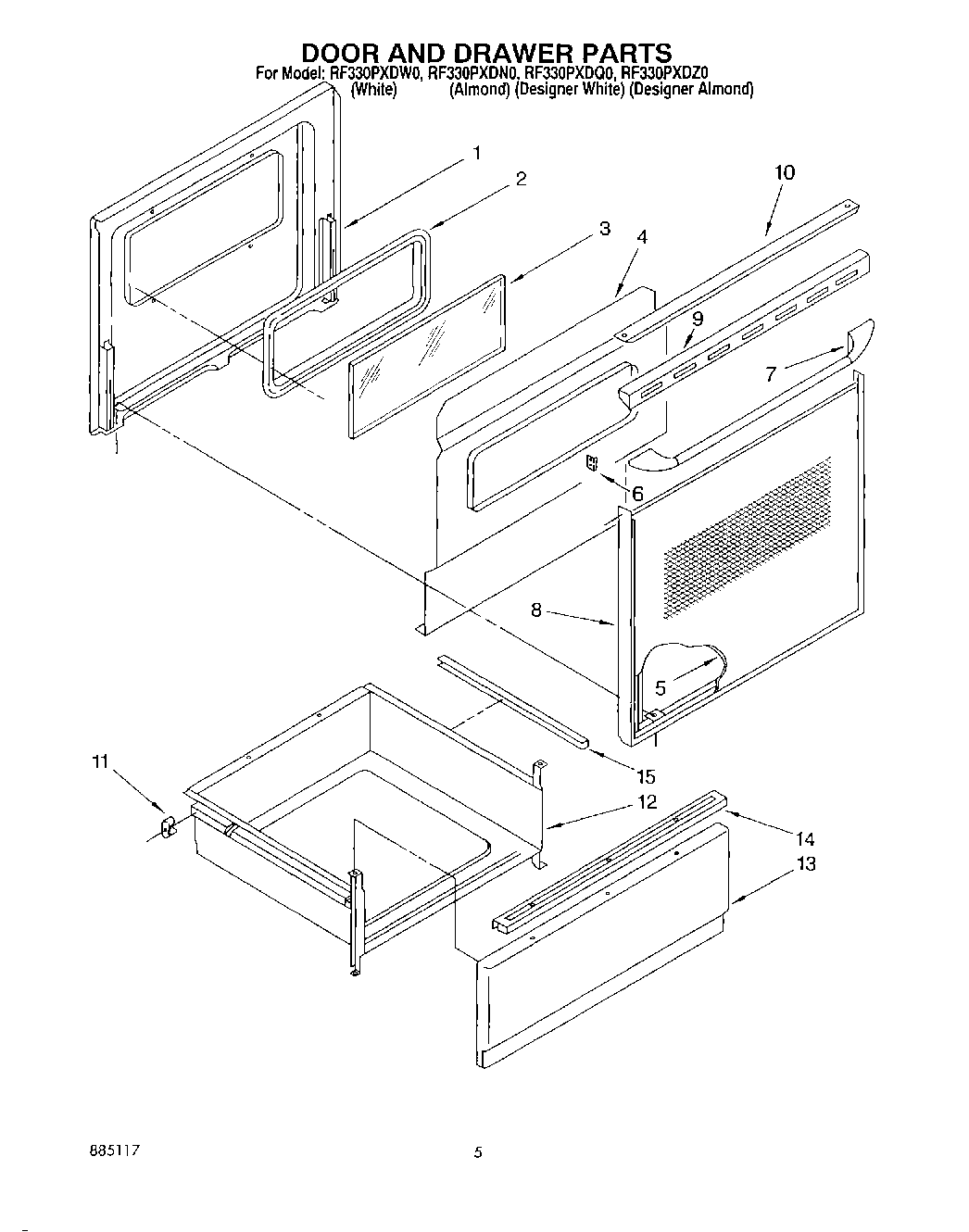

RF330PXDN0 05 – DOOR AND DRAWER, LITERATURE

Products

Position	Product
	WPL LIT3189067
	Wiring Diagram
	Instructions, Installation
	WPL LIT3150400
1	Liner, Door
2	Seal, Door
3	Glass, Clear
4	Screw
4	Retainer, Insulation
5	Glass Panel, Outer (Almond)
5	Glass Panel, Outer (White)
5	Glass Panel, Outer (Black)
6	Clip, Mtg (2)
7	Handle, Door (Almond)
7	WP999367 Whirlpool Refrigerator Screw
7	Handle, Door (Black)
7	Handle, Door (White)
8	Frame, Door (Screw (3))
8	Frame, Door (Almond)
8	Frame, Door (White)
8	Frame, Door (Black)
8	Screw
8	Handle, Door (Screw (4))
8	Back Splash (Screw (4) 10AB x 1/2“)
8	Handle, Door (Screw)
8	Frame, Door (Screw (4))
9	Top, Door Frame (Designer White)
9	Top, Door Frame (Designer Almond)
9	Top, Door Frame (Black)
10	Top, Door Frame (Screw (2))
10	Top, Door Frame (Screw (2))
10	Cap, Top (Designer Almond)
10	Cap, Top (Designer White)
11	WP308685 Whirlpool Microwave Screw
11	Glide, Rear (2)
12	Drawer, Utility
13	Panel Drawer (Almond)
13	Panel Drawer (White)
14	WP488627 Whirlpool Refrigerator Screw
14	Handle, Drawer (Almond)
14	Handle, Drawer (White)
15	Protector, Drawer (2)
