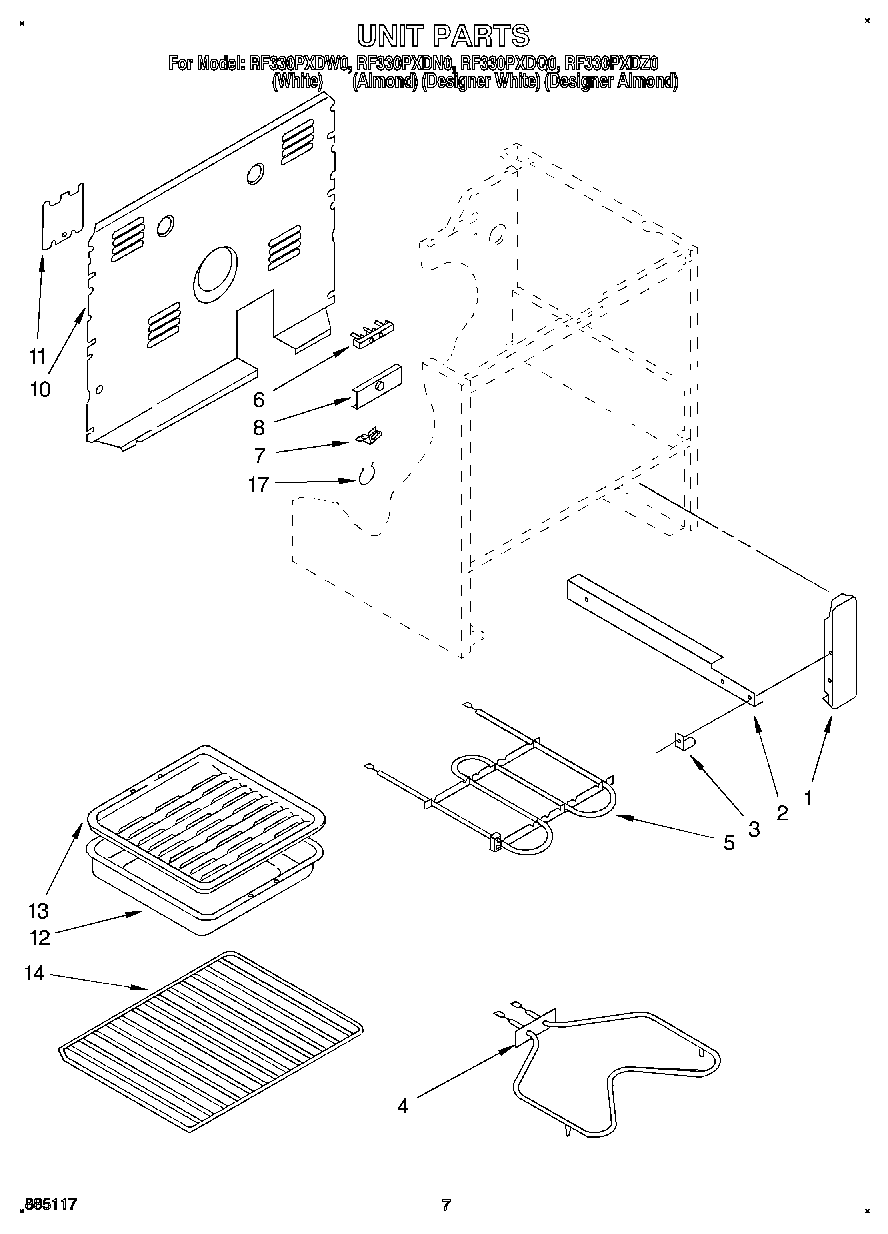

RF330PXDQ0 06 – UNIT, OPTIONAL

Products

Position	Product
	WPL LIT677973
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
17	Wire (14 Ga. 150 c Blue)
17	Insulation, Wrap
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (12 Ga. 150 c Black)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	72113 Whirlpool Touch-Up Paint
17	Leveler (Thinner) (2oz.)
17	8212471 Whirlpool Oven Paint
17	Grease
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	242831 Whirlpool Oven Wire
17	16515 Whirlpool Clip
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	Platinum (Uncut)
17	WPL 72112
17	350942 Whirlpool Spray Paint
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	511873 Whirlpool Refrigerator Paint
17	350930 Whirlpool White Spray Paint
