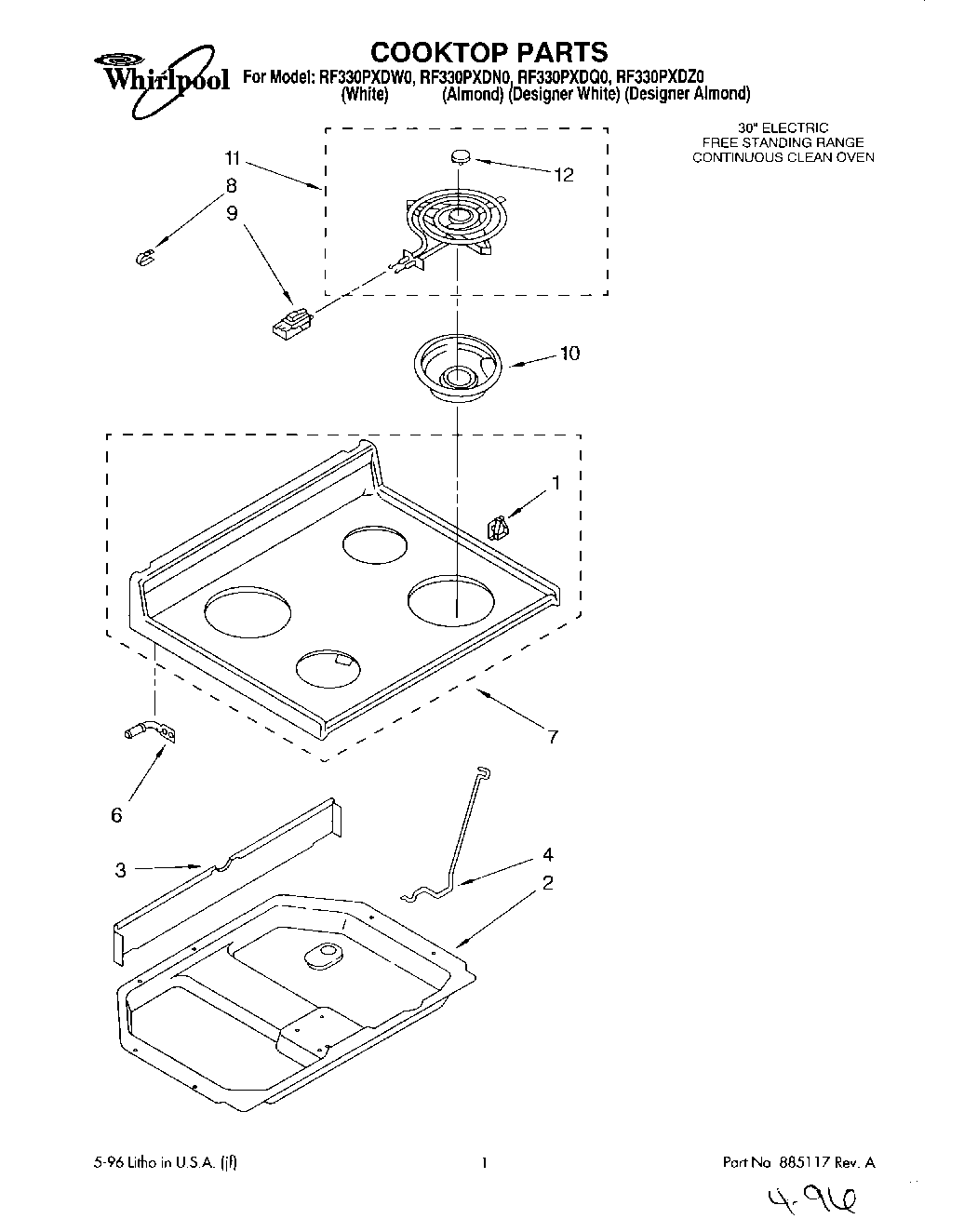

RF330PXDW0 01 – COOKTOP

RF330PXDW0 01 – COOKTOP

Written by

in

RF330PXDW0 01 – COOKTOP

Products

PositionProduct
1814103 Whirlpool Clip
1WP487887 Whirlpool Refrigerator Screw
1Nut (4)
2Box, Burner
3Shield, Wiring
4Rod, Cooktop
6Pin, Cooktop (2)
7Cooktop (White)
7Cooktop (Almond)
8WP308605 Whirlpool Refrigerator Clamp
8SCREW
9WP4332752 Whirlpool Clip
9WP313808 Whirlpool Screw
10WPW10196406 Whirlpool 6" Chrome Drip Bowl
10DRIP BOWL 8" W/HOLE CHROME
11WP660532 Whirlpool Oven Surface Element
11WP660533 Whirlpool Oven 8" Surface Element
12Medallion (4)
