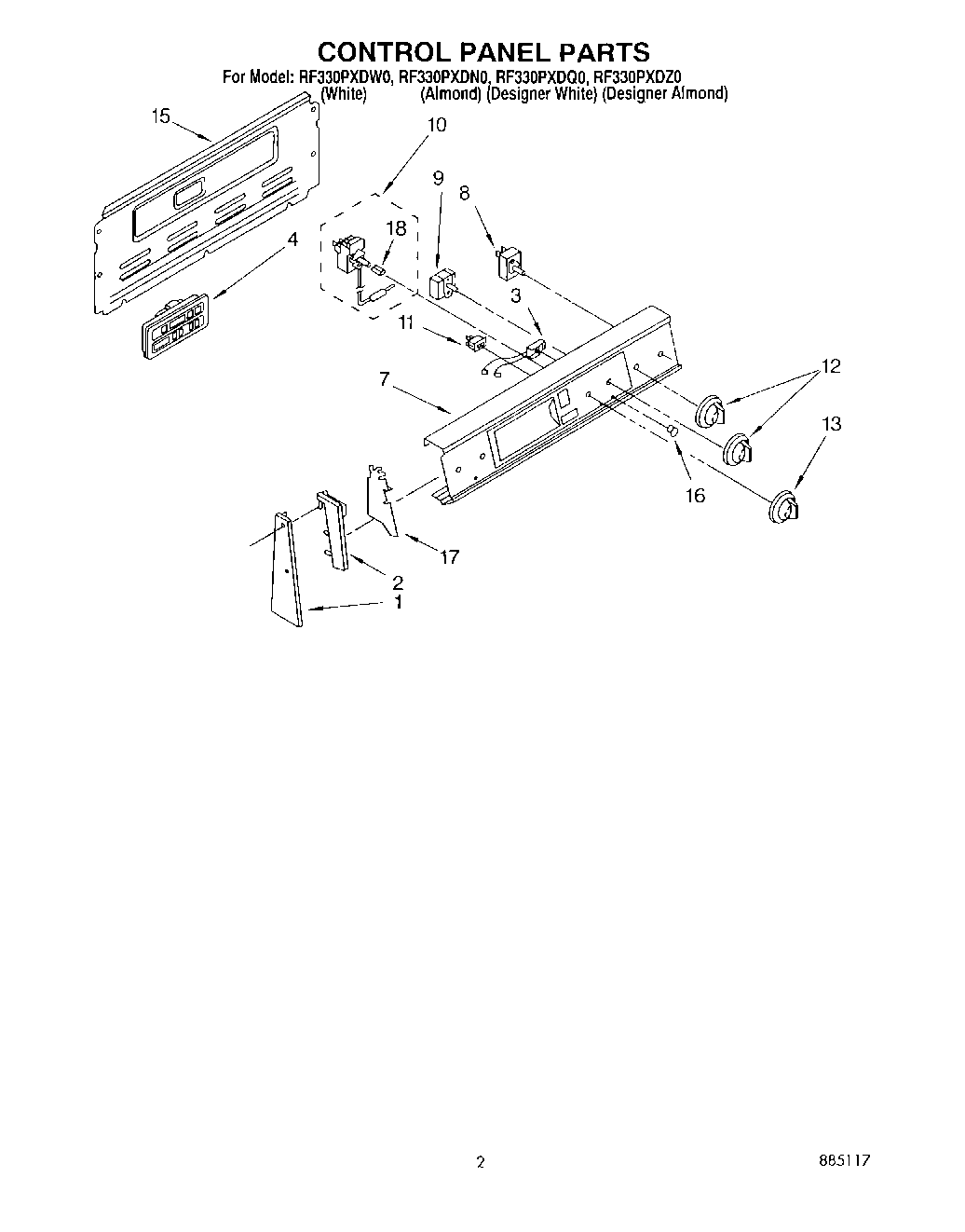

RF330PXDZ0 02 – CONTROL PANELadmin2025-04-26T11:09:24+00:00RF330PXDZ0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim R.H. (Designer White) |
| 1 | End Trim R.H. (Designer Almond) |
| 1 | End Trim (LH, Designer White) |
| 1 | End Trim (LH, Designer Almond) |
| 1 | End Trim |
| 1 | End Trim R.H. (Black) |
| 1 | End Trim (LH, Black) |
| 2 | End Cap L.H. (Designer White) |
| 2 | End Cap R.H. (Designer Almond) |
| 2 | End Caps |
| 2 | End Cap R.H. (Designer White) |
| 2 | End Cap L.H. (Black) |
| 2 | End Cap, R.H. (Black) |
| 2 | End Cap L.H. (Designer Almond) |
| 3 | Light, Indicator (250V) |
| 3 | Indicator Light (Surface Unit On) |
| 4 | Timer, Clock (Designer White) |
| 4 | Timer, Clock (Designer Almond) |
| 4 | Timer, Clock (Black) |
| 7 | Panel, Control (Screw, 8-18 x 5/8 (4)) |
| 7 | Panel, Control (Almond) |
| 7 | Control Panel (Designer White) |
| 7 | Panel, Control (White) |
| 7 | Control Panel (Designer Almond) |
| 7 | Control Panel (Black) |
| 8 | SWITCH-INF |
| 8 | WP3149404 Whirlpool Oven Surface Element Switch |
| 9 | Screw, 8-32 x 3/16 (2) |
| 9 | WP3188987 Whirlpool Oven Switch |
| 10 | Thermostat, 0ven |
| 10 | WP313808 Whirlpool Screw |
| 11 | Switch, Rocker (Designer Almond) |
| 11 | Switch, Rocker (White) |
| 11 | Switch, Rocker |
| 12 | WP3196232 Whirlpool Knob |
| 12 | WPL 3188723 |
| 12 | WP3196231 Whirlpool Knob |
| 13 | Knob, Thermostat (Designer Almond) |
| 13 | Knob, Thermostat (Designer White) |
| 13 | Knob, Thermostat (Black) |
| 15 | Rear Cover Contr |
| 15 | SCREW |
| 16 | Lens, Amber |
| 17 | WP965173 Whirlpool Dishwasher Screw |
| 17 | Shield (2) |
| 18 | WPL 3169525 |
