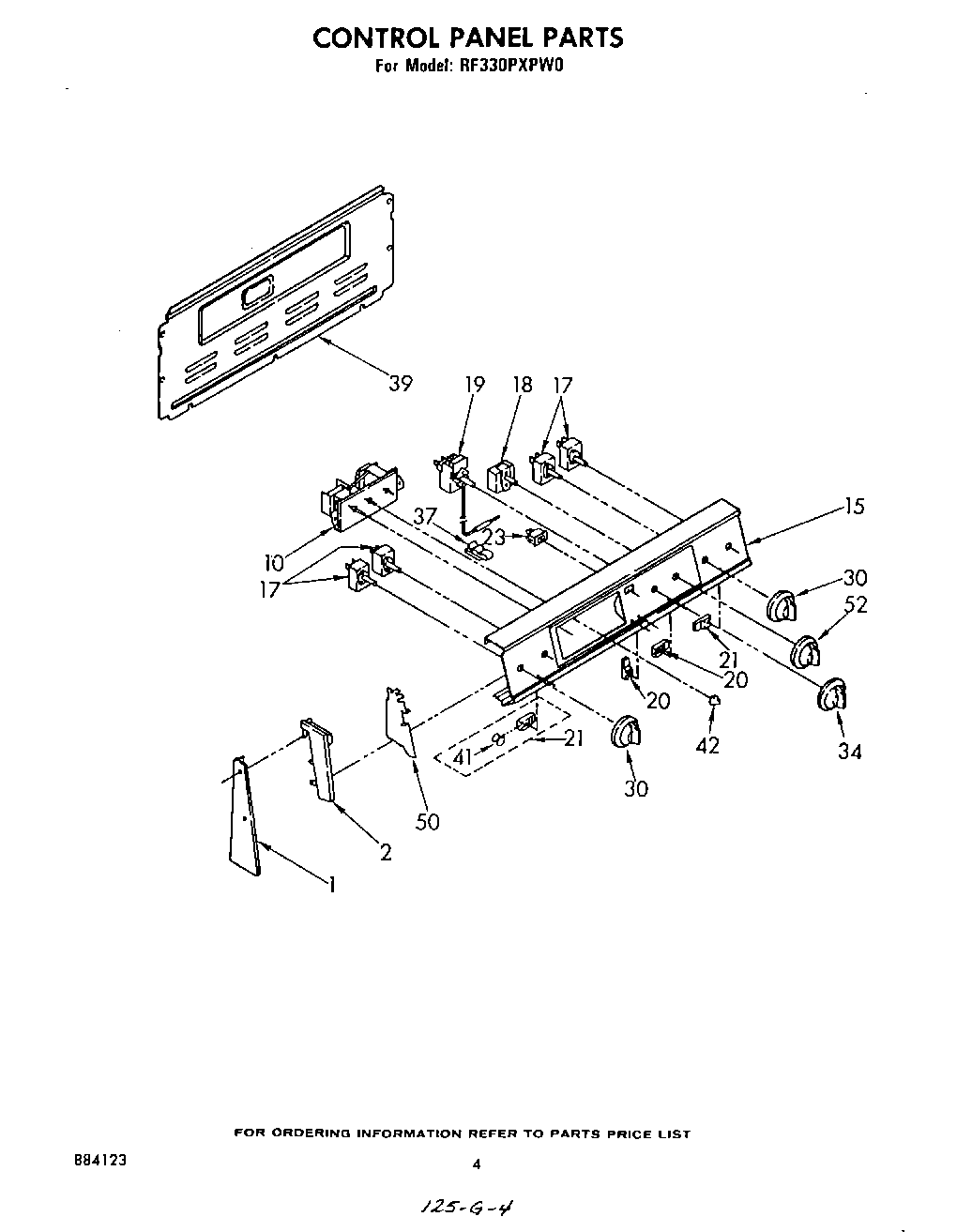

RF330PXPW0 03 – CONTROL PANEL

Products

PositionProduct
WP313808 Whirlpool Screw
1WP3390631 Whirlpool Screw
1Screw 10-32×1“
1Screw 10-32×7/16“
2End Cap L.H.
2End Cap R.H.
2Screw,
10Timer, Clock
15Panel, Control
15Washer
17WP3149404 Whirlpool Oven Surface Element Switch
17WP3149400 Whirlpool Oven Infinite Switch
18Switch, Selector
18WP486579 Whirlpool Air Conditioner Screw
19Thermostat, Oven
19Thermostat, Oven (Alt.)
19Thermostat, Oven (Alt.)
20Light, Indicator
21Light, Indicator (Surface Unit (2))
23WP4314961 Whirlpool Lite Switch
30Knob, Switch (4)
34Screw
34Knob, Switch
37Clip, Tube
39Harness-Conduit Asm.
39SCREW
41Lens, Amber
42WP3169181 Whirlpool Knob
50Shield (2)
50WP965173 Whirlpool Dishwasher Screw
52Knob, Selector
52WP688805 Whirlpool Spring Clip
