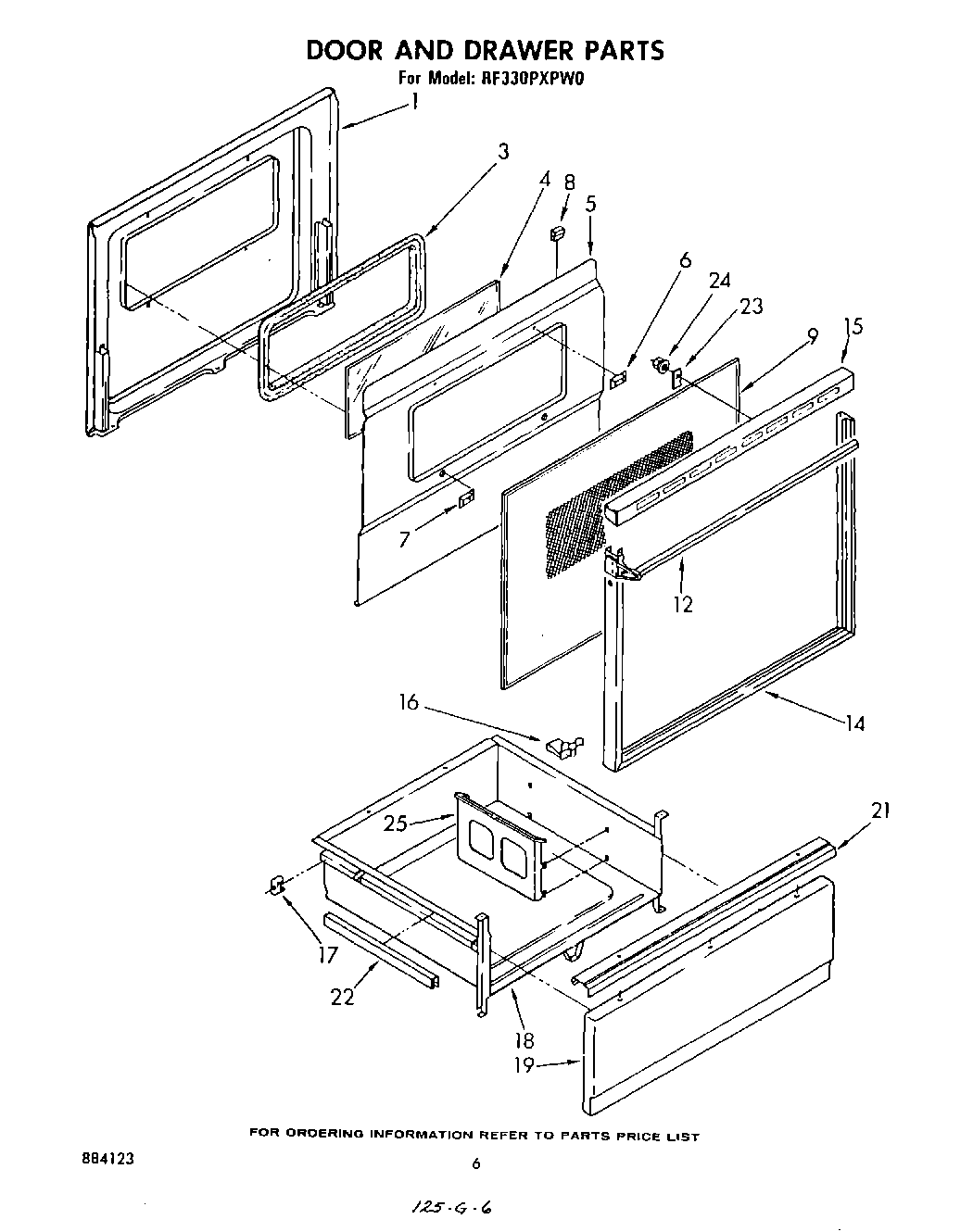

RF330PXPW0 04 – DOOR AND DRAWER

Products

Position	Product
1	liner, door
1	Screw (3)
3	seal, pano glass
4	glass, inner 30“
5	baffle, insulation
7	spacer, insulation baffle (4)
8	Channel, Rubber (4)
9	Glass, Outer
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
14	frame, door 30“
15	screw (3)
15	Top, Door Frame
16	clip, glass (10)
17	Screw, 10A x 1/2 (2) (Black)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Toast)
19	Panel, Drawer (Almond)
19	Panel Drawer (White)
19	Panel, Drawer (Platinum)
19	WP488787 Whirlpool Refrigerator Screw
21	WP488627 Whirlpool Refrigerator Screw
21	Handle, Drawer
22	Protector, Drawer (2)
23	hold down, glass (2)
24	WP90296 Whirlpool Clip
25	Rack, Literature
