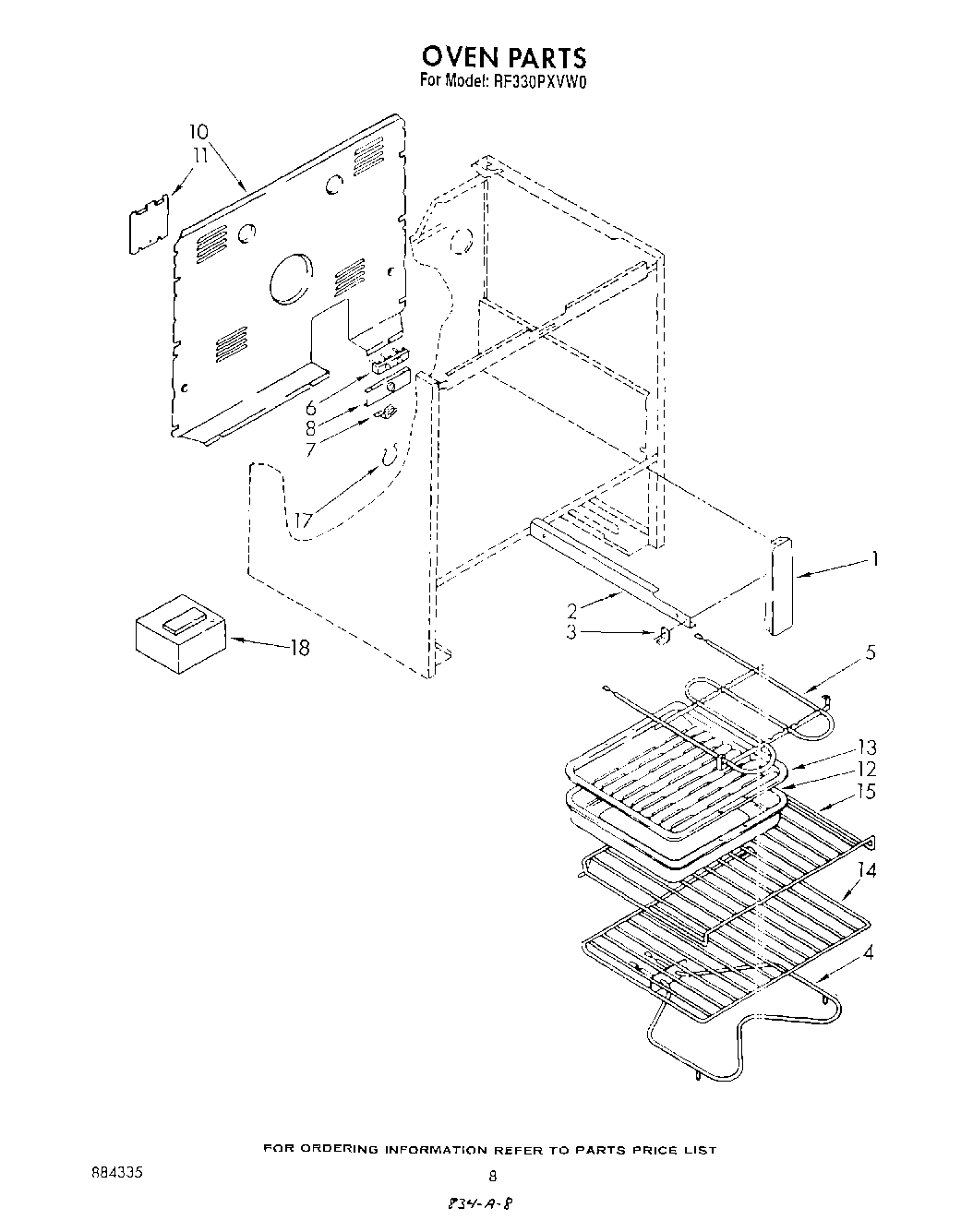

RF330PXVN0 07 – OVEN (CONTINUED) , LIT/OPTIONAL

Products

PositionProduct
Screw, 10-32 x 5/8 (4)
1Bracket, Mounting (2)
2Rail L.H. (Includes Illus. 3)
2Rail R.H. (Includes Illus. 3)
2Screw, 10A x 1/2 (2) (Black)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6WP8203546 Whirlpool Terminal Block
6Screw, (2) 10-16 x 1
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
1716515 Whirlpool Clip
188212471 Whirlpool Oven Paint
18Leveler (Thinner) (2oz.)
18Golden Harvest
18Golden Harvest (Uncut)
18Toast
18Enamel, New Avocado (1 Qt. Uncut)
18Enamel, Coffee (1 Qt. Uncut)
181
18Wire (14 Ga. 200 c Brown)
18WPL 282821
18Grease
1872113 Whirlpool Touch-Up Paint
18Block, Balance
18Rotisserie Kit (RCK 81)
18350956 Whirlpool Spray Assembly
1872017 Whirlpool Appliance Touch-Up Paint White
18799344 Whirlpool Refrigerator Paint
18WP72107 Whirlpool Touchup
18Almond (Uncut)
18350930 Whirlpool White Spray Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18350942 Whirlpool Spray Paint
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18511873 Whirlpool Refrigerator Paint
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18Paint, Spray 13 Oz. (Avocado)
18WPL 72112
18285006 Whirlpool Spray
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Paint, Spray (13 Oz.) (Platinum)
18Enamal, Toast (1 Qt. Uncut)
18Platinum (Uncut)
18WPL 799832
