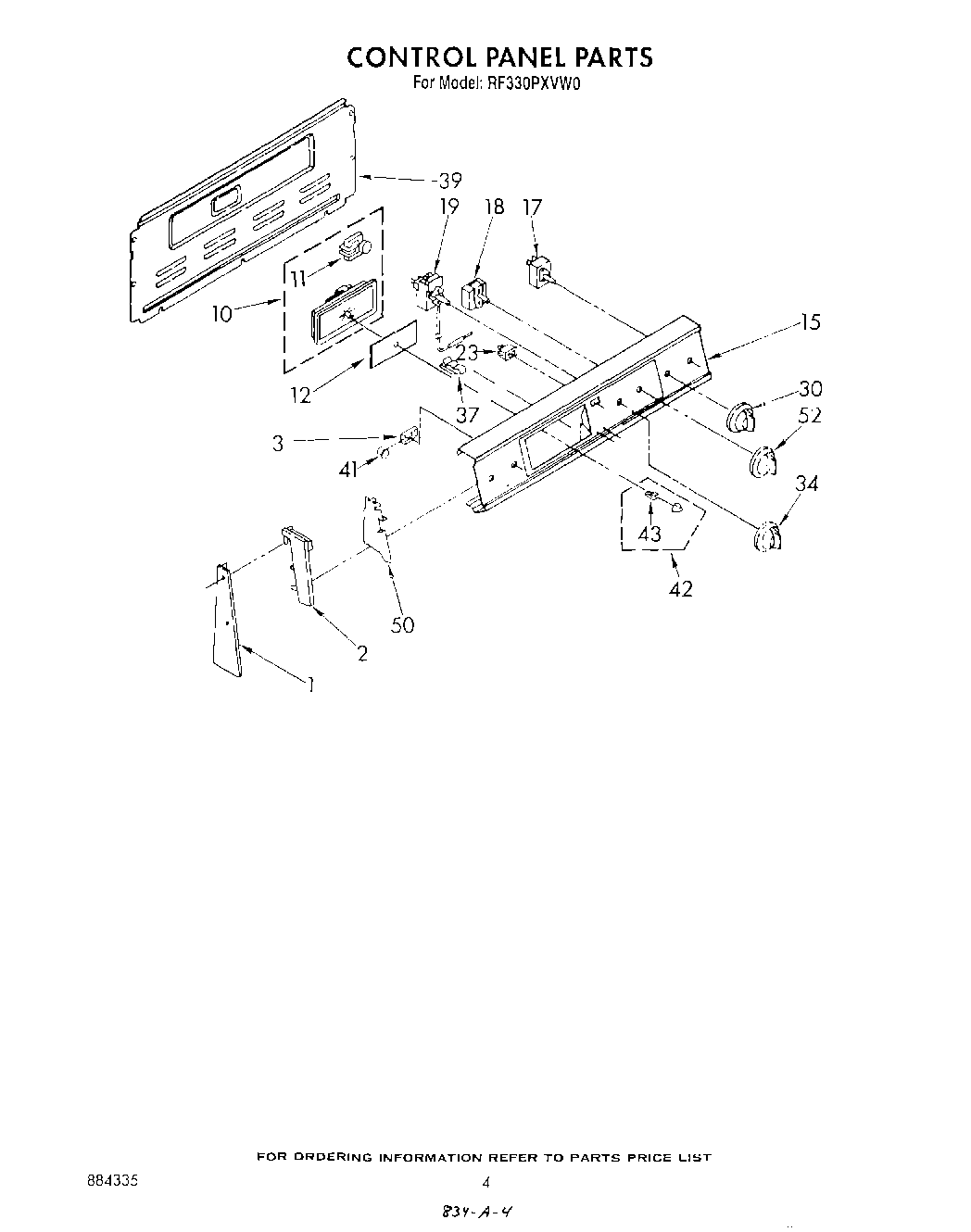

RF330PXVW0 04 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
1	WP3390631 Whirlpool Screw
2	Screw,
2	End Cap L.H.
2	End Cap R.H.
3	Light, Indicator (Surface Unit (2))
3	Light, Indicator (250V)
10	Timer, Clock
11	Motor, Timer
12	Glass, Timer
15	Washer
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
23	WP4314961 Whirlpool Lite Switch
30	Knob, Switch (4)
34	Screw
34	Knob, Switch
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	WP3169181 Whirlpool Knob
43	Spring (3)
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	Knob, Selector
52	WP688805 Whirlpool Spring Clip
