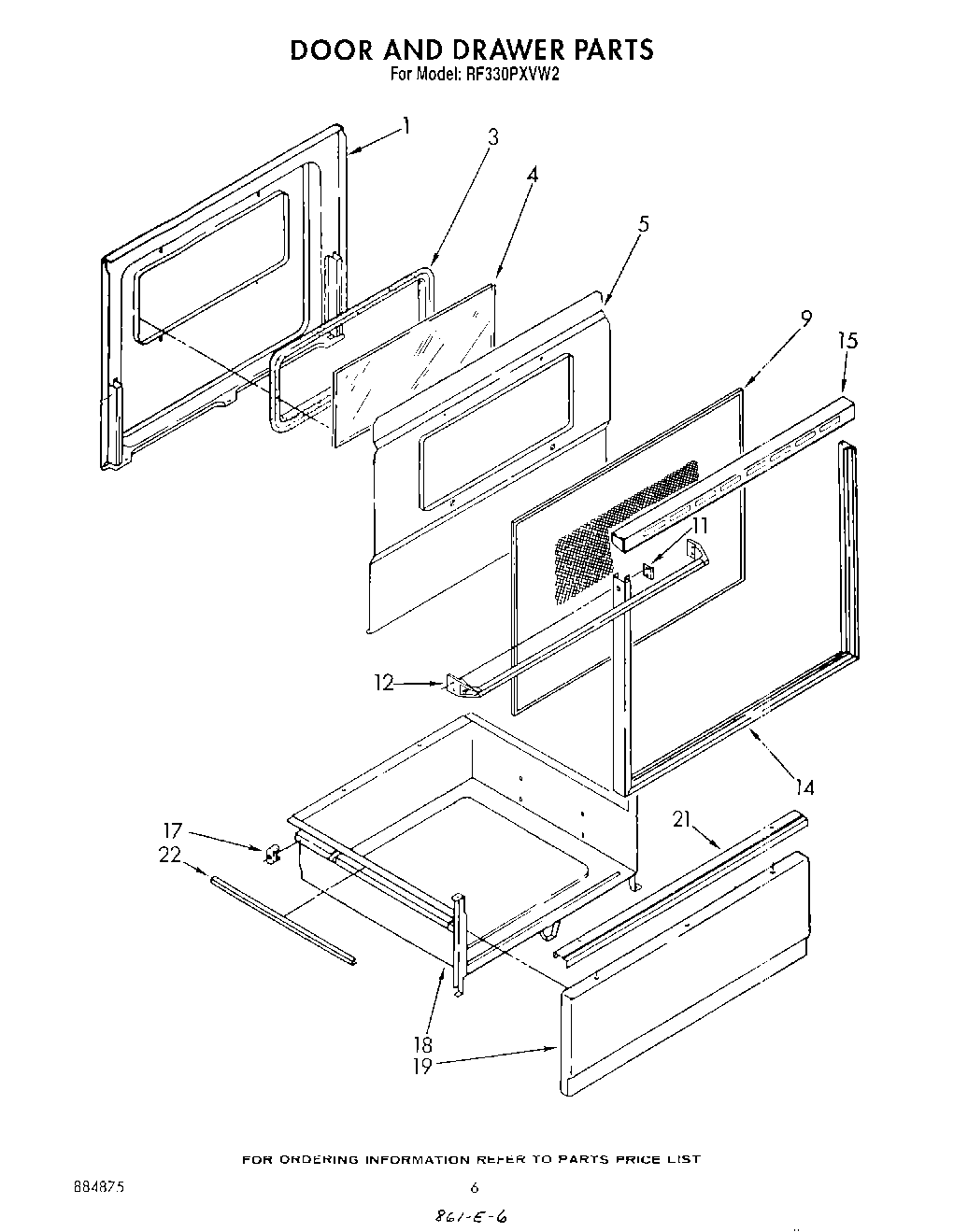

RF330PXVW2 06 – DOOR AND DRAWER

Products

Position	Product
	Repair Parts List
	Guide, Use & Care
	WPL LIT3148614
	Wiring Diagram
	WPL LIT3149507
1	Liner, Door
1	Screw (3)
1	Back Splash (Screw (4) 10AB x 1/2“)
3	Seal, Door
4	Glass, Inner
5	Retainer, Insulation
5	Screw
9	Glass, Panel (Black Model)
11	Clip, Mtg (2)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
14	Frame, Door
15	Top, Door (Black Model)
17	Glide, Rear (2)
17	Screw, 10A x 1/2 (2) (Black)
18	Drawer, Utility
19	WP488787 Whirlpool Refrigerator Screw
19	Panel, Drawer (Almond)
19	Panel Drawer (White)
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
22	Protector, Drawer (2)
