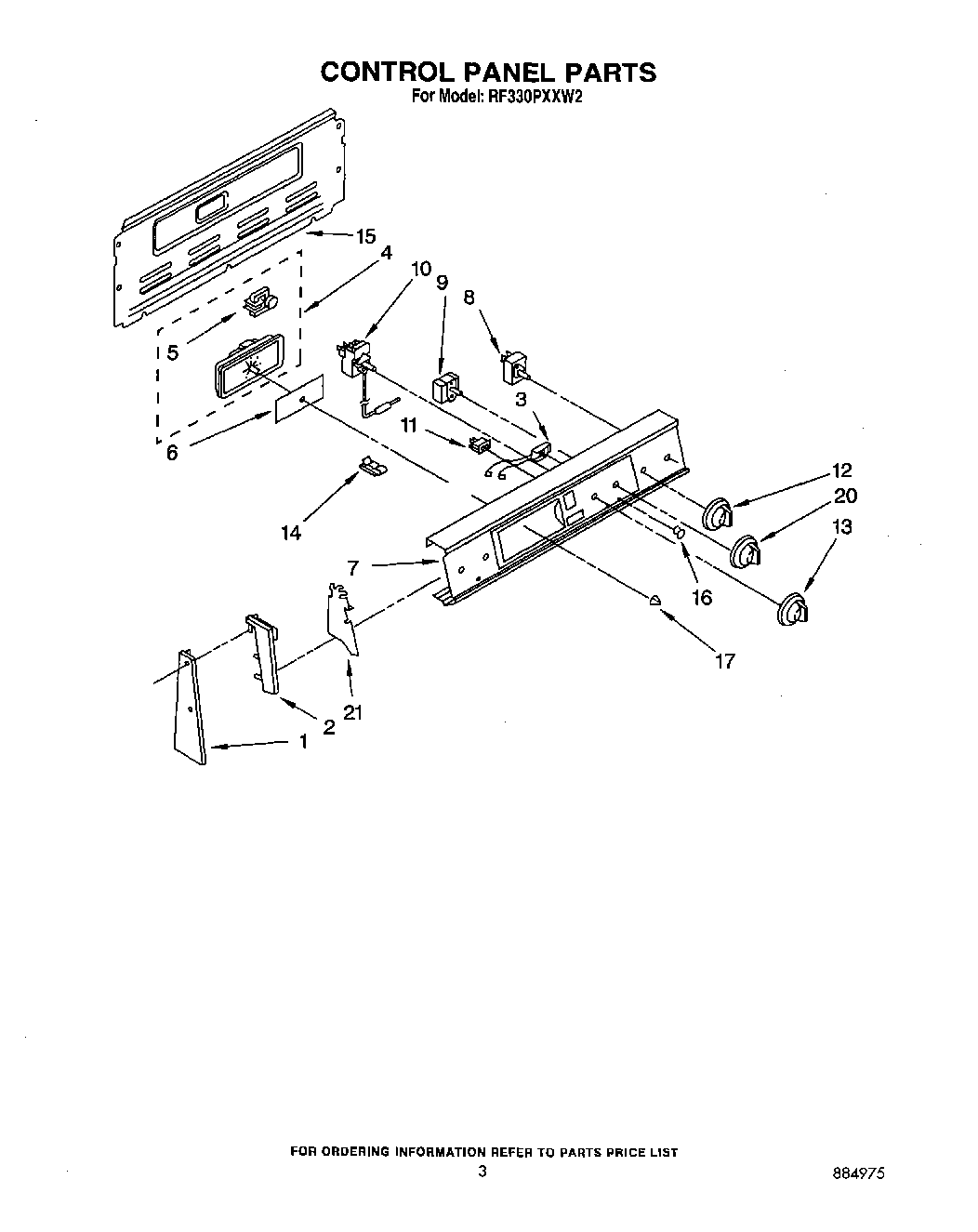

RF330PXXN2 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	Screw,
2	End Cap, R.H. (White/Almond/Gold)
2	(End Cap, L.H.) (White/Almond/Gold)
3	Light, Indicator (Includes No. 12) (Surface Unit On)
3	Light, Indicator (250V)
4	Timer, Clock
5	Motor, Timer
6	Glass, Timer
7	Panel, Control (Almond)
7	Panel, Control (White)
8	SWITCH-INF
8	WP3149404 Whirlpool Oven Surface Element Switch
9	WP486579 Whirlpool Air Conditioner Screw
9	Switch, Selector
10	Thermostat, Oven (Alt.)
10	Thermostat, Oven
10	Thermostat, Oven (Alt.)
10	WP313808 Whirlpool Screw
11	WP4314961 Whirlpool Lite Switch
12	WP3149983 Whirlpool Knob
13	Knob, Temperature
14	Clip, Tube
15	SCREW
15	Harness-Conduit Asm.
16	Lens, Amber
17	WP3169181 Whirlpool Knob
20	Knob, Selector
21	WP965173 Whirlpool Dishwasher Screw
21	Shield (2)
