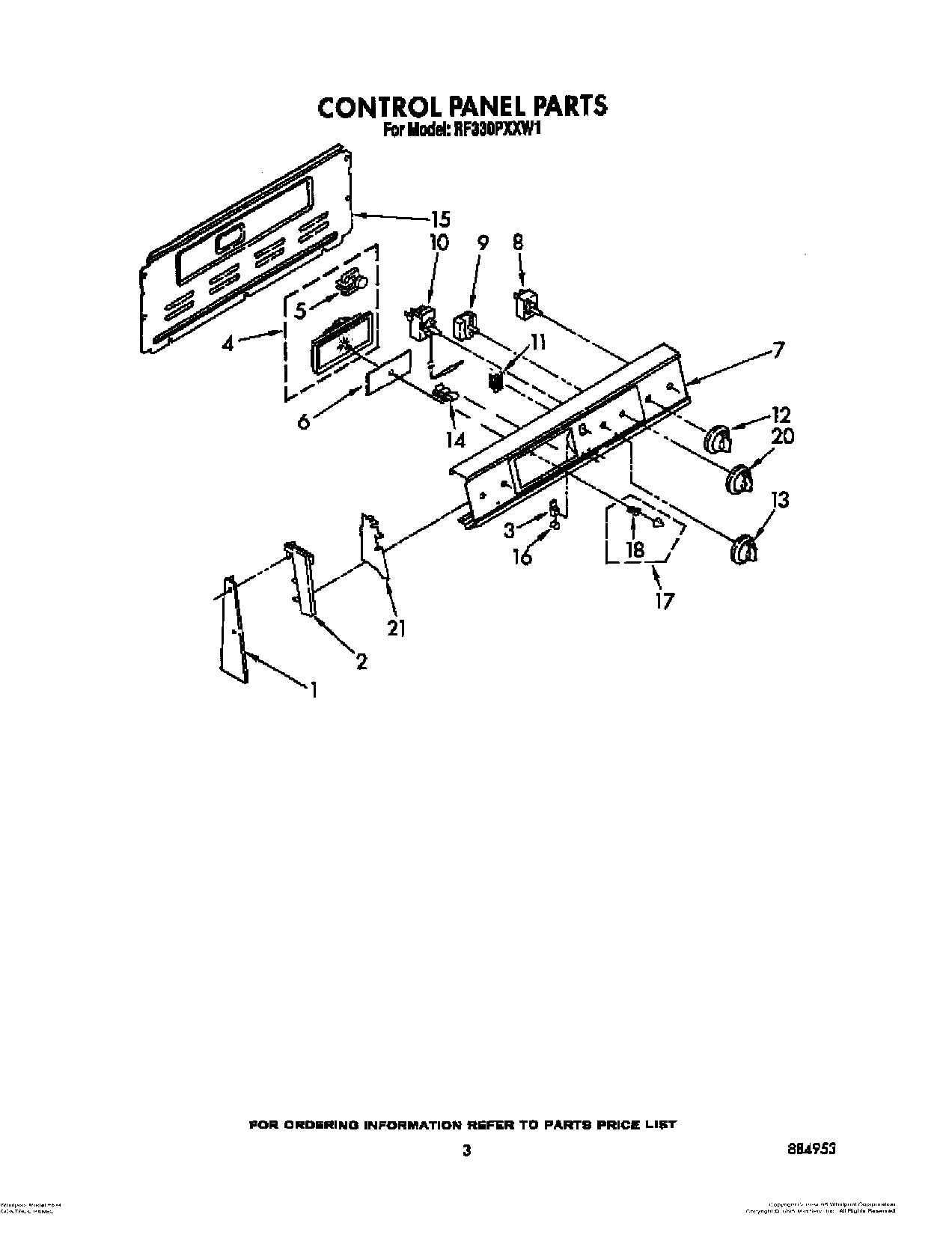

RF330PXXW1 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	(End Cap, L.H.) (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
3	Light, Indicator (Includes No. 12) (Surface Unit On)
3	Light, Indicator (250V)
4	Timer, Clock
5	Motor, Timer
6	Glass, Timer
7	Panel, Control (Almond)
7	Panel, Control (White)
8	WP3149404 Whirlpool Oven Surface Element Switch
8	SWITCH-INF
9	WP486579 Whirlpool Air Conditioner Screw
9	Switch, Selector
10	Thermostat, Oven (Alt.)
10	Thermostat, Oven (Alt.)
10	Thermostat, Oven
11	WP4314961 Whirlpool Lite Switch
12	WP3149983 Whirlpool Knob
13	Knob, Temperature
14	Clip, Tube
15	Harness-Conduit Asm.
15	SCREW
16	Lens, Amber
17	WP3169181 Whirlpool Knob
18	Spring (3)
20	Knob, Selector
21	WP965173 Whirlpool Dishwasher Screw
21	Shield (2)
