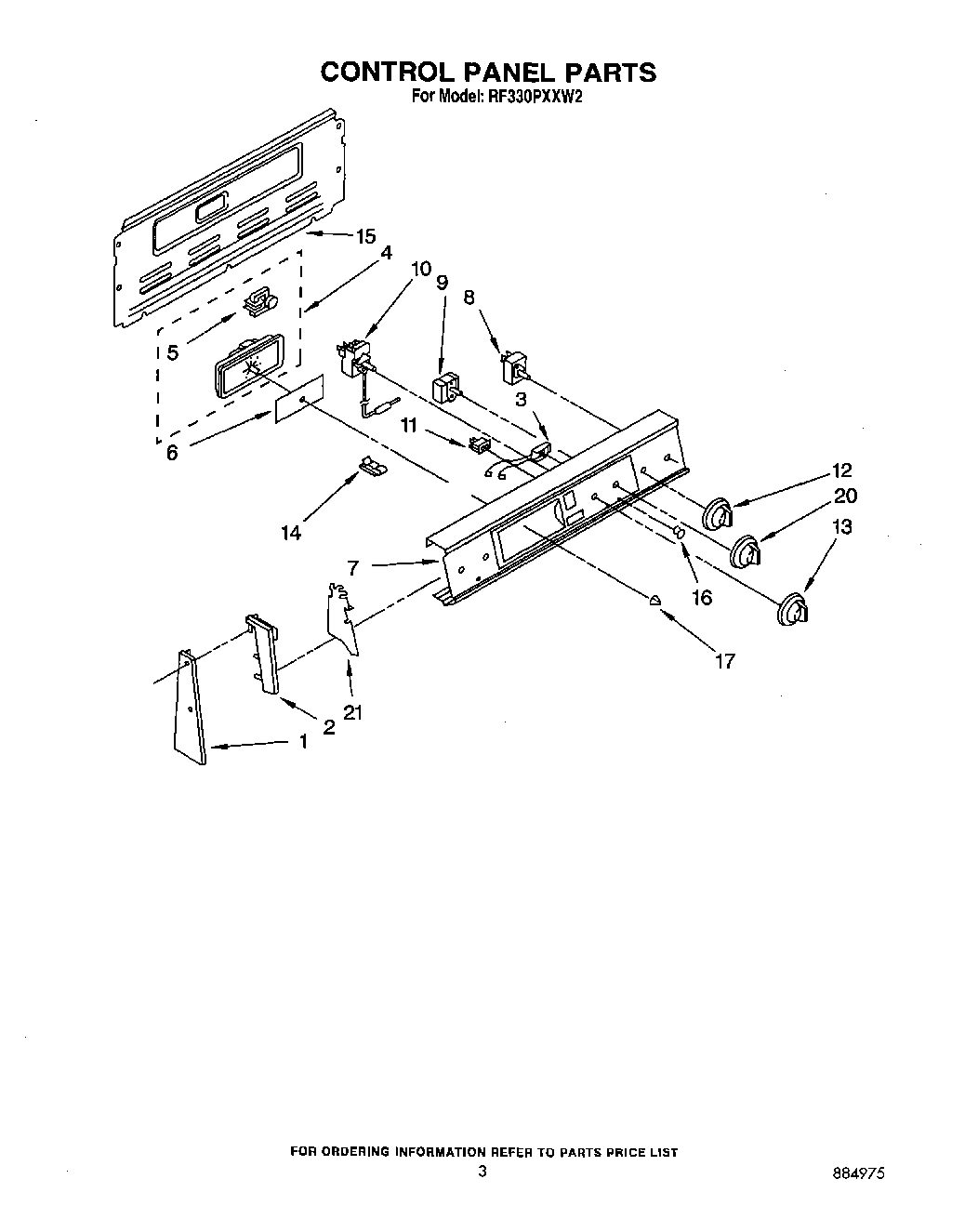

RF330PXXW2 03 – CONTROL PANELadmin2025-04-26T11:08:42+00:00RF330PXXW2 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | WP3390631 Whirlpool Screw |
| 1 | Screw 10-32x7/16`` |
| 1 | Screw 10-32x1`` |
| 2 | Screw, |
| 2 | End Cap, R.H. (White/Almond/Gold) |
| 2 | (End Cap, L.H.) (White/Almond/Gold) |
| 3 | Light, Indicator (Includes No. 12) (Surface Unit On) |
| 3 | Light, Indicator (250V) |
| 4 | Timer, Clock |
| 5 | Motor, Timer |
| 6 | Glass, Timer |
| 7 | Panel, Control (Almond) |
| 7 | Panel, Control (White) |
| 8 | SWITCH-INF |
| 8 | WP3149404 Whirlpool Oven Surface Element Switch |
| 9 | WP486579 Whirlpool Air Conditioner Screw |
| 9 | Switch, Selector |
| 10 | Thermostat, Oven (Alt.) |
| 10 | Thermostat, Oven |
| 10 | Thermostat, Oven (Alt.) |
| 10 | WP313808 Whirlpool Screw |
| 11 | WP4314961 Whirlpool Lite Switch |
| 12 | WP3149983 Whirlpool Knob |
| 13 | Knob, Temperature |
| 14 | Clip, Tube |
| 15 | SCREW |
| 15 | Harness-Conduit Asm. |
| 16 | Lens, Amber |
| 17 | WP3169181 Whirlpool Knob |
| 20 | Knob, Selector |
| 21 | WP965173 Whirlpool Dishwasher Screw |
| 21 | Shield (2) |
