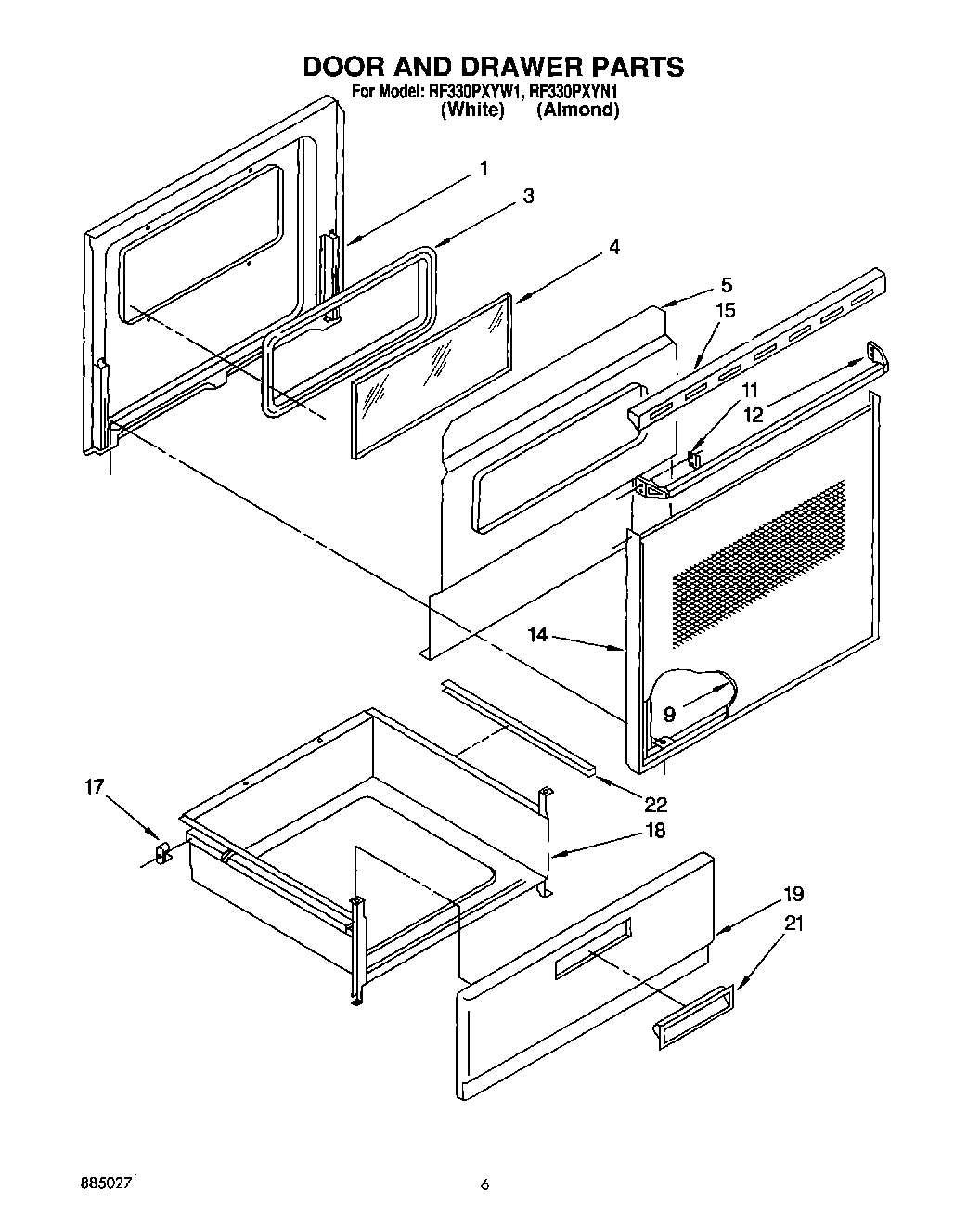

RF330PXYN1 05 – DOOR AND DRAWER, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Instructions, Installation
	Wiring Diagram
	Guide, Use & Care
1	Screw (3)
1	Liner, Door
3	Seal, Door
4	Glass, Clear
5	Screw
5	Retainer, Insulation
5	Screw, 10A x 1/2 (2) (Black)
9	Glass, Panel (Black Model)
11	Clip, Mtg (2)
12	Handle, Oven Door
14	Frame, Door
14	WP355515 Whirlpool Screw
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Top, Door (Black Model)
17	WP308685 Whirlpool Microwave Screw
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (Almond)
19	Panel, Drawer (White)
19	WP488787 Whirlpool Refrigerator Screw
21	Handle, Snap-In (White)
21	Handle, Snap-In (Almond)
22	Protector, Drawer (2)
