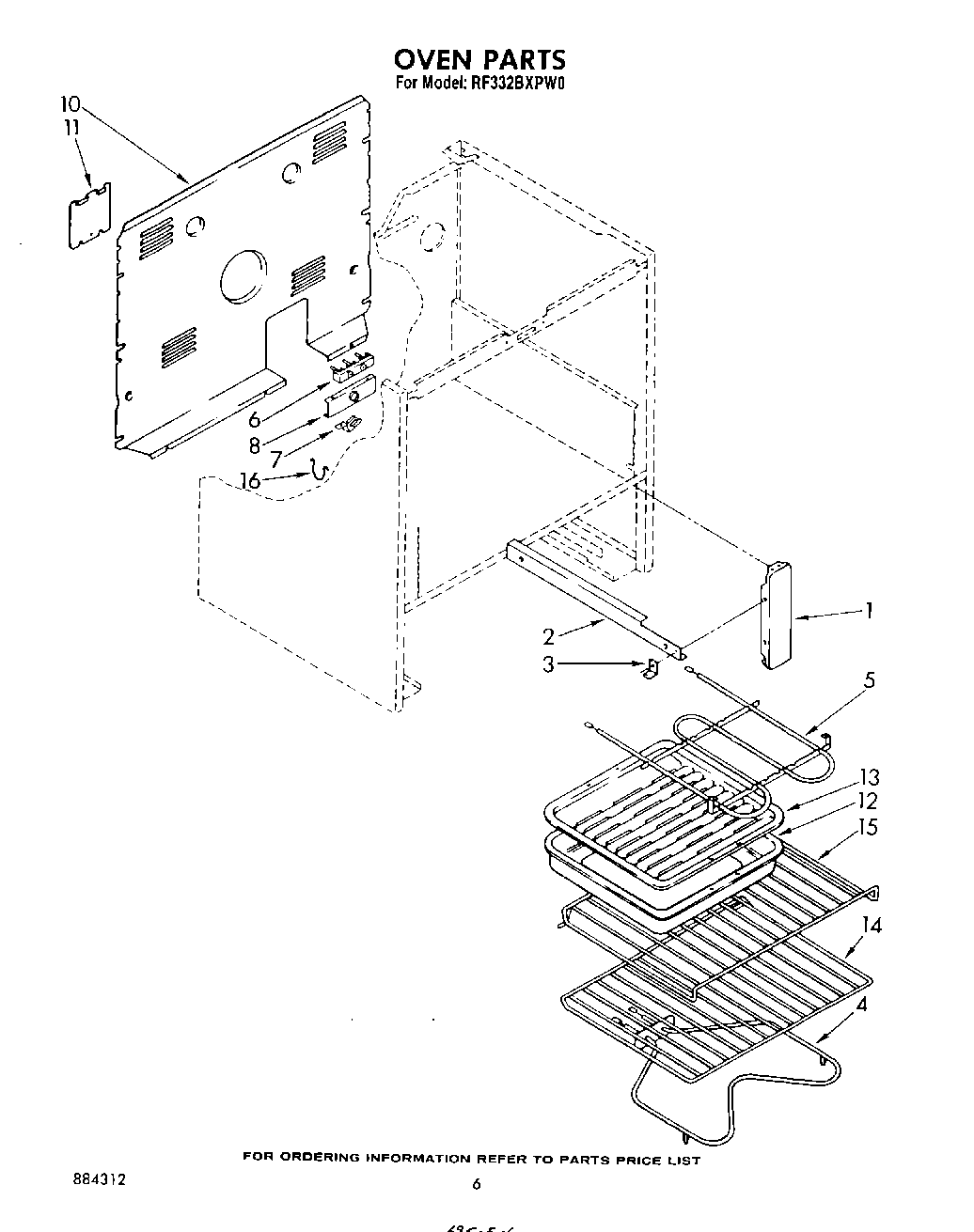

RF332BXPW0 06 – LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT884312
	WPL LIT3147425
	WPL LIT313473
	WPL 312808
	Screw, 10-32 x 5/8 (4)
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	350956 Whirlpool Spray Assembly
16	Grease
16	8212471 Whirlpool Oven Paint
16	Leveler (Thinner) (2oz.)
16	Platinum (Uncut)
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	Enamel, New Avocado (1 Qt. Uncut)
16	Enamel, Coffee (1 Qt. Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	72017 Whirlpool Appliance Touch-Up Paint White
16	799344 Whirlpool Refrigerator Paint
16	WP72107 Whirlpool Touchup
16	Almond (Uncut)
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	72113 Whirlpool Touch-Up Paint
16	Golden Harvest
16	350930 Whirlpool White Spray Paint
16	Golden Harvest (Uncut)
16	1
16	Wire (14 Ga. 200 c Brown)
16	WPW10208653 Whirlpool Insulation
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	16515 Whirlpool Clip
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	Wire, 25` Roll (Black 14 Ga.)
16	Wire, 25“ Roll (White 14 GA.)
16	WPL 799832
16	511873 Whirlpool Refrigerator Paint
16	18 Ga. 80~c Rating (Red)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	285006 Whirlpool Spray
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	Wire, 25` Roll (Red 14 Ga.)
