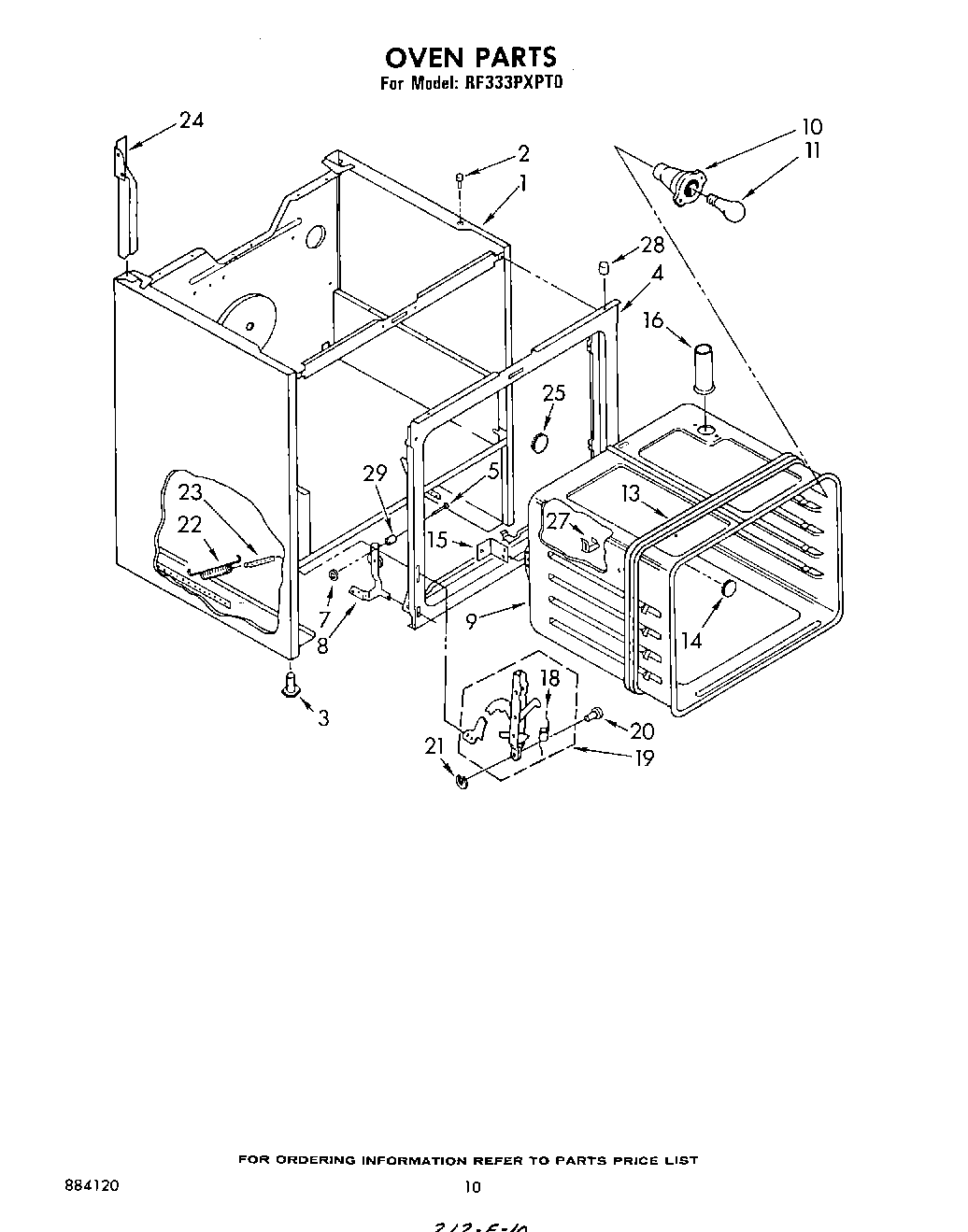

RF333PXPT0 06 – SECTION

Products

Position	Product
	Screw (10-12 x .875)
1	Main Chassis (Platinum)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	oven (30“ continous clean)
9	Screw (3)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
13	Heat Seal
14	Plug Button
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
25	Plug Button
27	98005642 Whirlpool Clip
28	Screw, 8-32 x 5/16 (2)
28	locator, cooktop
29	Snubber, Door (2)
